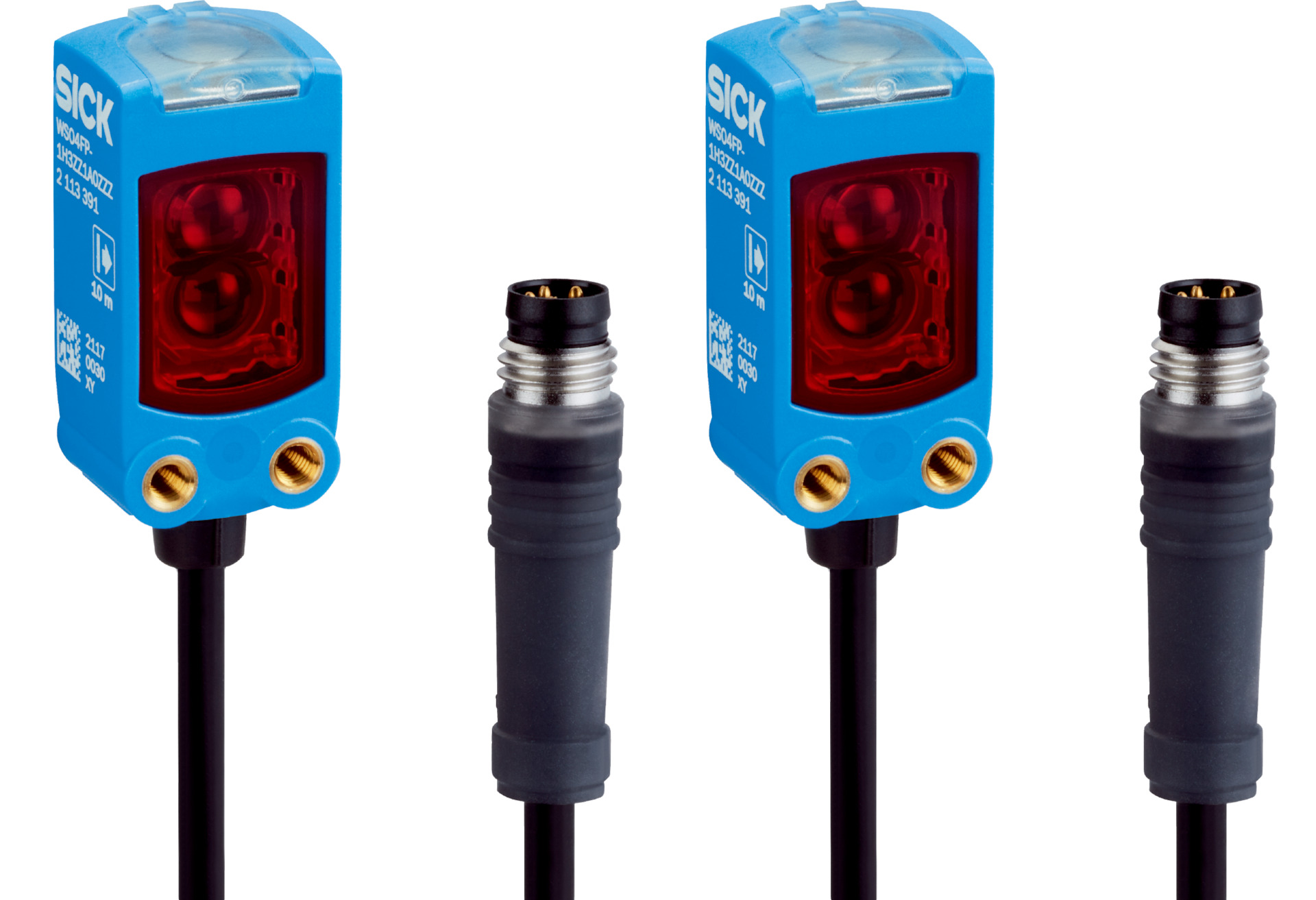

Through-Beam Photoelectric Sensor | 0-2m Sensing Range | IP66/IP67 Protection | Fast Response Time | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of 0 to 2 meters and a visible red PinPoint LED light source. With an impressive response time of ≤ 500 µs and robust IP66/IP67 protection, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 m to 2 m, recommended 0 m to 1.4 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Light spot size: 22 mm x 300 mm at 1000 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output type: Push-pull PNP/NPN, dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red PinPoint LED light source with 635 nm wavelength
- Line-shaped light spot of 22 mm x 300 mm at 1000 mm distance
- High alignment accuracy with BluePilot LED alignment aid
- Robust plastic VISTAL® housing with IP66/IP67 protection
- Fast response time of ≤ 500 µs and switching frequency up to 1000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 1000 Hz
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with environmental standards including China-RoHS
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

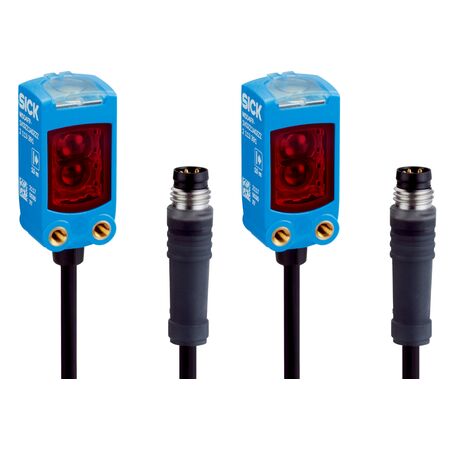

The SICK WSE4FP-31311100ZZZ Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
