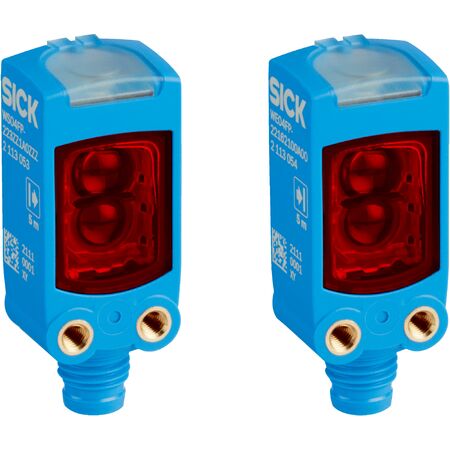

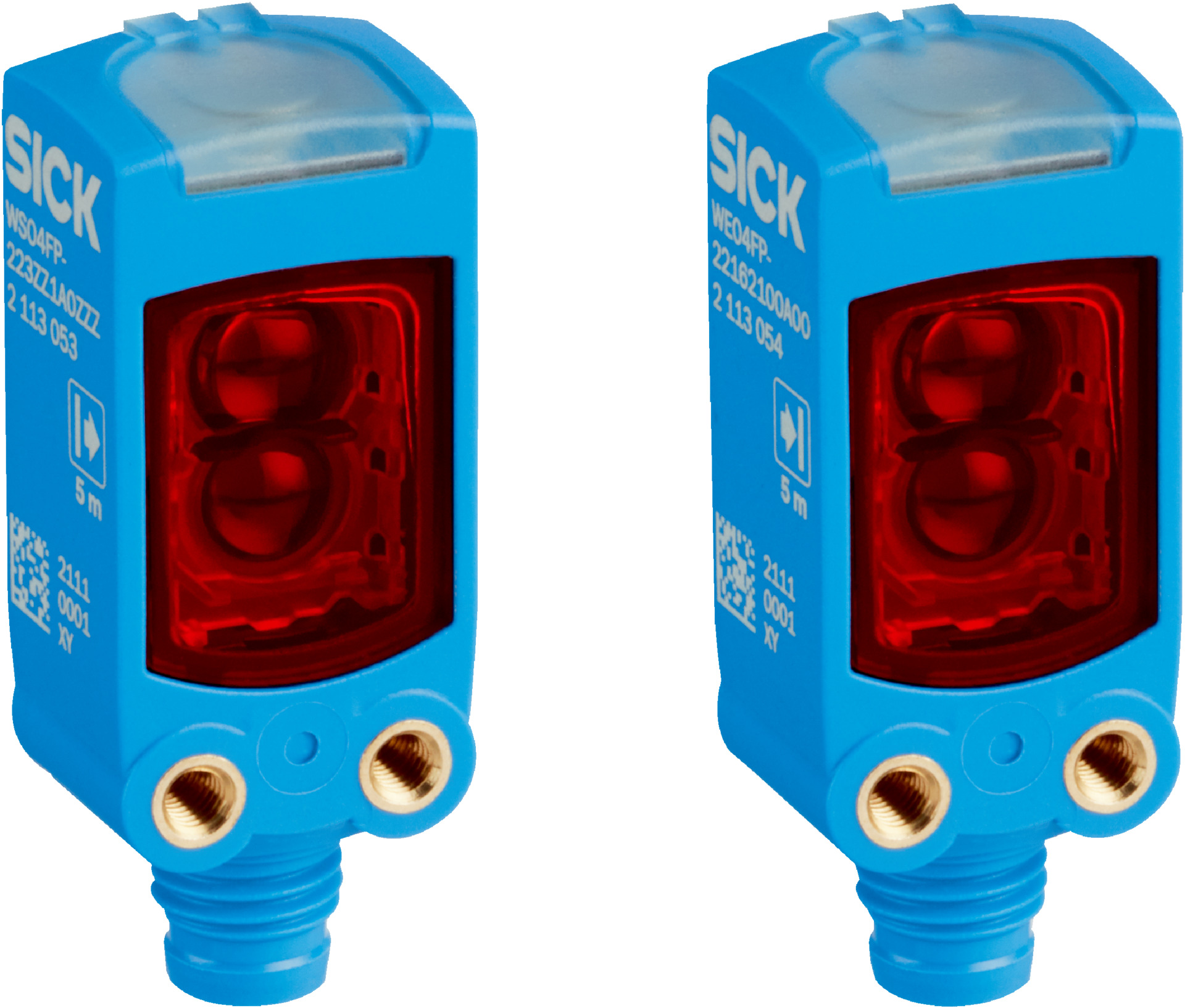

Through-Beam Photoelectric Sensor | 1.5m Sensing Range | IP66/IP67 Rated | 100,000 Hour LED Life | by SICK
The WSE4FP-21311700ZZZ through-beam photoelectric sensor is designed for industrial automation, offering a sensing range of up to 1.5 meters with a recommended range of 0 to 1.2 meters. Featuring a PinPoint LED light source with a 635 nm wavelength and an impressive LED service life of 100,000 hours, this sensor ensures reliable performance in harsh environments, making it ideal for safety and monitoring applications in manufacturing and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 to 1.5 m (recommended 0 to 1.2 m)
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED service life: 100,000 hours at 25°C
- Digital output: 1 push-pull PNP/NPN, dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection: Reverse polarity, overcurrent, short-circuit
- Enclosure rating: IP66, IP67
- Operating temperature: -40°C to +60°C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 1.5 meters with recommended range 0 to 1.2 meters
- PinPoint LED light source with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- Push-pull PNP/NPN digital output with dark switching
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- IP66 and IP67 rated enclosure for harsh environments
- Operating temperature range from -40°C to +60°C
- Shock resistance up to 30 g and vibration resistance from 10 Hz to 1000 Hz
- Connector M8, 3-pin for easy installation
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and secure connection using the M8 3-pin connector.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WSE4FP-21311700ZZZ through-beam photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety applications.
