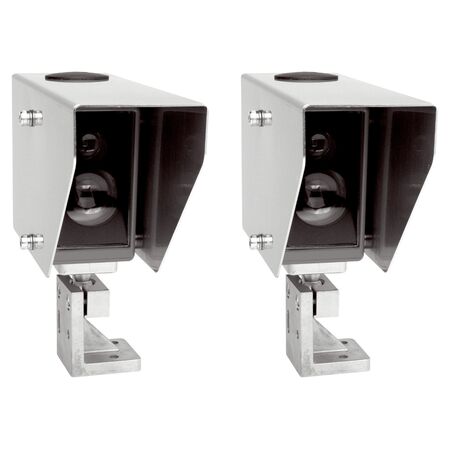

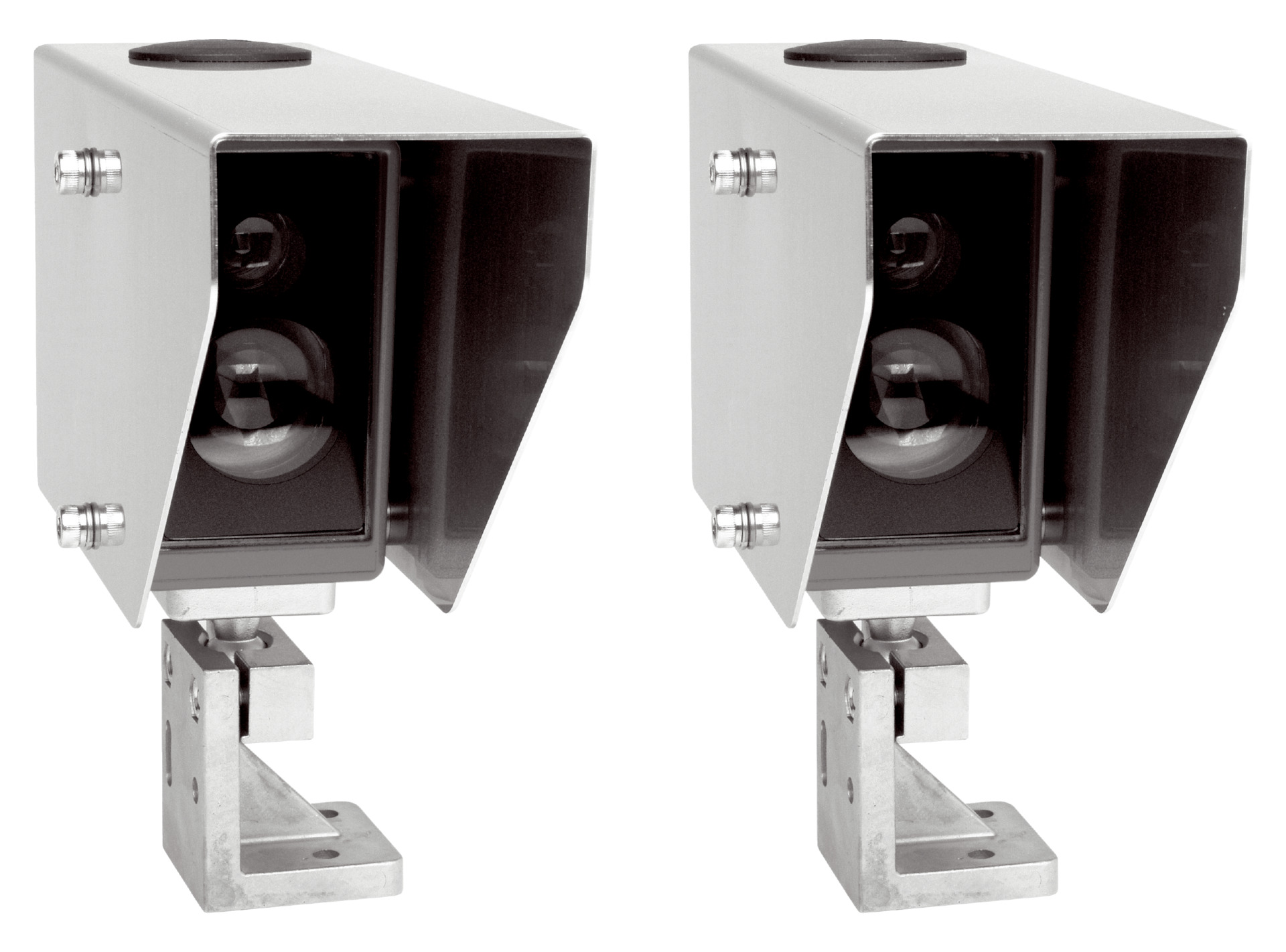

Through-Beam Photoelectric Sensor HISIC450-P250 | 100m Sensing Range | IP67 Rated | Fast Response Time | by SICK
The HISIC450-P250 Through-beam Photoelectric Sensor is designed for industrial automation and overheight detection, featuring a maximum sensing range of up to 100 meters and an IP67 rated enclosure for dust and water protection. With a fast response time of ≤ 500 µs and robust stainless steel mounting brackets, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor HISIC450-P250 | 100m Sensing Range | IP67 Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1041348
Alternatively Known As: Through-beam photoelectric sensor, Overheight sensor, Long-range photoelectric sensor
Technical Specifications
- Supply voltage: 10 V DC to 60 V DC
- Current consumption: ≤ 250 mA
- Output type: PNP digital output
- Maximum output current: 200 mA
- Response time: ≤ 500 µs
- Enclosure rating: IP67
- Operating temperature range: -25 °C to +55 °C
- Includes 2 senders, 2 receivers, 4 ball joint brackets (stainless steel 1.4581), and 4 weather hoods (stainless steel 1.4571, powder-coated)
- Dimensions (H x L x W): 126mm x 105mm x 60mm
- Weight: 1.2 kg
Key Features
- Through-beam photoelectric sensing principle
- Maximum sensing range up to 100 meters
- Robust stainless steel mounting brackets and weather hoods
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 500 µs
- Short-circuit and reverse polarity protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct alignment and secure mounting for optimal sensor performance.
Applications
- Industrial automation for object detection
- Overheight detection in logistics and manufacturing
- Long-range sensing applications up to 100 meters
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel components reduce replacement frequency and waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty of 1 year against defects.
Available Now
The SICK HISIC450-P250 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and overheight detection applications.
