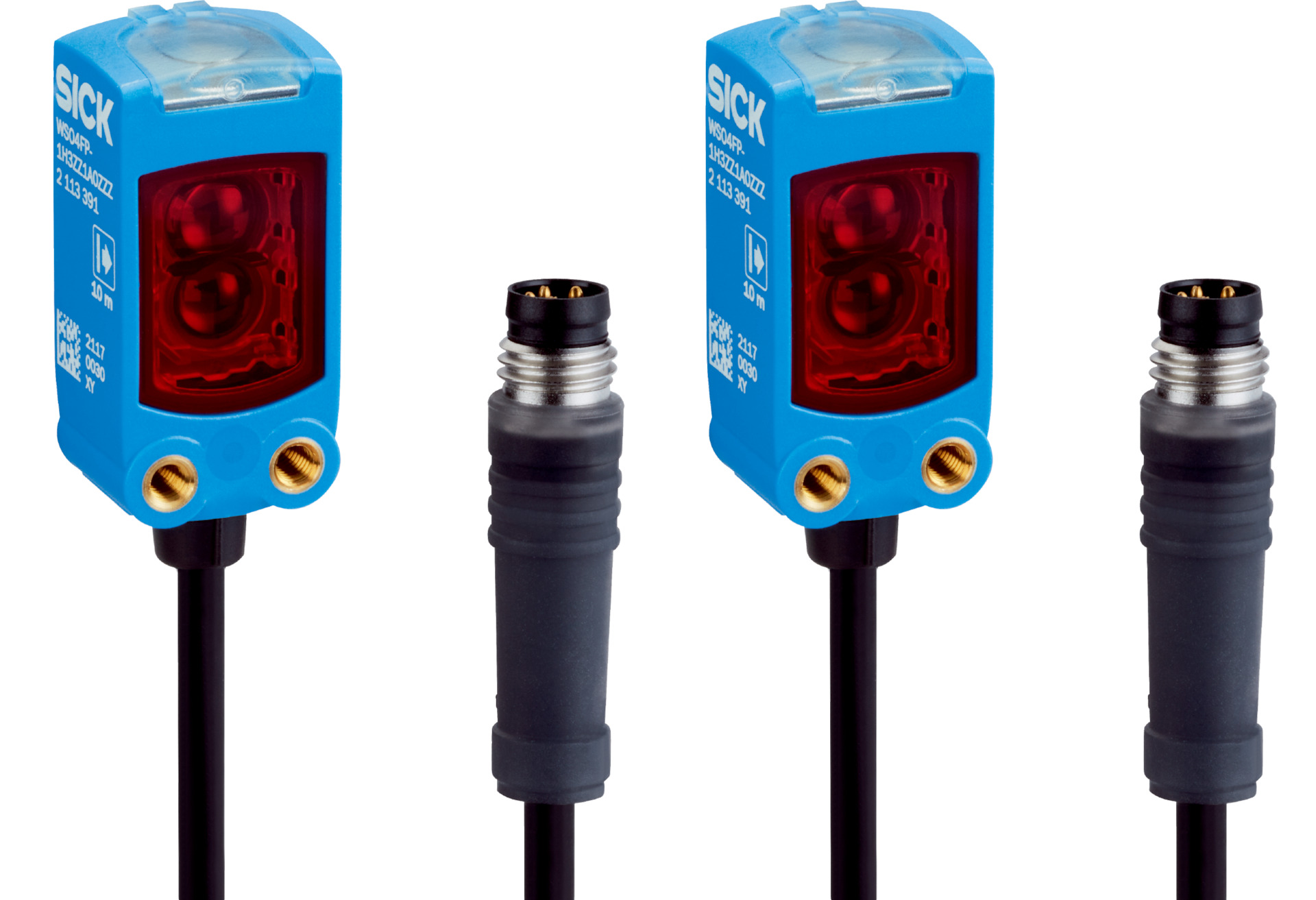

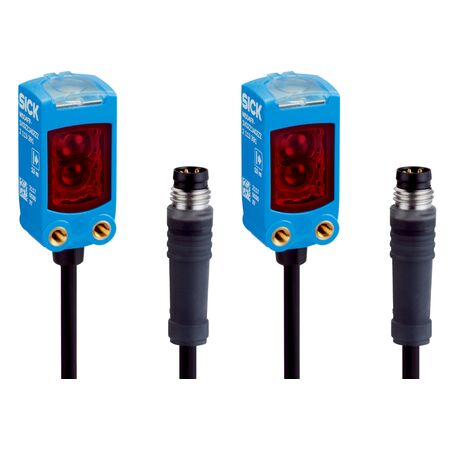

Through-Beam Photoelectric Sensor WSE4FP-31311100ZZZ | 10m Sensing Range | IP66 & IP67 Rated | Fast Response Time | by SICK
The WSE4FP-31311100ZZZ Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 10 meters and a fast response time of ≤ 500 µs. With its robust IP66 and IP67 rated housing, this sensor ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 m to 10 m, recommended 0 m to 7.5 m
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: Ø 40 mm at 1,000 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Output type: Push-pull PNP/NPN, dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Cable: 3-pin M8 connector, 110 mm length
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with sensing range up to 10 m
- PinPoint LED visible red light with point-shaped light spot
- High alignment accuracy with BluePilot alignment aid
- Robust plastic VISTAL® housing with IP66 and IP67 protection
- Fast response time of ≤ 500 µs and switching frequency of 1,000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 1,000 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper alignment and secure mounting.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 20 mA)
- Durable design minimizes environmental impact through extended product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE4FP-31311100ZZZ Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
