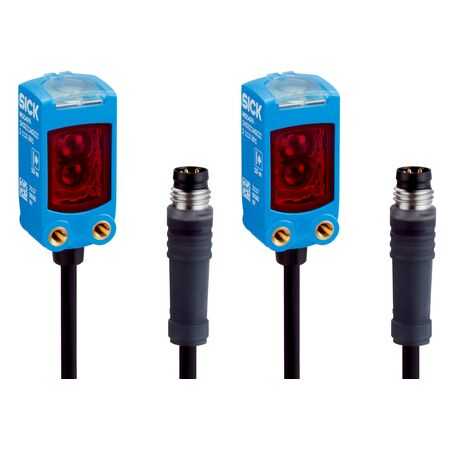

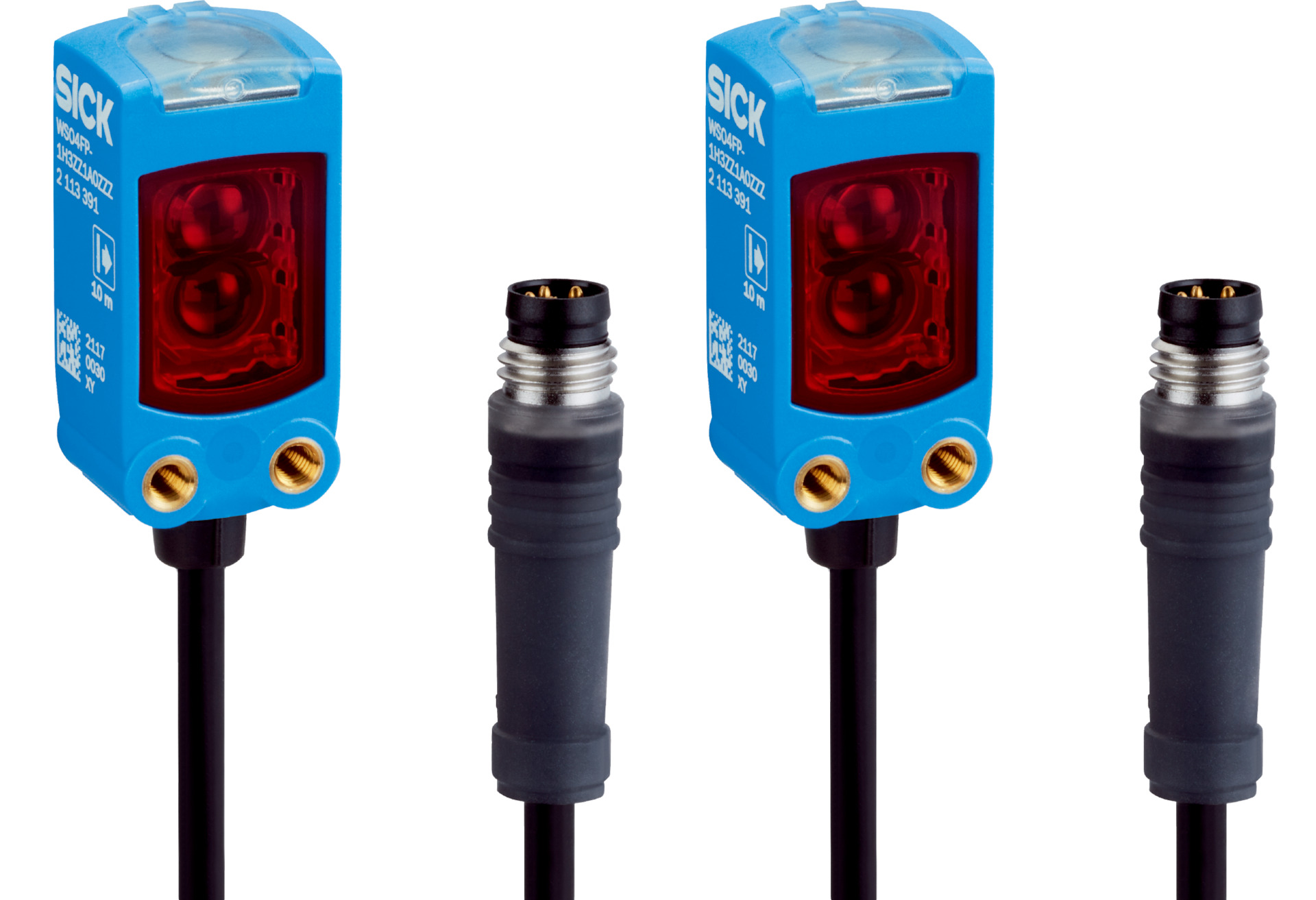

Through-Beam Photoelectric Sensor WSE4FP-32162100A00 | 10m Sensing Range | IP66/IP67 Protection | by SICK
The Through-Beam Photoelectric Sensor WSE4FP-32162100A00 is designed for industrial automation, offering a sensing range of up to 10 meters and a robust IP66/IP67 rated housing. With a fast response time of ≤ 500 µs and a long LED service life of 100,000 hours, this sensor is perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 to 10 m (recommended 0 to 7.5 m)
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED service life: 100,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Digital outputs: 2 push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40°C to +60°C
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Housing material: Plastic VISTAL®
- Connection: Cable with M8 male connector, 4-pin, 110 mm
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 10 meters with recommended range 0 to 7.5 meters
- PinPoint LED visible red light with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- IO-Link V1.1 communication for sensor parameter configuration
- Robust plastic VISTAL® housing with IP66/IP67 protection
- Operating temperature range from -40°C to +60°C
- Fast response time ≤ 500 µs and switching frequency up to 1000 Hz
- Multiple LED indicators for alignment, power, and object detection status
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, wiring, and configuration using IO-Link for optimal sensor performance and safety.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
- Robust design reduces environmental impact from frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WSE4FP-32162100A00 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
