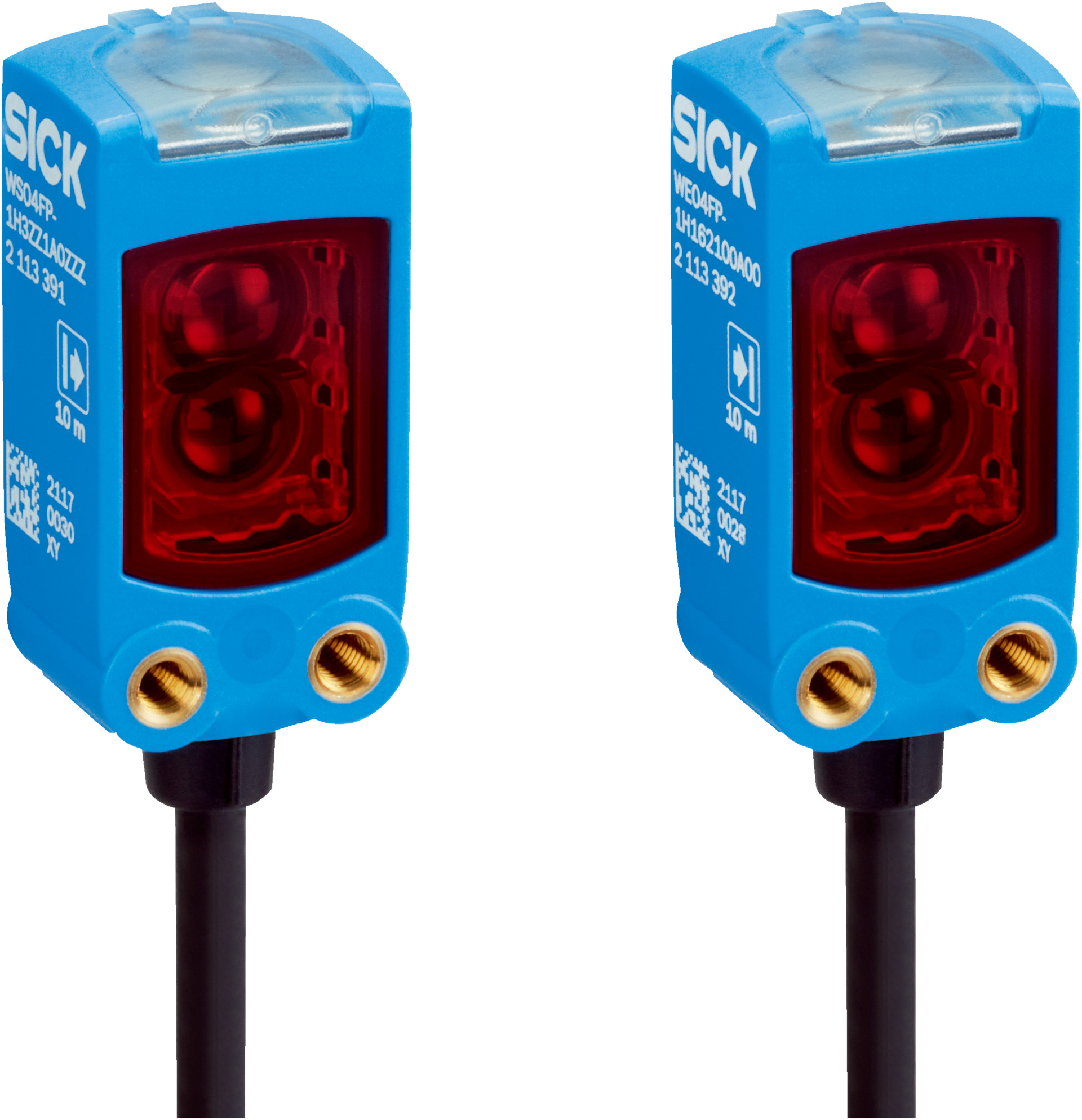

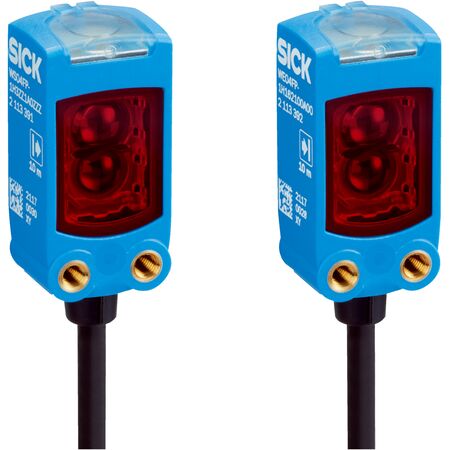

Through-Beam Photoelectric Sensor WSE4FP-1H162100A00 | 10m Sensing Range | IP66/IP67 Rated | by SICK
The WSE4FP-1H162100A00 through-beam photoelectric sensor is designed for industrial automation, offering a sensing range of up to 10 meters and a PinPoint LED light source with a 635 nm wavelength. With robust IP66 and IP67 ratings, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 10 m (recommended 0 m to 7.5 m)
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Digital outputs: 2 push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40°C to +60°C
- Cable: 4-wire, 2 m length, PVC
- Housing material: Plastic VISTAL®
- Display LEDs: Blue (alignment), Green (power/IO-Link), Yellow (object detection status)
- Communication: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with a sensing range up to 10 m
- PinPoint LED visible red light with a wavelength of 635 nm
- High LED service life of 100,000 hours at 25°C
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- Robust plastic VISTAL® housing with IP66 and IP67 protection ratings
- Operating temperature range from -40°C to +60°C
- Short response time of ≤ 500 µs and switching frequency up to 1,000 Hz
- Multiple LED indicators for alignment, operation, and object detection status
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, wiring, and configuration via IO-Link for optimal sensor performance and safety.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE4FP-1H162100A00 through-beam photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety applications.
