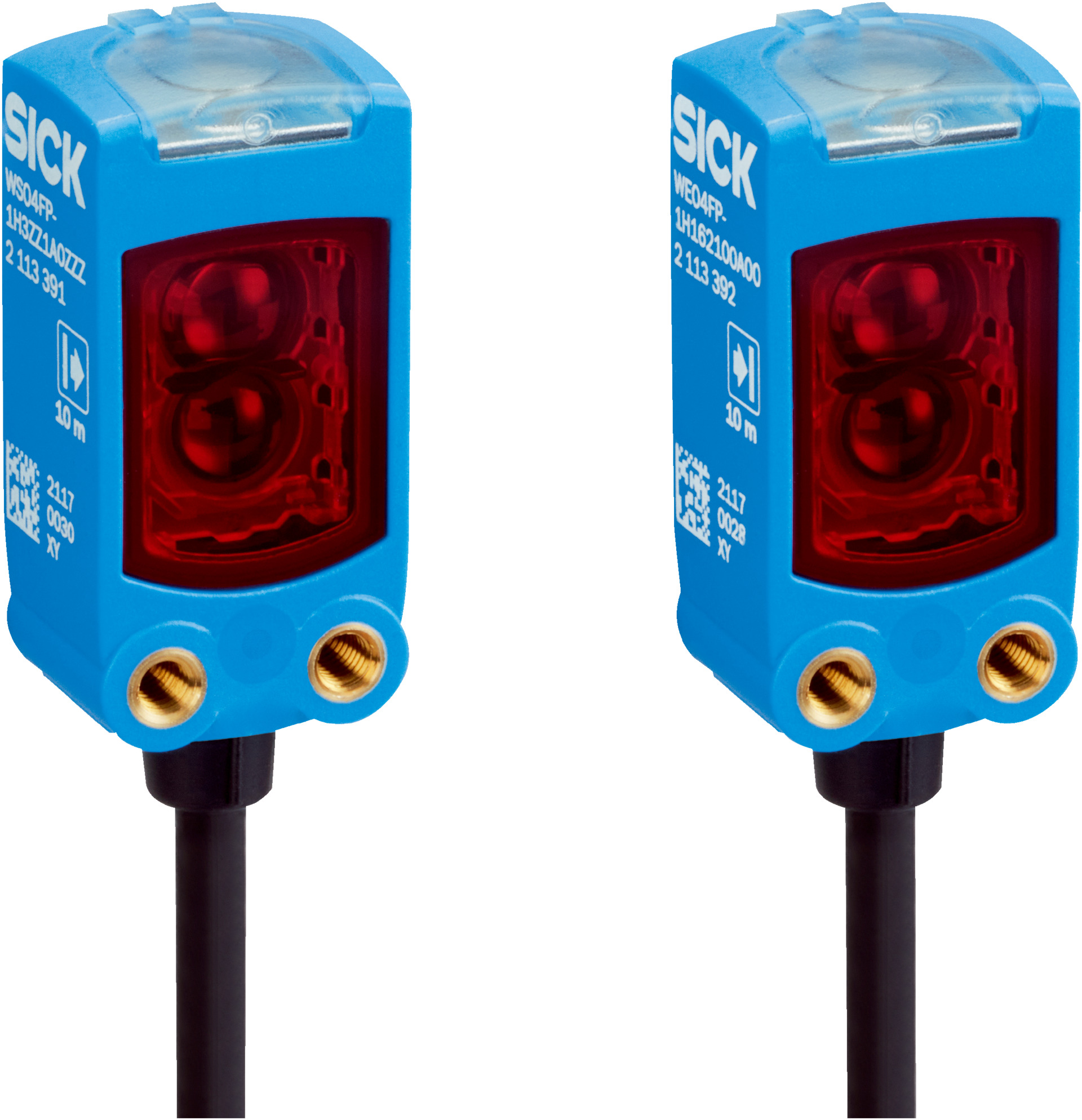

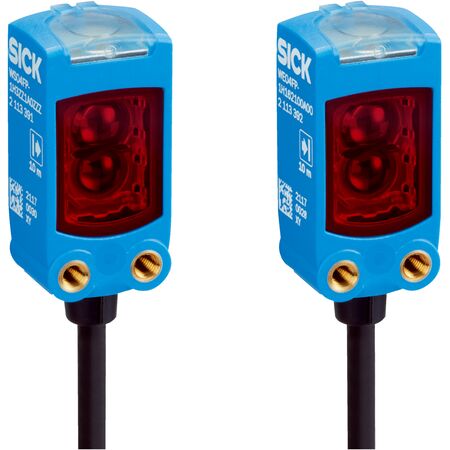

Through-Beam Photoelectric Sensor WSE4FP-1G311100ZZZ | 10m Sensing Range | IP66/IP67 Rated | by SICK
The Through-Beam Photoelectric Sensor WSE4FP-1G311100ZZZ offers a sensing range of up to 10 meters, making it ideal for industrial automation and safety monitoring applications. With a PinPoint LED light source and robust IP66/IP67 rated housing, this sensor ensures high alignment accuracy and durability in challenging environments. Perfect for material handling and conveyor systems, it features a fast response time of ≤ 500 µs and multiple LED indicators for enhanced functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 10 m (recommended 0 m to 7.5 m)
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Light spot size: Ø 40 mm at 1000 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output type: Push-pull PNP/NPN, dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Plastic VISTAL®
- Connection: 3-wire cable, 2 m length
- Operating temperature: -40 °C to +60 °C
- Enclosure rating: IP66 and IP67
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with a sensing range up to 10 m
- PinPoint LED visible red light with a wavelength of 635 nm
- High alignment accuracy with point-shaped light spot and low beam dispersion
- Robust plastic VISTAL® housing with IP66/IP67 protection rating
- Fast response time of ≤ 500 µs and switching frequency up to 1000 Hz
- Multiple LED indicators for alignment, power, and object detection status
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 1000 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 20 mA)
- Durable IP66/IP67 rated housing minimizes environmental damage and extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE4FP-1G311100ZZZ Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
