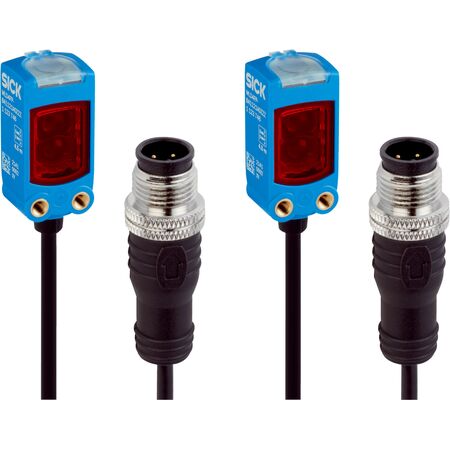

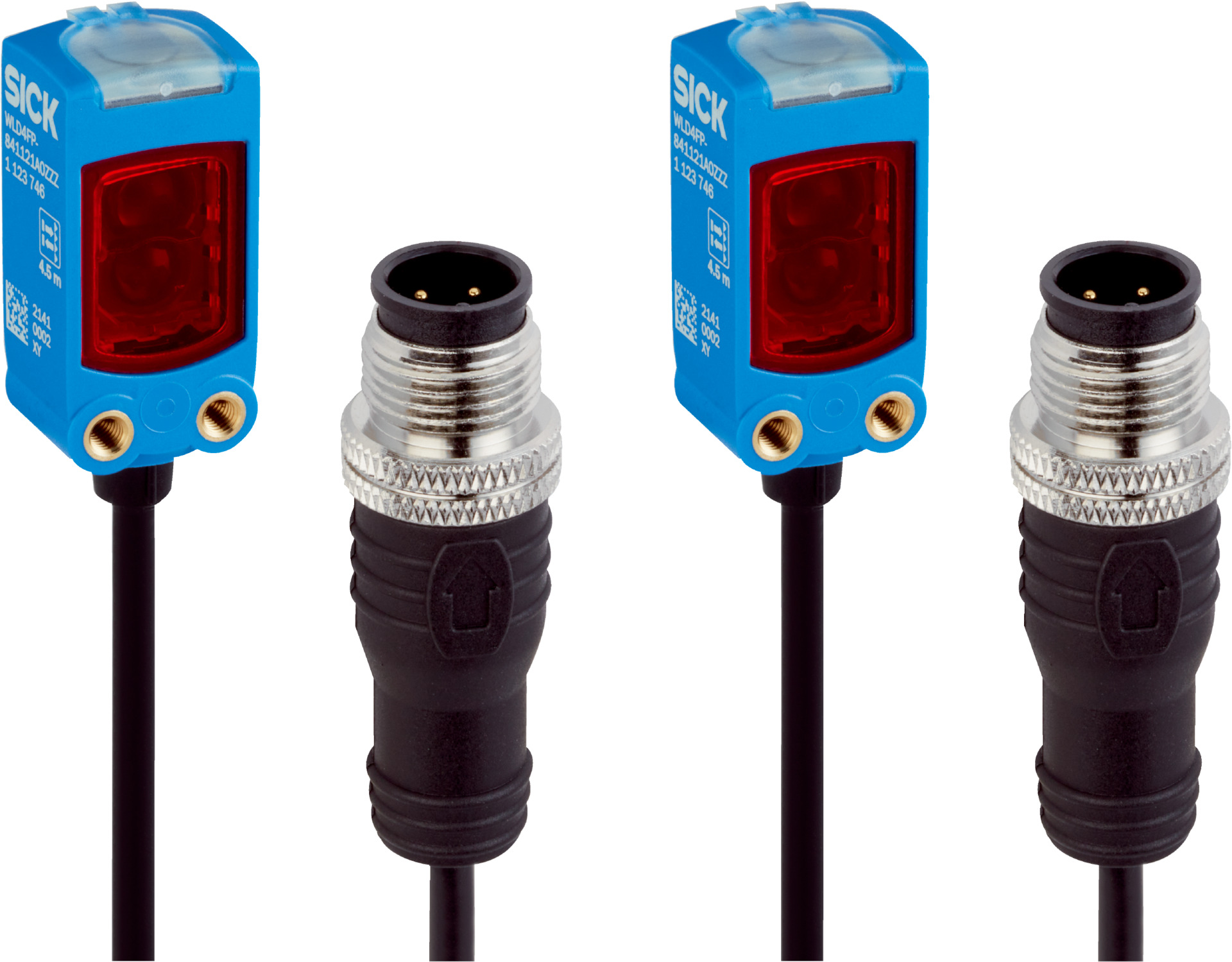

Through-Beam Photoelectric Sensor WSE4FP-84161100A00 | 10m Sensing Range | PinPoint LED | IP66/IP67 Rated | by SICK
The Through-Beam Photoelectric Sensor WSE4FP-84161100A00 is designed for industrial automation, offering a sensing range of up to 10 meters with optimal performance at 7.5 meters. Featuring a durable IP66/IP67 rated housing and a long-lasting PinPoint LED light source, this sensor is perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 m to 10 m, recommended 0 m to 7.5 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED service life: 100,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40°C to +60°C
- Cable: 4-pin M12 male connector, 182 mm length
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Cable material: PVC
- Maximum tightening torque of fixing screws: 0.4 Nm
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 10 meters with recommended best performance up to 7.5 meters
- PinPoint LED visible red light with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- IO-Link V1.1 communication for sensor parameter configuration and Smart Task functions
- Dual complementary push-pull digital outputs (PNP/NPN) with dark switching
- Robust plastic VISTAL® housing with IP66/IP67 protection rating
- Wide ambient operating temperature range from -40°C to +60°C
- Shock resistance up to 30 g and vibration resistance from 10 Hz to 1000 Hz
- Cable with M12 male connector, 4-pin, 182 mm length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, including IO-Link setup.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE4FP-84161100A00 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
