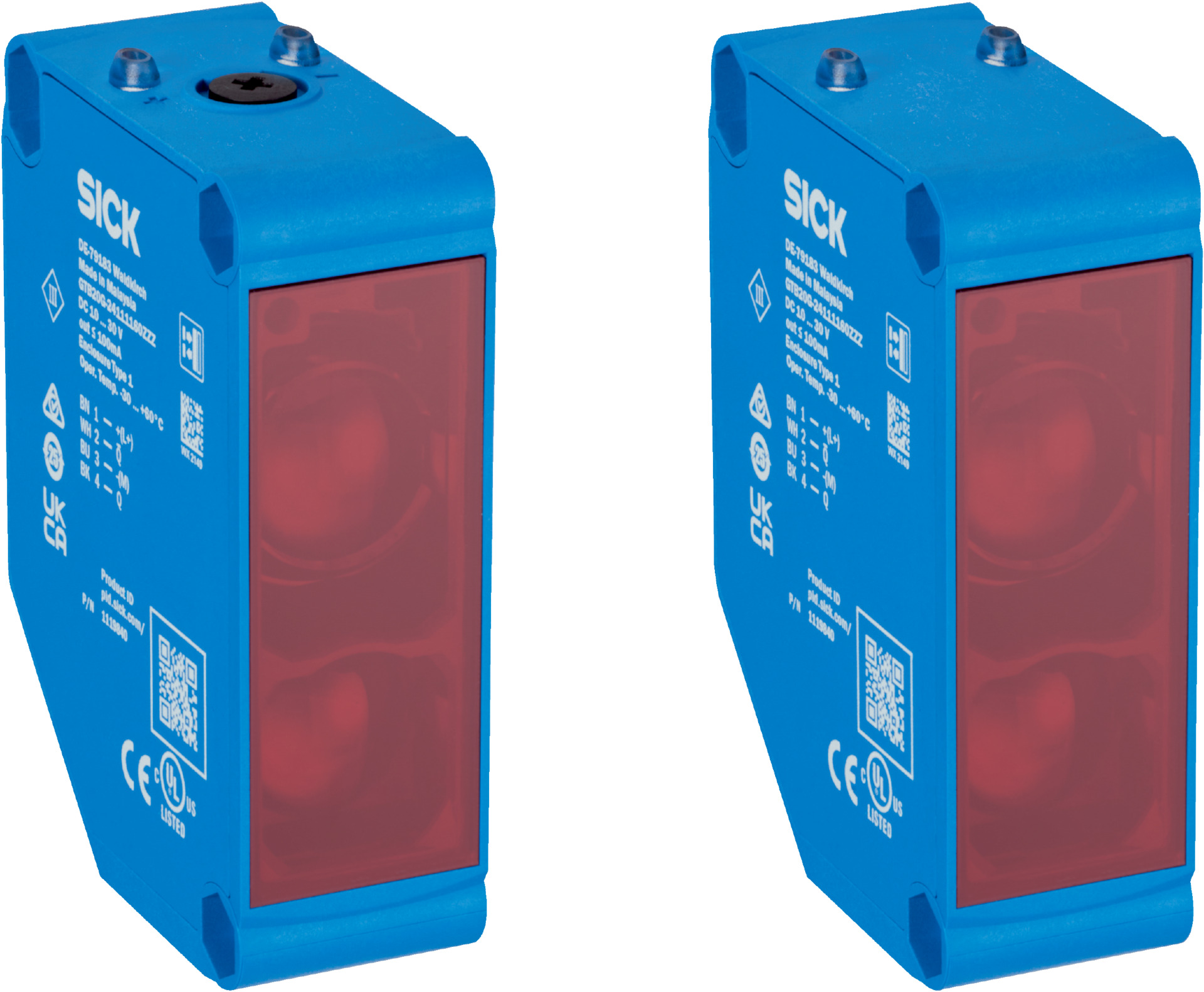

Through-Beam Photoelectric Sensor | 120m Sensing Range | Infrared LED | IP67 Rated | by SICK
The Through-Beam Photoelectric Sensor is designed for long-range sensing applications, offering a remarkable sensing range of up to 120 meters. With an infrared LED light source and a robust IP67-rated housing, this sensor is perfect for industrial automation and safety monitoring. Its high switching frequency of 1,000 Hz and fast response time of ≤ 500 µs ensure reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 120 m (max), recommended up to 85 m
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 800 mm at 20,000 mm distance
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Output type: 2 complementary push-pull outputs (PNP/NPN)
- Switching mode: Light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Plastic ABS, front screen PMMA
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 74.5mm x 52.5mm x 23.5mm
- Weight: 0.105 kg
Key Features
- Through-beam photoelectric sensor with sensing range up to 120 m
- Infrared LED light source with rectangular light spot
- Potentiometer for 270° sensitivity adjustment
- LED indicators for power and object presence status
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- Robust plastic ABS housing with IP67 protection rating
- Wide ambient operating temperature range from -30 °C to +60 °C
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Long-range sensing applications up to 120 meters
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable construction reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

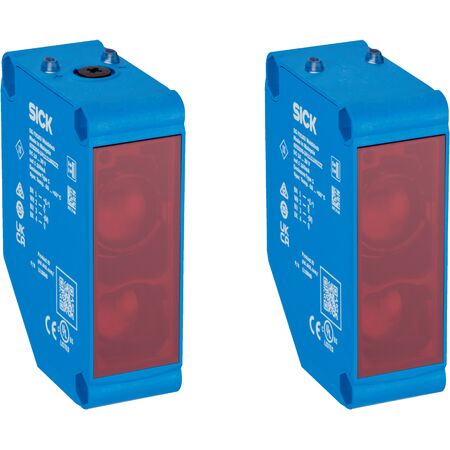

The SICK GSE20M-24112170ZZZ Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring reliable long-range sensing.
