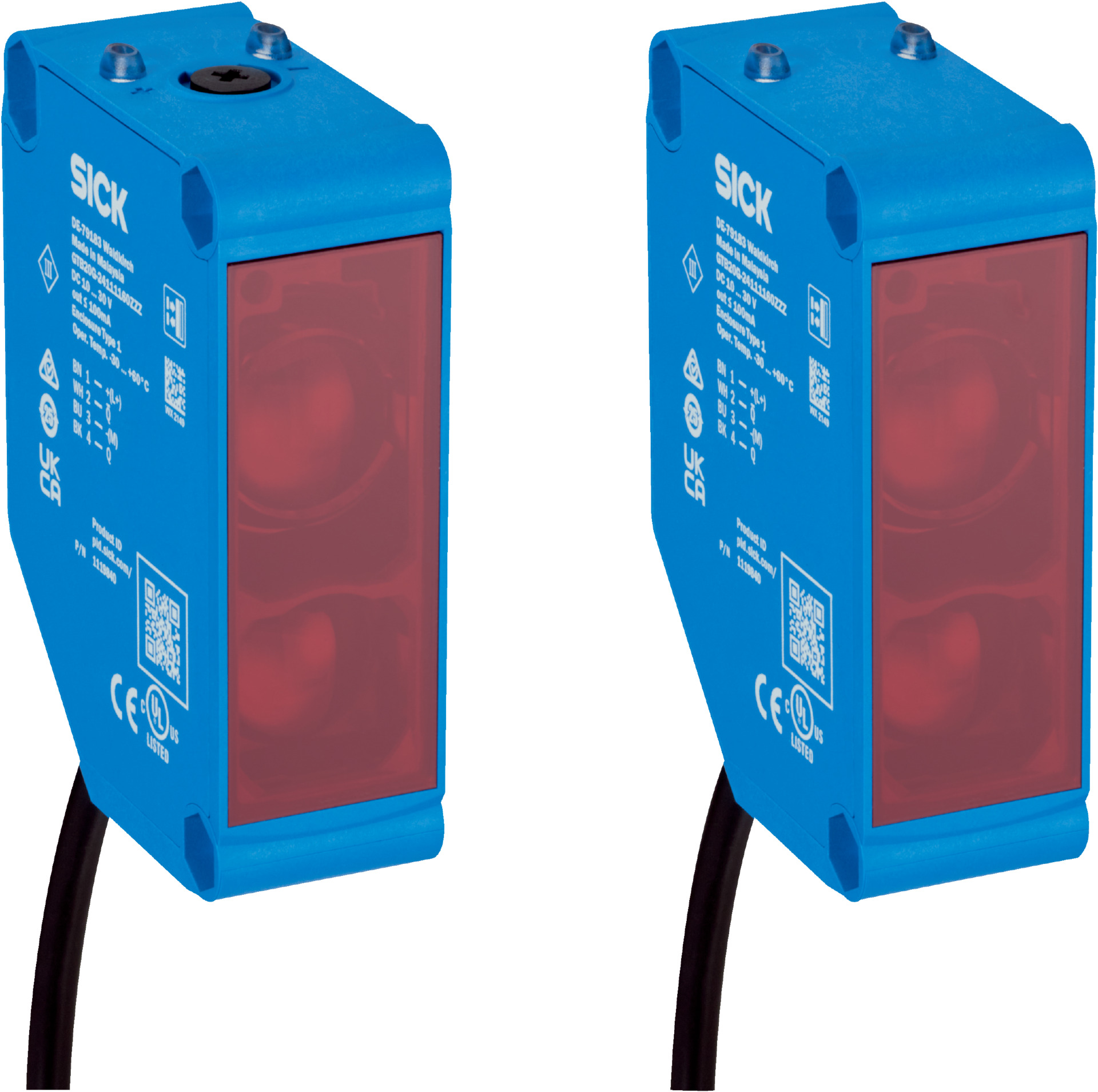

Through-Beam Photoelectric Sensor | 120m Sensing Range | Infrared LED | IP67 Rated | by SICK
The Through-Beam Photoelectric Sensor is designed for long-range sensing applications, offering a remarkable sensing range of up to 120 meters. With an infrared LED light source and an IP67 rated housing, it ensures reliable performance in industrial automation and safety monitoring. Ideal for environments requiring robust detection capabilities, this sensor features a high LED service life and is resistant to shock and vibration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 120 m (max), recommended up to 85 m
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 800 mm at 20,000 mm distance
- Maximum beam dispersion: < +/- 1.5° at 23°C
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Output type: 2 complementary push-pull outputs (PNP/NPN), light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Plastic ABS, front screen PMMA
- Cable: 4-wire, 2 m length, PVC
- Operating temperature: -30°C to +60°C
- Storage temperature: -40°C to +70°C
- Enclosure rating: IP67
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 74.5mm x 52.5mm x 23.5mm
- Weight: 0.235 kg
Key Features
- Through-beam photoelectric sensor with sensing range up to 120 m
- Infrared LED light source with rectangular light spot
- High LED service life of 100,000 hours at 25°C
- Potentiometer for 270° sensitivity adjustment
- LED indicators for power and object presence status
- IP67 rated housing for dust and water protection
- Robust against shock and vibration
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper wiring, alignment, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Long-range sensing applications up to 120 meters
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Durable IP67 housing extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GSE20M-1H112170ZZZ Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and long-range sensing applications.
