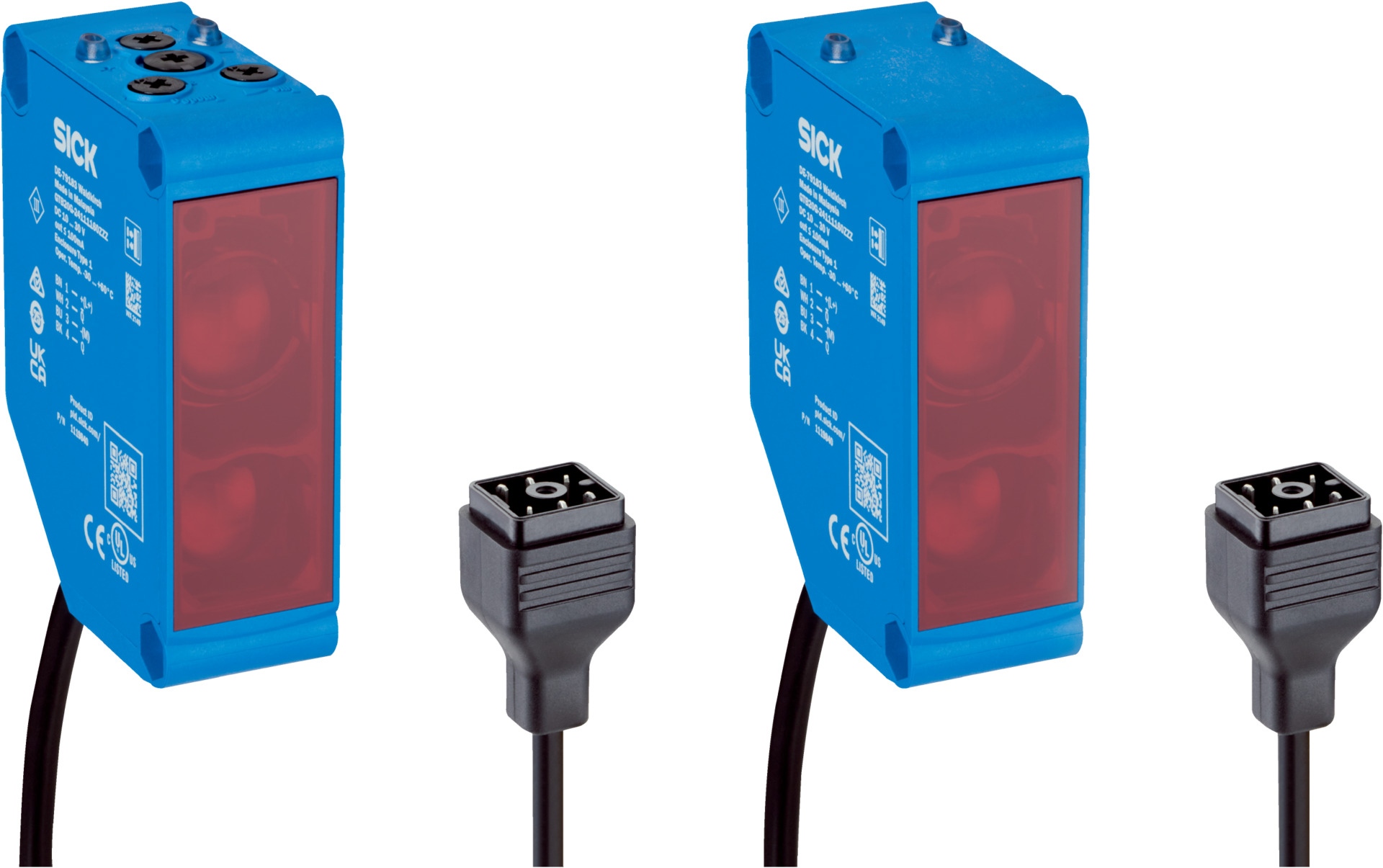

Through-Beam Photoelectric Sensor GSE20G | 120m Sensing Range | IP65 Rated | by SICK
The GSE20G Through-beam Photoelectric Sensor offers a remarkable sensing range of up to 120 meters, making it ideal for industrial automation and safety applications. With a visible red LED light source and robust IP65-rated housing, this sensor ensures reliable performance in challenging environments. Designed for easy integration, it features adjustable sensitivity and two complementary relay outputs for versatile operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 m to 120 m
- Light source: LED, visible red light, wavelength 630 nm
- Light spot size: Ø 800 mm at 20,000 mm distance
- LED average service life: 100,000 hours at 25 °C
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA (without load at 230 V AC/DC), ≤ 45 mA (without load at 24 V AC/DC)
- Output: 2 complementary relay outputs, SPDT, electrically isolated
- Max output current: 4 A at 250 V AC, 4 A at 24 V DC
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Operating temperature: -30 °C to +60 °C
- Protection class: II
- Enclosure rating: IP65
- Housing material: Plastic ABS
- Cable: PVC with Q6 male connector, 6-pin, 300 mm length
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.3 kg
Key Features
- Through-beam photoelectric sensor with sensing range up to 120 m
- Visible red LED light source with rectangular light spot
- Adjustable sensitivity, delay time, and switching function
- Two complementary relay outputs with light/dark switching
- High ambient light immunity up to 20,000 lx
- Robust plastic ABS housing with IP65 protection
- Operating temperature range from -30 °C to +60 °C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 1,000 Hz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and security systems
- Material handling and conveyor systems
- Manufacturing process control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source with long service life reduces power consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

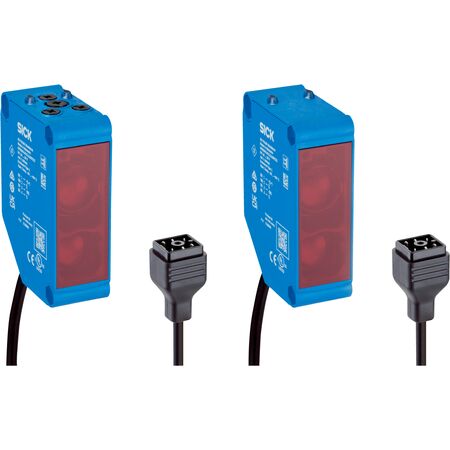

The SICK GSE20G-3ASD217GZZZ Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
