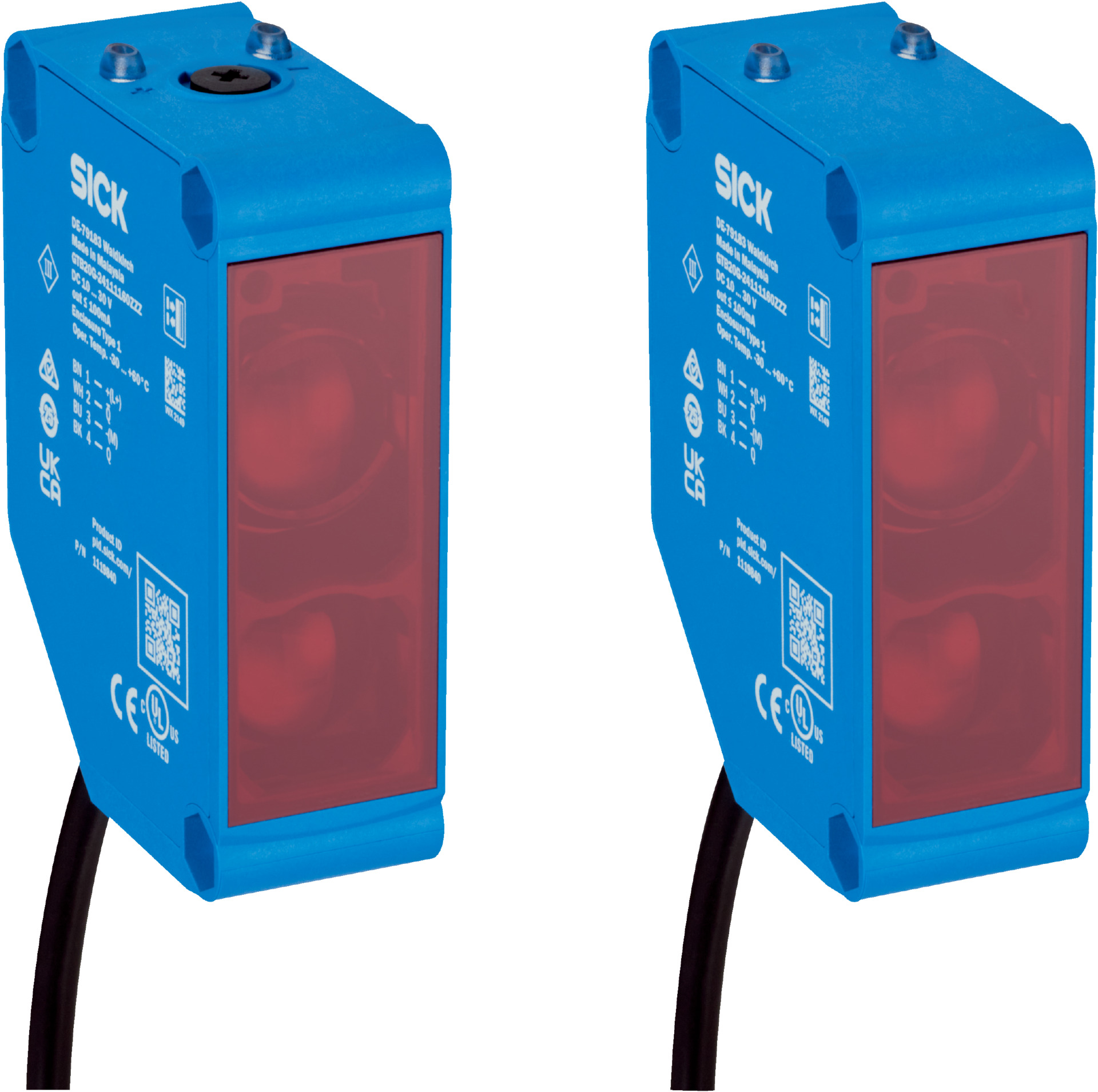

Through-Beam Photoelectric Sensor | 120m Sensing Range | IP67 Rated | LED Indicators | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 120m and a robust IP67-rated housing. With visible red LED light and relay outputs for light/dark switching, it’s perfect for safety and security systems, material handling, and packaging applications. Built to withstand harsh environments, this sensor ensures reliable performance in various conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 120 m (max), recommended 0 m to 85 m
- Light source: LED, visible red light, wavelength 630 nm
- Light spot size: Ø 800 mm at 20,000 mm distance
- LED risk group: Free group according to EN 62471
- Adjustment: Potentiometer for sensitivity adjustment, 270°
- Display: Green LED for power, Yellow LED for light beam status
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA (230 V AC/DC), ≤ 45 mA (24 V AC/DC)
- Digital outputs: 2 relay SPDT, electrically isolated, light/dark switching
- Output current max: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Housing material: Plastic ABS, front screen PMMA
- Cable: 5-wire, 2 m length, PVC
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -30°C to +60°C
- Storage temperature: -40°C to +70°C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 74.5mm x 63mm x 23.5mm
- Weight: 0.3 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 120 m with recommended range 85 m
- Visible red LED light source with rectangular light spot
- LED indicators for power and object presence
- Relay outputs with light/dark switching
- Robust plastic ABS housing with IP67 rating
- Wide ambient operating temperature from -30°C to +60°C
- High shock and vibration resistance
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and security systems
- Material handling and conveyor systems
- Packaging and manufacturing lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Durable IP67 housing extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GSE20G-1IRC2170ZZZ Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
