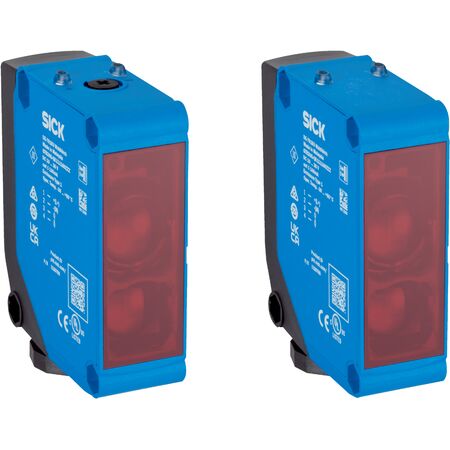

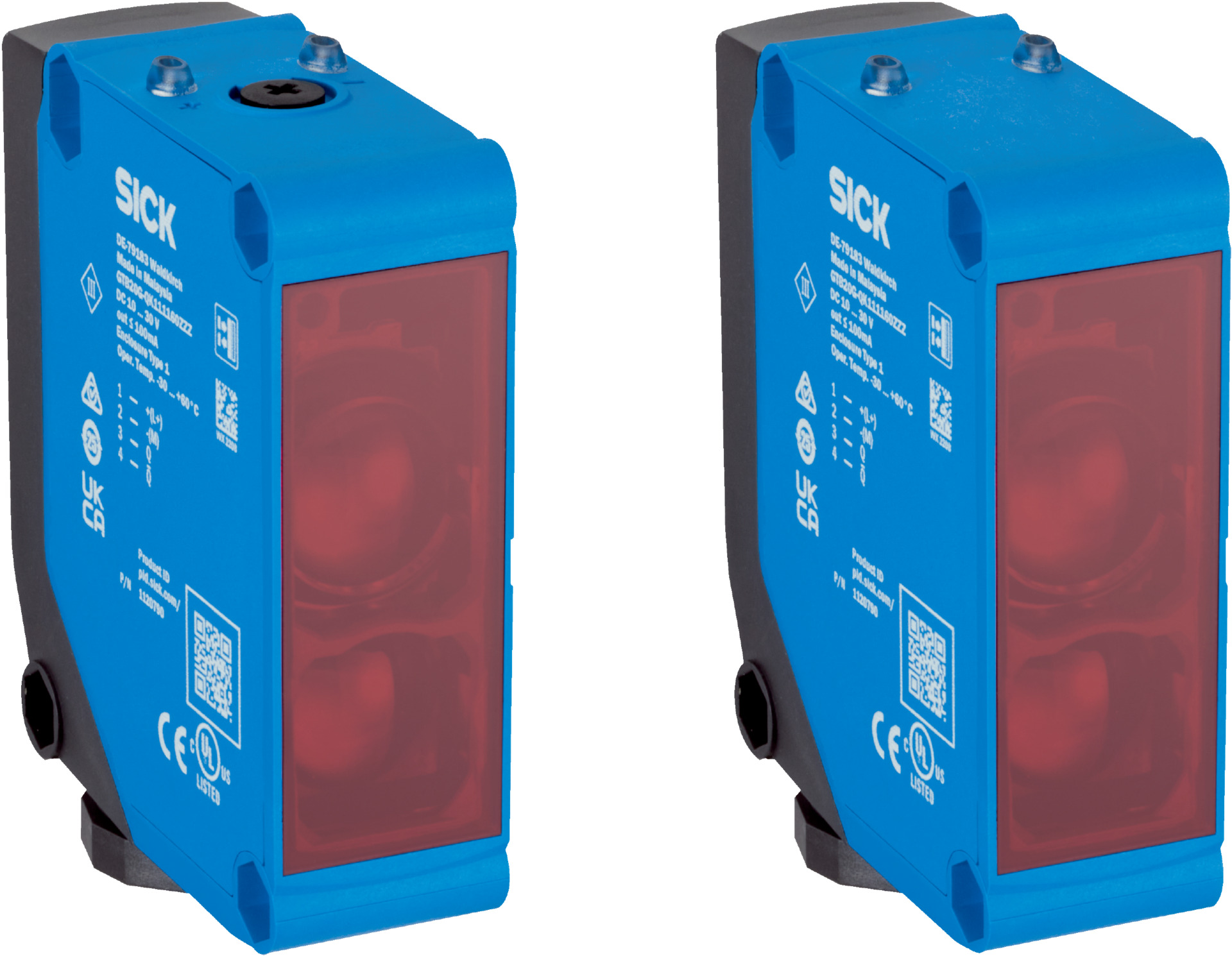

Through-Beam Photoelectric Sensor | 120m Sensing Range | IP67 Rated | LED Light Source | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a remarkable sensing range of up to 120 meters and a visible red LED light source. Ideal for safety monitoring and object detection in manufacturing processes, this sensor offers high shock and vibration resistance, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 120 m (max), recommended up to 85 m
- Light source: LED, visible red light, wavelength 630 nm
- Light spot size: Ø 800 mm at 20,000 mm distance
- LED risk group: Free group according to EN 62471
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA (230 V AC/DC), ≤ 45 mA (24 V AC/DC)
- Output: 2 complementary relay outputs, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Material: Plastic ABS housing, PMMA front screen
- Connection: Terminal connection, 5 terminals
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.171 kg
Key Features
- Through-beam photoelectric sensor with sensing range up to 120 m
- Visible red LED light source with rectangular light spot
- Potentiometer for 270° sensitivity adjustment
- LED indicators for power and object presence status
- Relay outputs with light/dark switching modes
- High shock and vibration resistance
- IP67 rated enclosure for harsh environments
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK GSE20G-QLRC2170ZZZ Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
