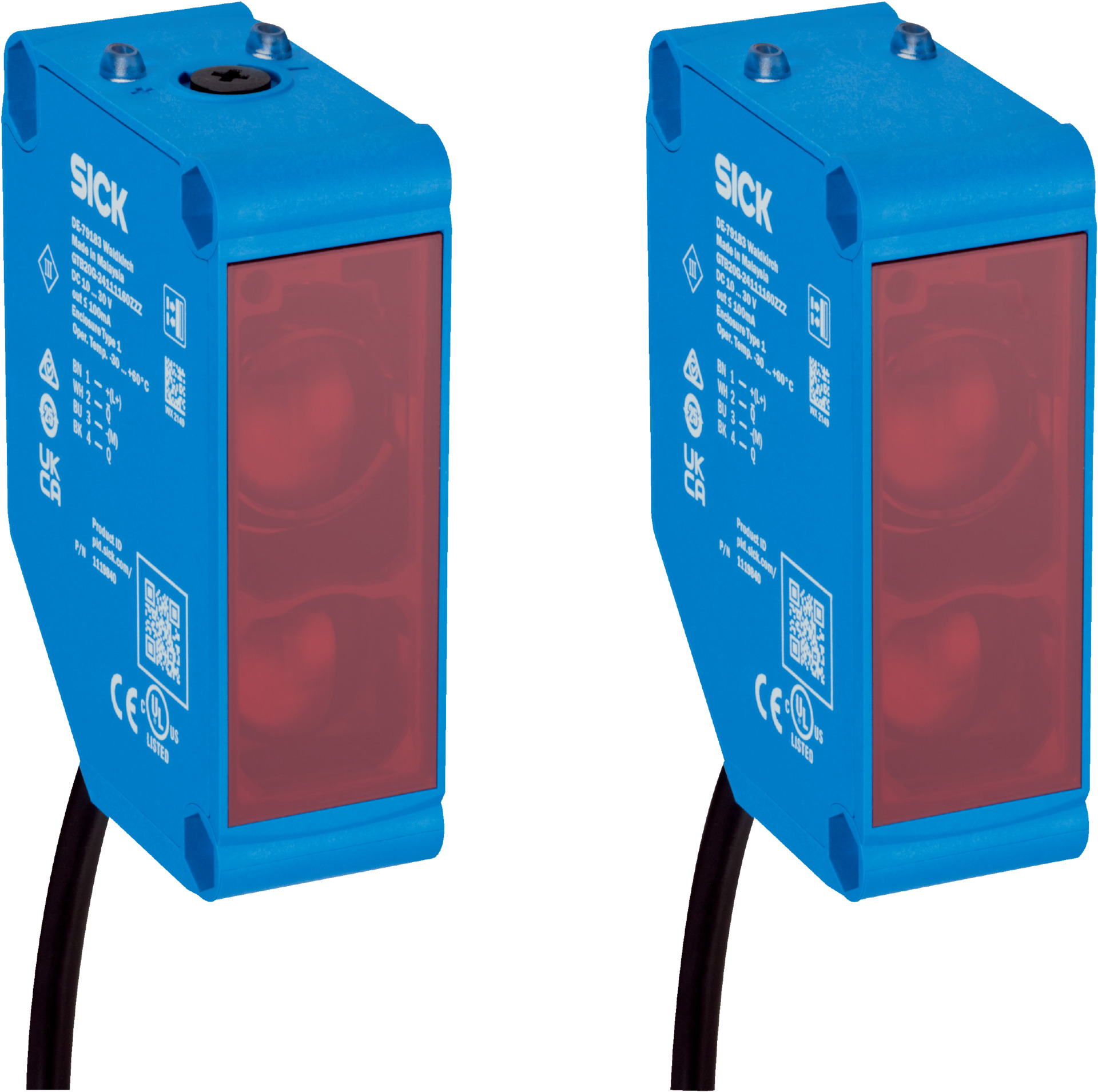

Through-Beam Photoelectric Sensor GSE20G-6IRC2170ZZZ | 120m Sensing Range | IP67 Rated | by SICK
The GSE20G-6IRC2170ZZZ Through-beam Photoelectric Sensor offers a remarkable sensing range of up to 120 meters, making it ideal for industrial automation and safety monitoring applications. With a visible red LED light source and robust IP67 enclosure, this sensor is built to withstand harsh environments while providing reliable object detection. Perfect for material handling and conveyor systems, it features LED indicators for power and object presence status.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 120 m (max), recommended 0 m to 85 m
- Light source: LED, visible red light, wavelength 630 nm
- Light spot size: Ø 800 mm at 20,000 mm distance
- LED risk group: Free group according to EN 62471
- Adjustment: Potentiometer for sensitivity adjustment, 270°
- Display: Green LED for power, yellow LED for light beam status
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA (230 V AC/DC), ≤ 45 mA (24 V AC/DC)
- Digital outputs: 2 complementary relay outputs, SPDT, electrically isolated
- Output current max: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Protection class: II
- Housing material: Plastic ABS, front screen PMMA
- Cable: 5-wire, 5 m length, PVC
- Enclosure rating: IP67
- Operating temperature: -30°C to +60°C
- Storage temperature: -40°C to +70°C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- EMC: EN 60947-5-2, EN 61000-6-3
- Dimensions (H x L x W): 74.5mm x 63mm x 23.5mm
- Weight: 0.45 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 120 m with recommended range 85 m
- Visible red LED light source with rectangular light spot
- LED indicators for power and object presence status
- Relay outputs with light/dark switching modes
- High shock and vibration resistance
- IP67 rated enclosure for harsh environments
- Wide ambient operating temperature range from -30°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GSE20G-6IRC2170ZZZ Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
