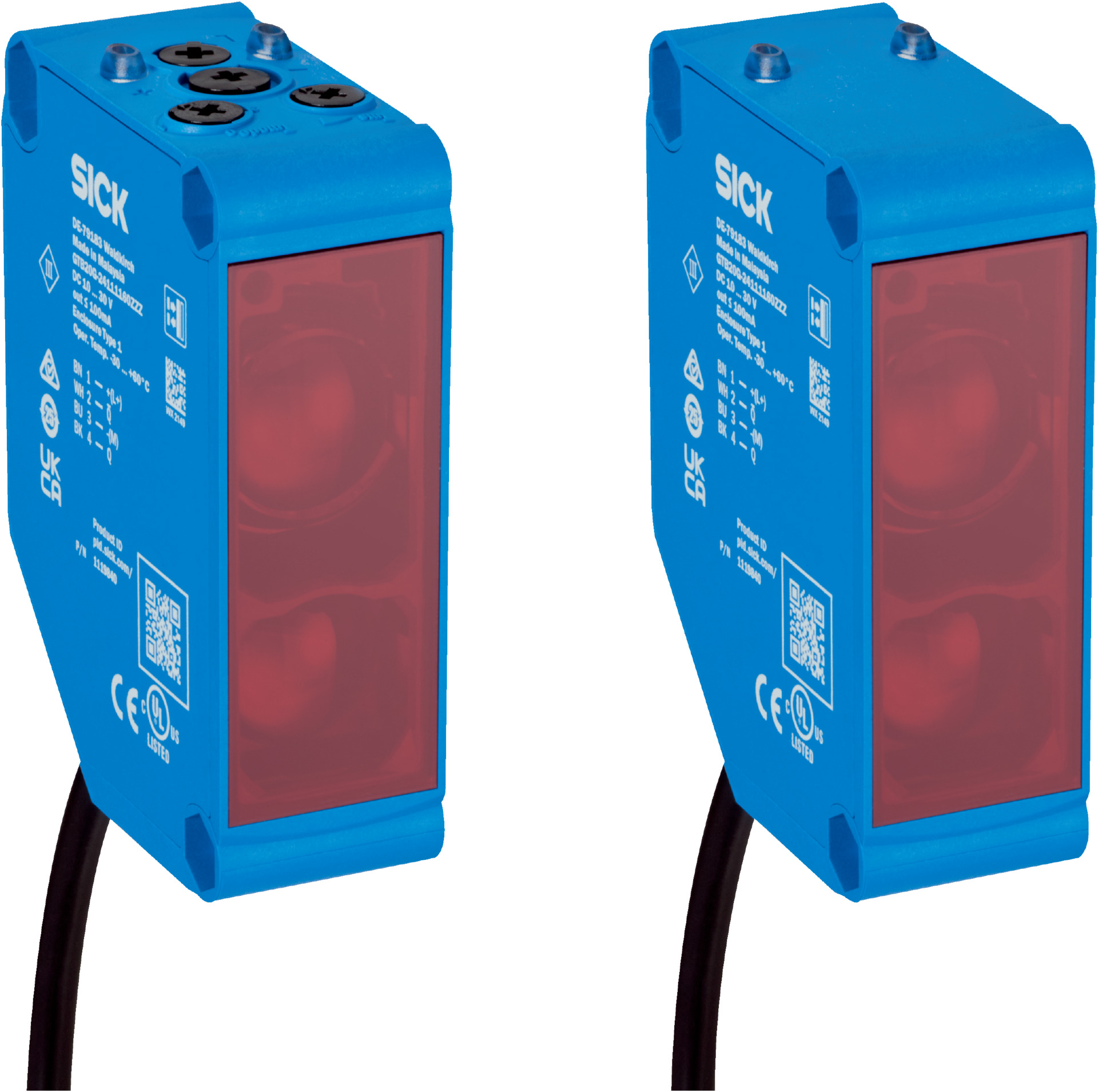

Through-Beam Photoelectric Sensor | 120m Sensing Range | IP67 Rated | Visible Red LED Light | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, offering a remarkable sensing range of up to 120 meters. With a visible red LED light source at 630 nm and a rectangular light spot, it ensures precise object detection. Built for harsh environments, this sensor features an IP67 rating, making it ideal for safety and monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 120 m (max), recommended 0 m to 85 m
- Light source: LED, visible red light, 630 nm wavelength
- Light spot shape: Rectangular, Ø 800 mm at 20,000 mm
- LED risk group: Free group according to EN 62471
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA (230 V AC/DC), ≤ 45 mA (24 V AC/DC)
- Digital outputs: 2 complementary relay outputs, SPDT, electrically isolated
- Output current max: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Time functions: Switch-on delay, off delay, ON and OFF delay adjustable 0-10,000 ms
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Electromagnetic compatibility: EN 60947-5-2, EN 61000-6-3
- Dimensions (H x L x W): 74.5mm x 63mm x 23.5mm
- Weight: 0.395 kg
Key Features
- Through-beam photoelectric sensor with sensing range up to 120 m
- Visible red LED light source with 630 nm wavelength
- Rectangular light spot with Ø 800 mm at 20,000 mm distance
- LED indicators for power and object presence status
- Adjustable sensitivity via 270° potentiometer
- Relay outputs with light/dark switching and adjustable time delay
- High protection rating IP67 for harsh environments
- Wide ambient operating temperature range from -30 °C to +60 °C
- Shock resistance up to 30 g and vibration resistance 10 Hz to 1,000 Hz
- Electromagnetic compatibility compliant with EN 60947-5-2 and EN 61000-6-3
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Long-range sensing applications up to 120 meters
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GSE20G-1IRC217GZZZ Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
