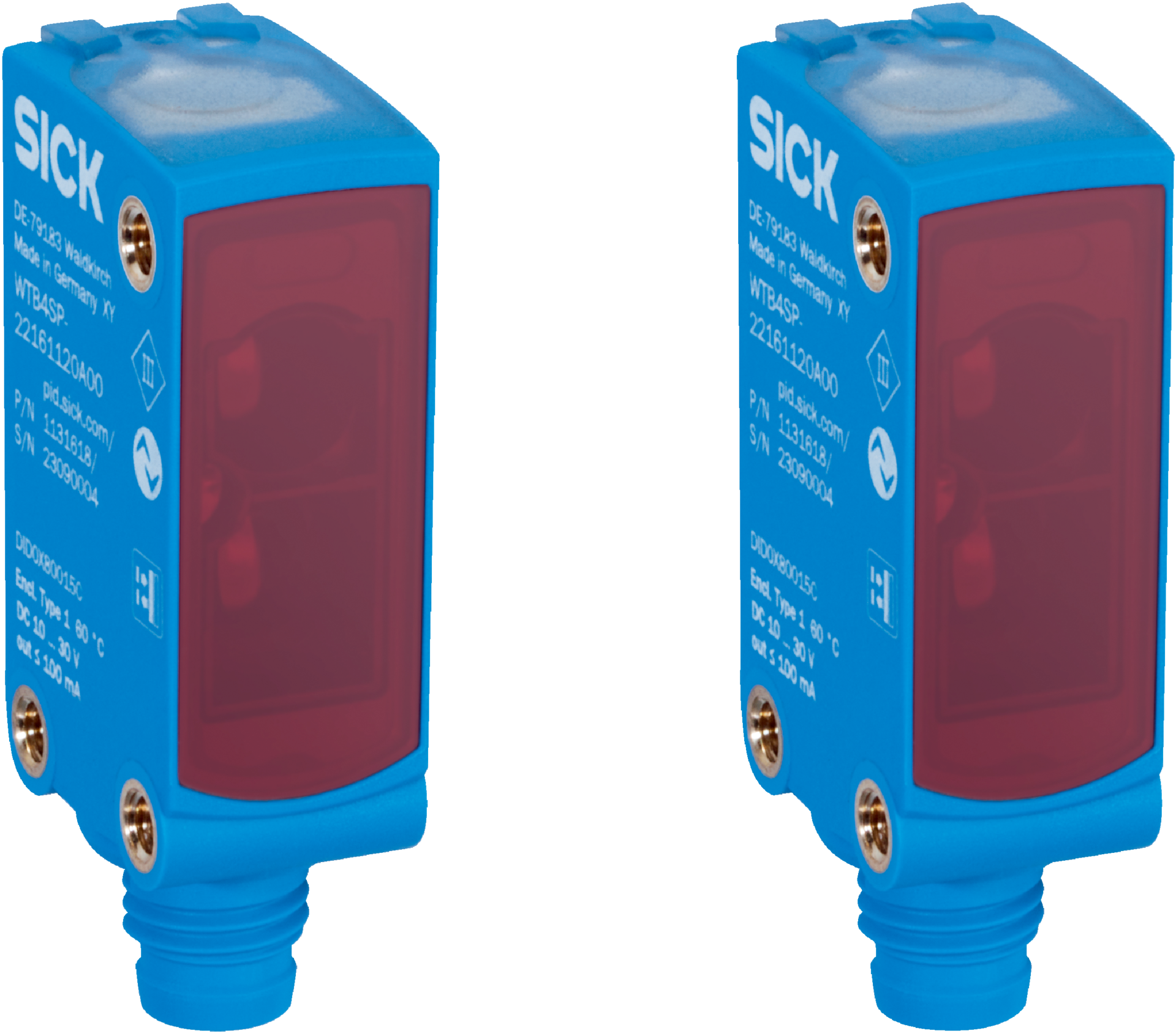

Through-Beam Photoelectric Sensor | 12m Sensing Range | IP66/IP67 Rated | Fast Response Time | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 12 meters and a fast response time of ≤ 500 µs. With its robust IP66/IP67 rated housing and high immunity to ambient light, this sensor is perfect for detecting objects in harsh environments, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Through-beam photoelectric sensor, SICK photoelectric sensor, WSE4SP sensor, industrial object sensor
Technical Specifications
- Sensing range: 0 m to 12 m (recommended 0 m to 9 m)
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Output type: 2 push-pull outputs (PNP/NPN), max 100 mA
- Response time: ≤ 500 µs, switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Housing material: Plastic VISTAL®, front screen PMMA
- Connection: Male M8, 4-pin connector
- Dimensions (H x L x W): 41.9mm x 18.6mm x 12.1mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with sensing range up to 12 m
- PinPoint LED visible red light with 635 nm wavelength
- High immunity to ambient light up to 50,000 lx sunlight
- Robust plastic VISTAL® housing with IP66/IP67 rating
- Fast response time of ≤ 500 µs and switching frequency of 1,000 Hz
- LED indicators for alignment aid, power, and object detection status
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and alignment for optimal sensor performance.
Applications
- Industrial automation for object detection
- Detection of poorly remitting and tilted objects
- Use in harsh environments requiring IP66/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 20 mA)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

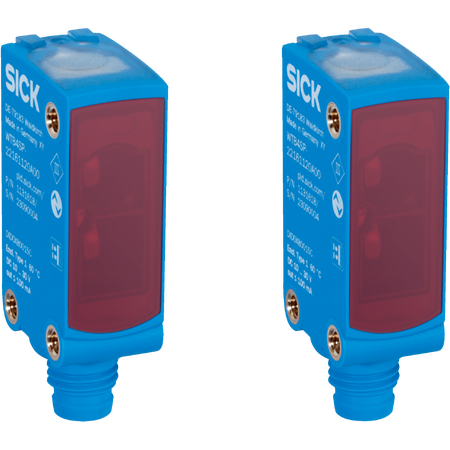

The SICK WSE4SP-22112100ZZZ Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
