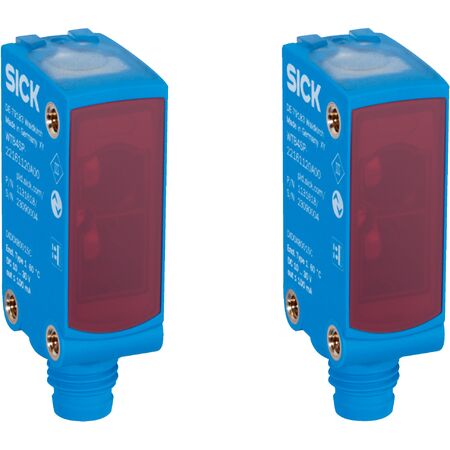

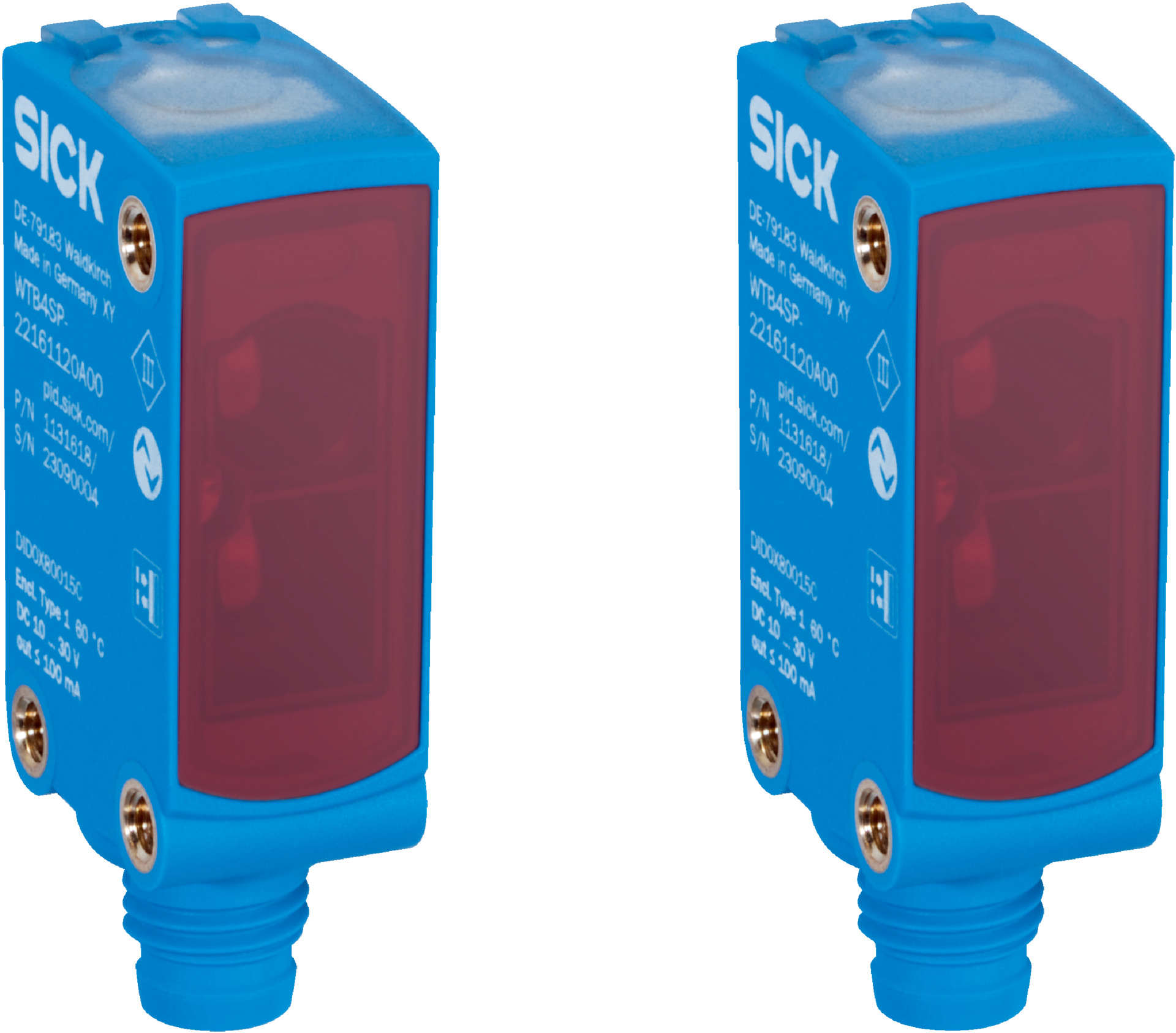

Through-Beam Photoelectric Sensor WSE4SP-22161100A00 | 12m Sensing Range | IP66/IP67 Protection | by SICK
The WSE4SP-22161100A00 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 12 meters and a PinPoint LED light source with a 635 nm wavelength. With a robust IP66/IP67 rated housing, it excels in harsh environments, ensuring reliable object detection and fast response times of ≤ 500 µs. Ideal for applications requiring precise alignment and detection of poorly remitting objects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 to 12 m, recommended 0 to 9 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Digital outputs: 2 push-pull PNP/NPN, dark switching
- Switching frequency: up to 1,000 Hz
- Response time: ≤ 500 µs
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Connection: Male M8, 4-pin connector
- Housing material: Plastic VISTAL® with PMMA front screen
- Dimensions (H x L x W): 42mm x 19mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with sensing range up to 12 m
- PinPoint LED visible red light with 635 nm wavelength
- IO-Link V1.1 for sensor parameter configuration and Smart Task functions
- High switching frequency up to 1,000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66 and IP67 protection
- LED indicators for alignment aid, operating status, and light beam status
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment and secure mounting with maximum tightening torque of 0.4 Nm for fixing screws.
Applications
- Industrial automation for object detection
- Detection of poorly remitting and tilted objects
- Use in harsh environments requiring IP66/IP67 protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE4SP-22161100A00 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
