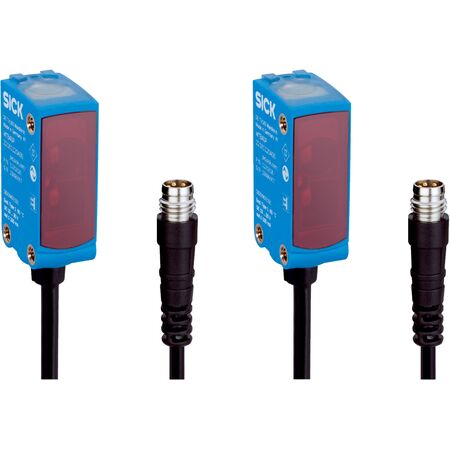

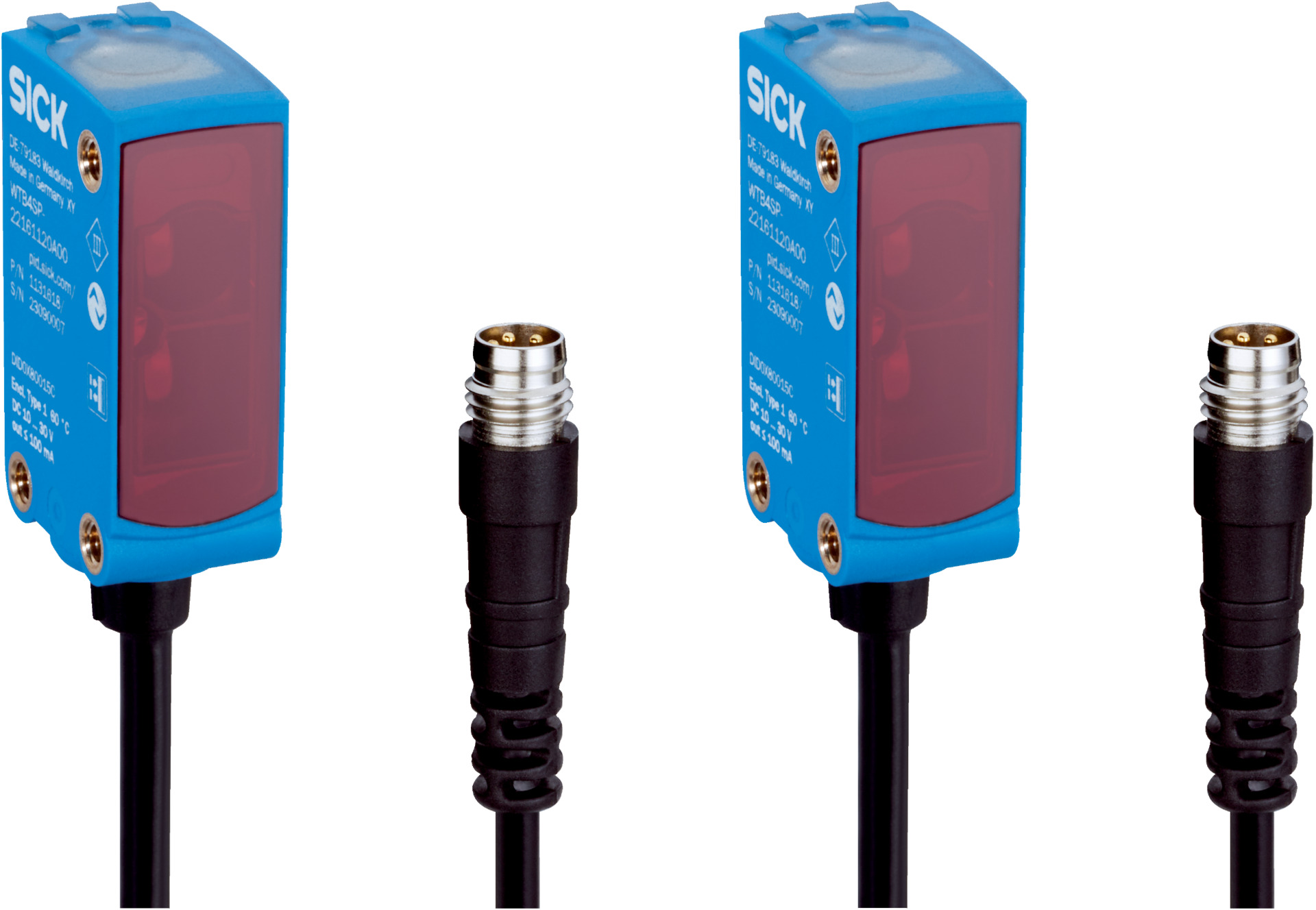

Through-Beam Photoelectric Sensor WSE4SP-32161100A00 | 12m Sensing Range | IP66/IP67 Rated | by SICK
The WSE4SP-32161100A00 through-beam photoelectric sensor is designed for industrial automation, offering a sensing range of up to 12 meters and a durable IP66/IP67 rated enclosure. With a long LED service life of 100,000 hours and a robust plastic VISTAL® housing, it ensures reliable performance in harsh environments, making it ideal for object detection and alignment tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 m to 12 m (recommended 0 m to 9 m)
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED service life: 100,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Digital outputs: 2 push-pull (PNP/NPN), dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40°C to +60°C
- Connection: Cable with M8 male connector, 4-pin, 114 mm length
- Housing material: Plastic VISTAL®
- Display LEDs: Blue (alignment aid), Green (power/IO-Link), Yellow (light beam status)
- Dimensions (H x L x W): 42mm x 19mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with sensing range up to 12 m
- PinPoint LED visible red light with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- Dual push-pull digital outputs with dark switching
- Robust plastic VISTAL® housing with slim design
- IP66 and IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40°C to +60°C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 1000 Hz
- EMC compliant to EN 60947-5-2
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, wiring, and configuration via IO-Link for optimal sensor performance.
Applications
- Industrial automation for object detection
- Detection of poorly remitting and tilted objects
- Use in harsh environments requiring IP66/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WSE4SP-32161100A00 through-beam photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
