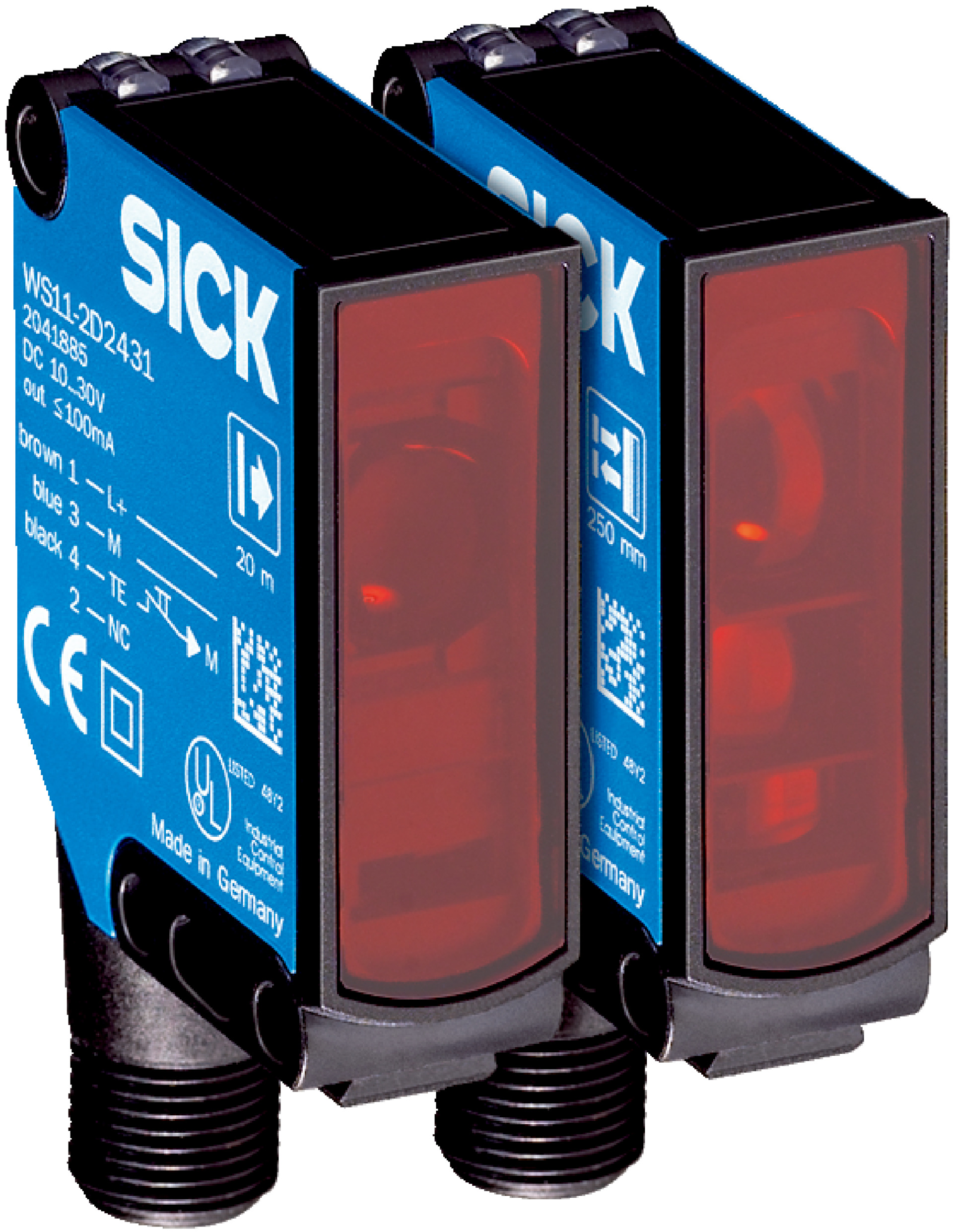

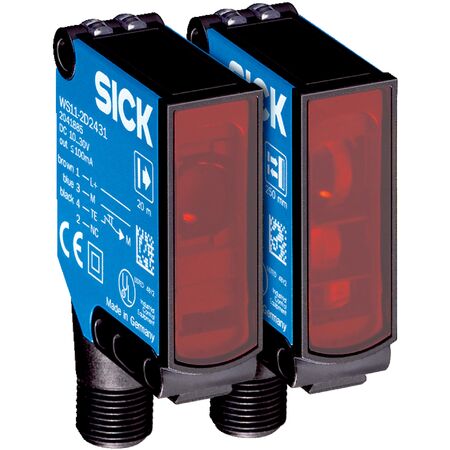

Through-Beam Photoelectric Sensor WSE11-2K2430 | 15m Sensing Range | IP66, IP67, IP69K Rated | by SICK
The WSE11-2K2430 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 15 meters and a fast response time of ≤ 2.5 ms. With its durable IP66, IP67, and IP69K rated housing, this sensor is perfect for safety monitoring and object detection in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 15 m (max 20 m)
- Focus angle: Approx. 1.5°
- Light source: LED, visible red light, wavelength 633 nm
- Light spot size at 15 m: Ø 220 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 2.5 ms
- Switching frequency: 200 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, C, D
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +75 °C
- Weight: 120 g
- Dimensions (H x L x W): 49mm x 42mm x 16mm
- Weight: 0.12 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 15 meters, max 20 meters
- Rectangular housing design with IP66, IP67, and IP69K enclosure rating
- Fast response time of ≤ 2.5 ms and switching frequency of 200 Hz
- Durable plastic ABS housing and PMMA optics material
- Male connector M12, 4-pin connection type
- Wide operating temperature range from –30 °C to +60 °C
- Complementary PNP switching output with light/dark switching mode
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with ≤ 25 mA sender and ≤ 20 mA receiver
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE11-2K2430 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
