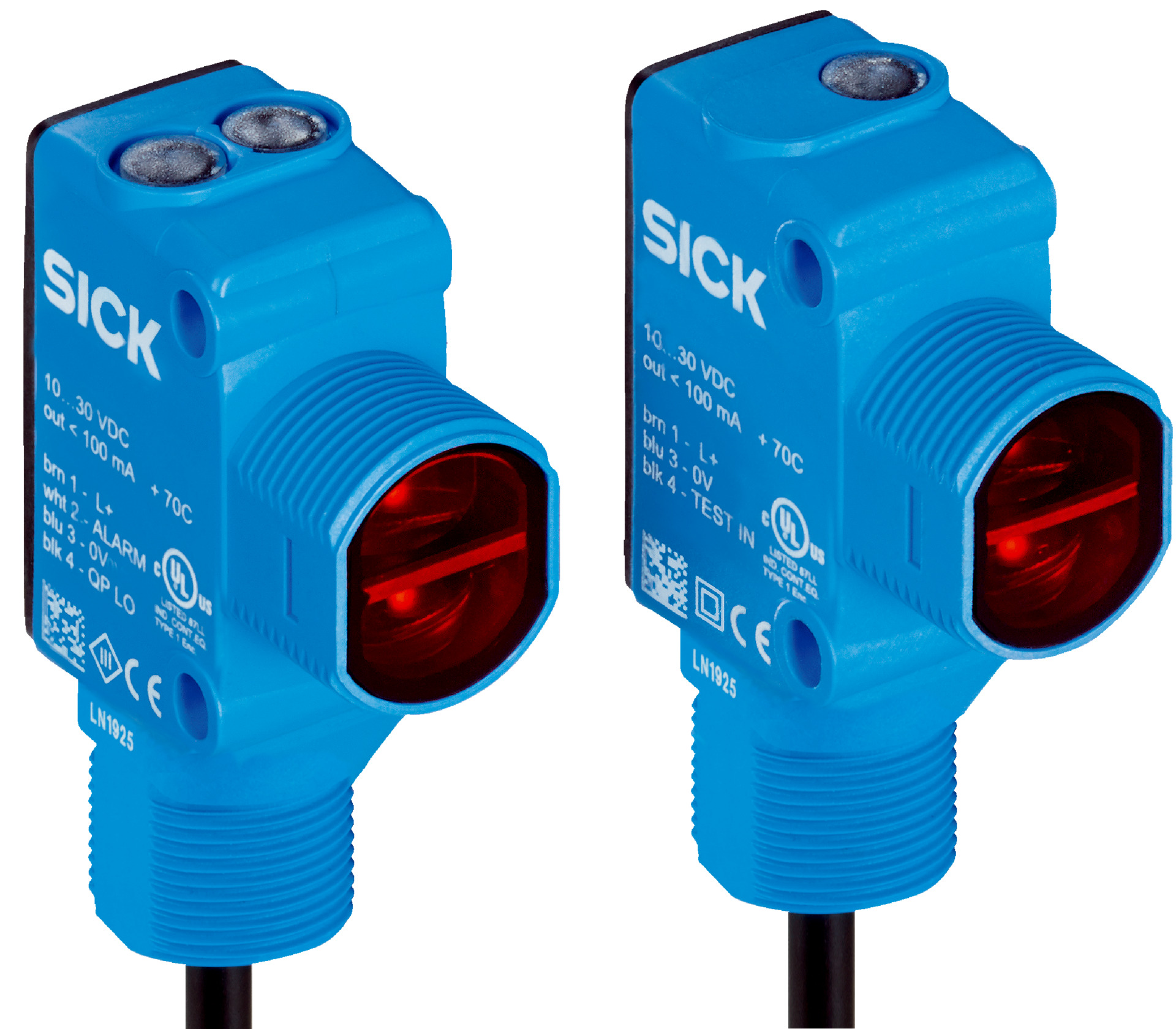

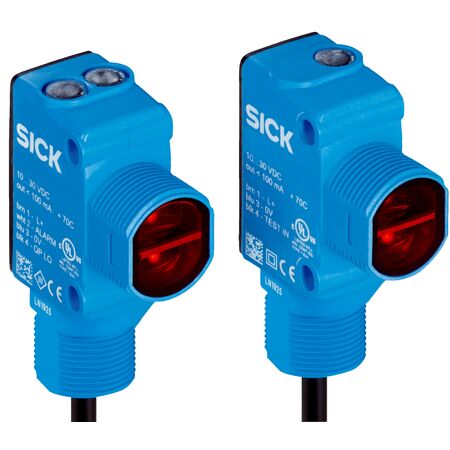

Through-Beam Photoelectric Sensor HSE18B-P4B1BA | 15m Sensing Range | IP67/IP69K Rated | by SICK
The HSE18B-P4B1BA through-beam photoelectric sensor is designed for industrial automation, featuring a sensing range of up to 15 meters and a robust IP67/IP69K rated housing. With a fast response time of ≤ 0.5 ms and a high switching frequency of 1000 Hz, it ensures reliable object detection and safety monitoring in manufacturing processes. Ideal for material handling and packaging systems, this sensor is built for efficiency and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 15 m (max 20 m)
- Light source: Infrared LED, wavelength 850 nm
- Switching output: Complementary PNP, light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Cable with M12 male connector, 4-pin, 150 mm
- Protection class: III
- Enclosure rating: IP67, IP69K
- Housing material: Plastic (VISTAL®)
- Optics material: Plastic (PMMA)
- Operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +75 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 50.1mm x 31.4mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 15 meters, maximum 20 meters
- Hybrid housing design with M18 thread diameter
- Signal strength light bar for easy alignment
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Complementary PNP switching outputs with light/dark switching modes
- Robust plastic housing (VISTAL®) and optics (PMMA) with IP67 and IP69K protection
- Wide ambient operating temperature range from -40 °C to +70 °C
- Cable with M12 male connector, 4-pin, 150 mm length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper alignment and secure mounting according to industrial safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67/IP69K rated housing reduces waste by extending product life
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HSE18B-P4B1BA through-beam photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
