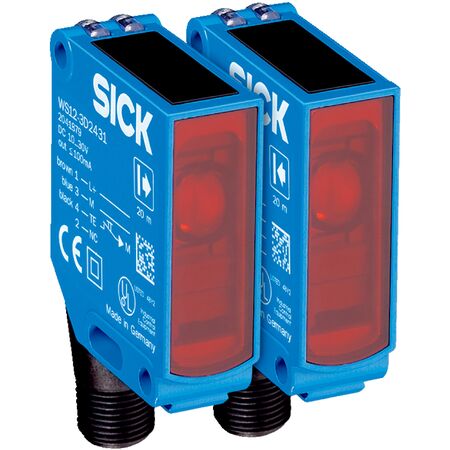

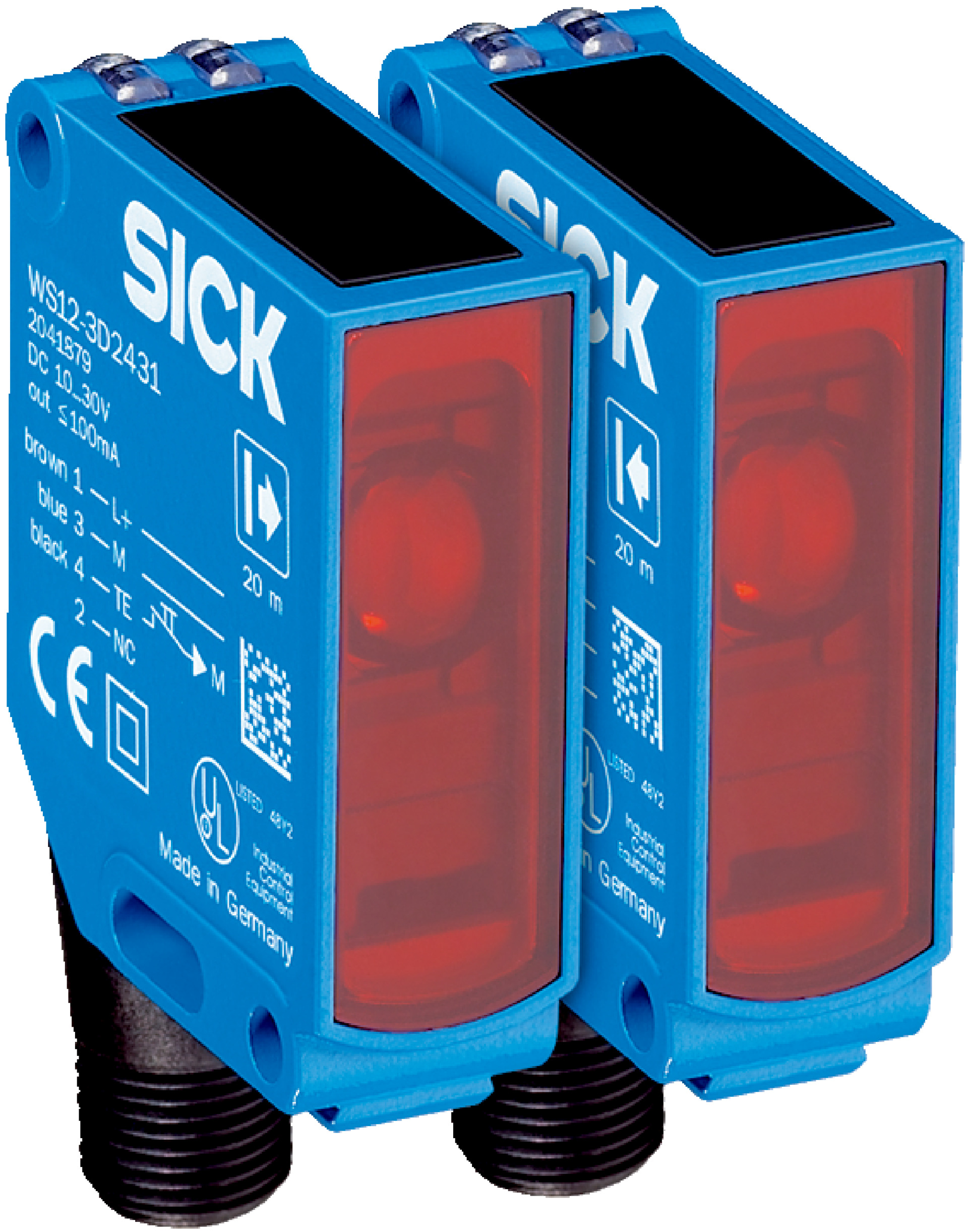

Through-Beam Photoelectric Sensor | 15m Sensing Range | PinPoint LED | IP66/IP67/IP69K Rated | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of 0 m to 15 m and a PinPoint LED light source with a wavelength of 640 nm. With robust IP66/IP67/IP69K protection ratings and a high switching frequency of up to 1,500 Hz, this sensor is perfect for object detection, speed, and length monitoring in manufacturing processes, ensuring safety and quality control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 20 m
- Sensing range: 0 m to 15 m
- Light source: PinPoint LED
- Type of light: Visible red light
- Light spot size at 15 m: Ø 220 mm
- Wave length: 640 nm
- Adjustment: IO-Link
- Angle of dispersion: Approx. 1.5°
- Supply voltage UB: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption sender: ≤ 30 mA
- Current consumption receiver: ≤ 15 mA
- Protection class: III
- Digital output type: PNP
- Switching mode: Light/dark switching
- Signal voltage PNP HIGH/LOW: > Uv - 2.5 V / approx. 0 V
- Output current Imax: ≤ 100 mA
- Response time: 200 µs to 300 µs
- Switching frequency: up to 1,500 Hz
- Housing: Metal, zinc diecast
- Front screen: Plastic, PMMA
- Connection: Male connector M12, 4-pin
- Enclosure rating: IP66, IP67, IP69K
- Ambient operating temperature: -40 °C to +60 °C
- Ambient storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 48.5mm x 42mm x 15.6mm
- Weight: 0.12 kg
Key Features
- Through-beam photoelectric sensor with a sensing range of 0 m to 15 m
- PinPoint LED visible red light with a wavelength of 640 nm
- Angle of dispersion approximately 1.5°
- IO-Link communication interface with COM2 (38.4 kBaud) data transmission
- High switching frequency up to 1,500 Hz with light/dark switching mode
- Robust metal zinc diecast housing with IP66, IP67, and IP69K protection ratings
- Operating temperature range from -40 °C to +60 °C
- Smart task functions for speed and length monitoring with impulse width and shift timer functions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection and measurement
- Speed and length monitoring in manufacturing processes
- Safety and quality control in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China-RoHS and ECOLAB certificates ensuring environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE12C-3P2430A72 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and monitoring applications.
