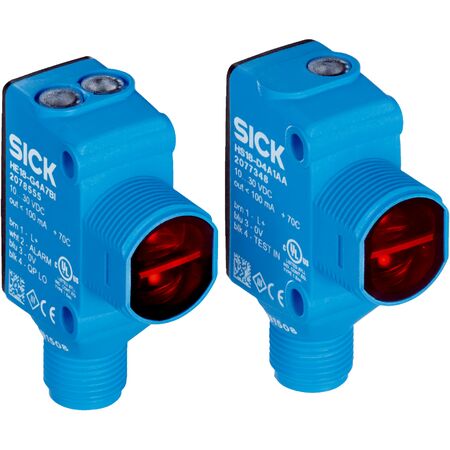

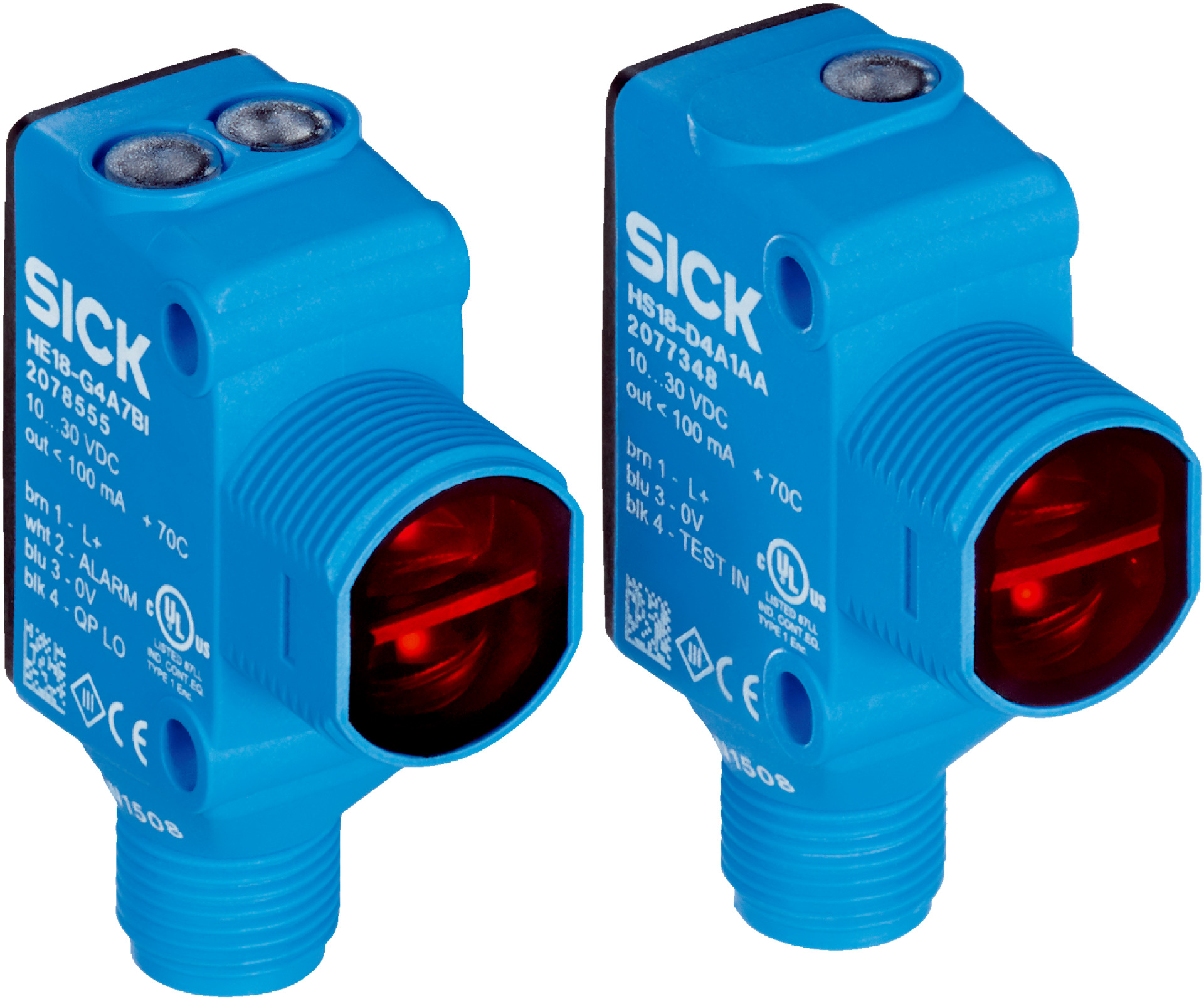

Through-Beam Photoelectric Sensor HSE18-P4A2AA | 20m Sensing Range | Fast Response Time | IP67 & IP69K Rated | by SICK
The HSE18-P4A2AA Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 20 meters and a fast response time of ≤ 0.5 ms. With robust IP67 and IP69K protection ratings, this sensor is perfect for manufacturing process control and safety monitoring in production lines, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 25 m, typical 0 m to 20 m
- Light source: PinPoint LED, wavelength 631 nm
- Light spot size at 10 m: 400 mm x 200 mm
- Supply voltage: 10 V DC to 30 V DC with ripple < 5 V pp
- Current consumption: ≤ 20 mA
- Switching output: PNP complementary outputs (Q1 light switching, Q2 dark switching)
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Housing material: Plastic (VISTAL®), Optics material: Plastic (PMMA)
- Enclosure rating: IP67, IP69K
- Operating temperature: –40 °C to +70 °C
- Storage temperature: –40 °C to +75 °C
- EMC: EN 60947-5-2 compliant
- Dimensions (H x L x W): 48.5mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter
- Light/dark switching mode with complementary PNP outputs
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Robust plastic housing (VISTAL®) with IP67 and IP69K protection ratings
- Wide ambient operating temperature range from –40 °C to +70 °C
- EMC compliant with EN 60947-5-2 for industrial radio safety
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable housing reduces waste through extended product life
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HSE18-P4A2AA Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
