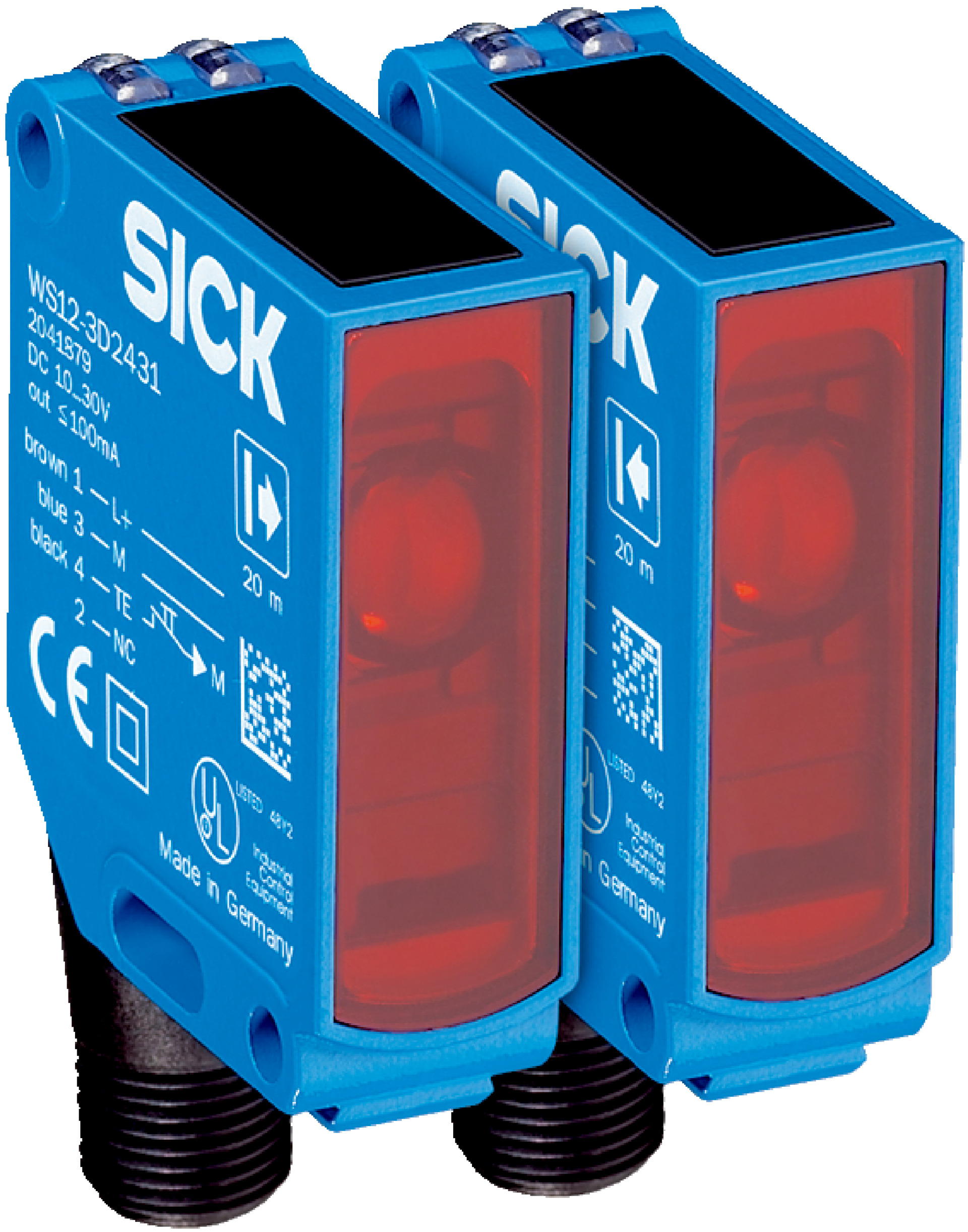

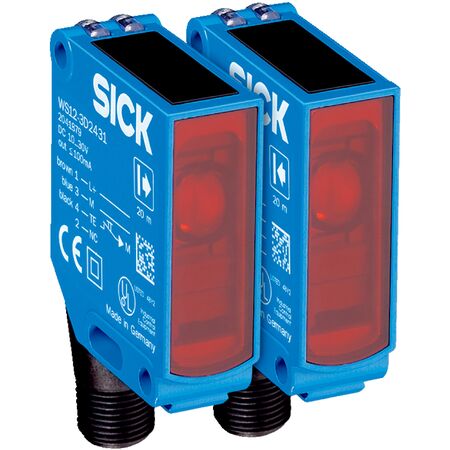

Through-Beam Photoelectric Sensor WSE12C-3P2430A91 | 20m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The WSE12C-3P2430A91 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 20 meters with a visible red light PinPoint LED. With robust IP66/IP67/IP69K protection ratings and fast response times, it's perfect for safety and monitoring in manufacturing processes, ensuring reliable object detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 20 m
- Light source: PinPoint LED, visible red light, 640 nm wavelength
- Light spot size at 15 m: Ø 220 mm
- Adjustment: IO-Link
- Angle of dispersion: Approx. 1.5°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption sender: ≤ 30 mA
- Current consumption receiver: ≤ 15 mA
- Digital output: PNP, light/dark switching, max output current ≤ 100 mA
- Response time: 100 µs repeatability, switching frequency up to 1,500 Hz
- Housing: Metal, zinc diecast with plastic PMMA front screen
- Connection: Male connector M12, 4-pin
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Communication: IO-Link COM2 (38.4 kBaud), cycle time 2.3 ms
- Smart tasks: Timestamp, debouncing, logic and timer functions
- Dimensions (H x L x W): 48.5mm x 42mm x 15.6mm
- Weight: 0.12 kg
Key Features
- Through-beam photoelectric sensor with a sensing range up to 20 m
- PinPoint LED visible red light with 640 nm wavelength
- IO-Link communication interface with COM2 (38.4 kBaud) data transmission
- High switching frequency up to 1,500 Hz and fast response time
- Robust metal zinc diecast housing with IP66, IP67, and IP69K protection ratings
- Operating temperature range from -40 °C to +60 °C
- Multiple switching modes including light/dark switching and logic outputs
- Advanced smart tasks including timestamp and debouncing functions
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE12C-3P2430A91 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
