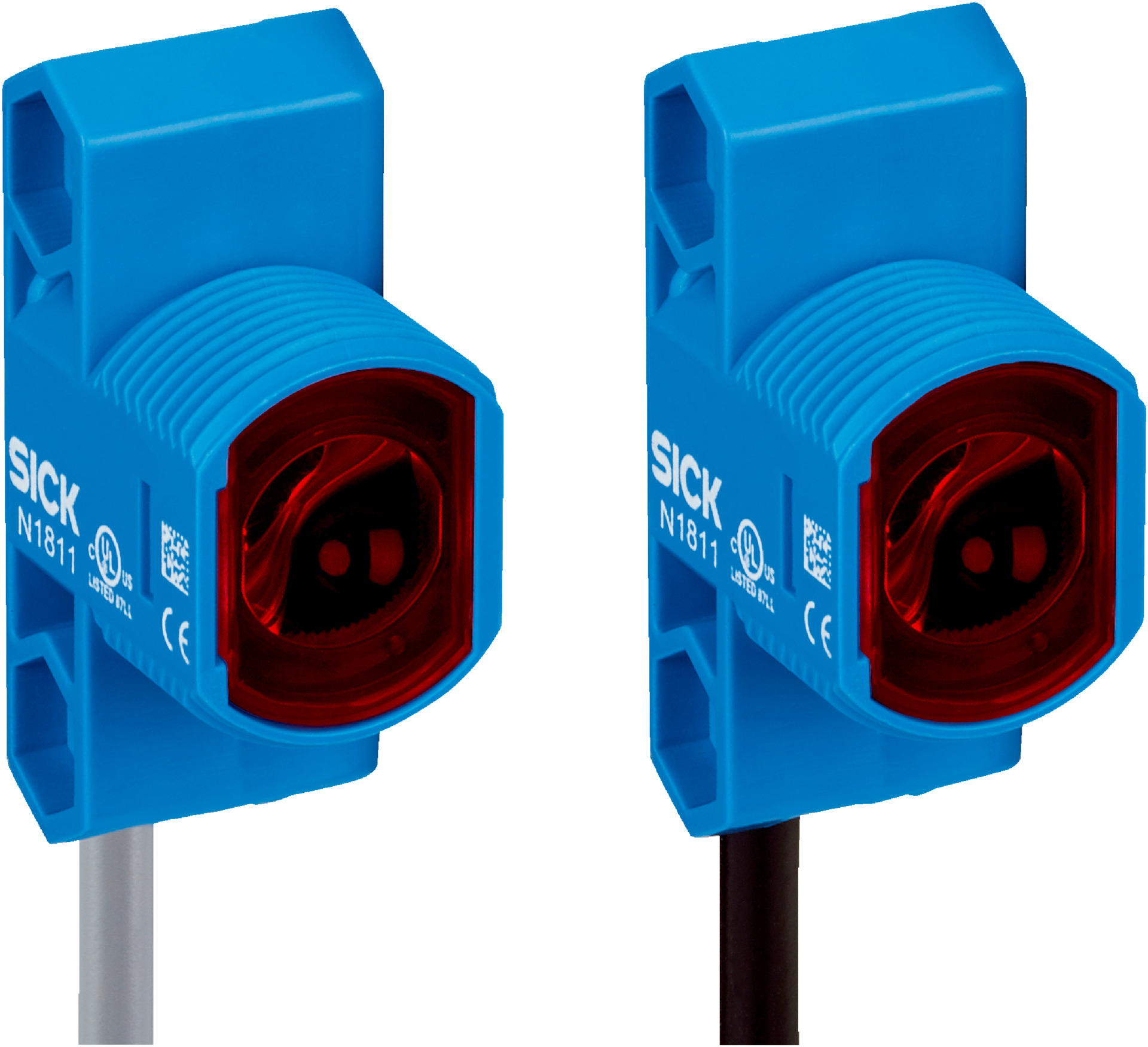

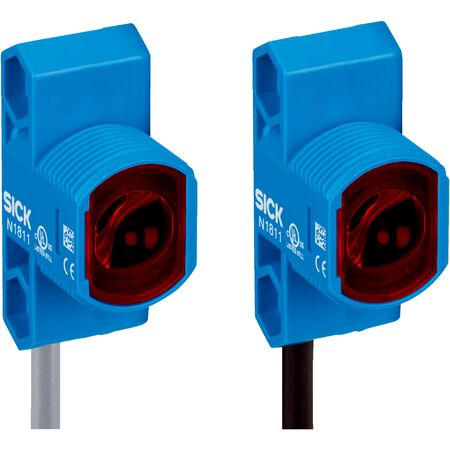

Through-beam Photoelectric Sensor ZSE18-2AB1G8 | 20m Sensing Range | IP67 Rated | Fast Response Time | by SICK
The ZSE18-2AB1G8 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 20 meters and a fast response time of ≤ 500 µs. With its IP67 rated enclosure, this sensor ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Housing design: Hybrid with M18 thread diameter
- Sensing range max.: 22 m, typical 20 m
- Light source: Visible red LED, wavelength 625 nm
- Light spot size: Ø 125 mm at 1000 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN, light and dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 34.8mm x 21.9mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red LED light source
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter
- Push-pull PNP/NPN switching outputs with light and dark switching modes
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZSE18-2AB1G8 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
