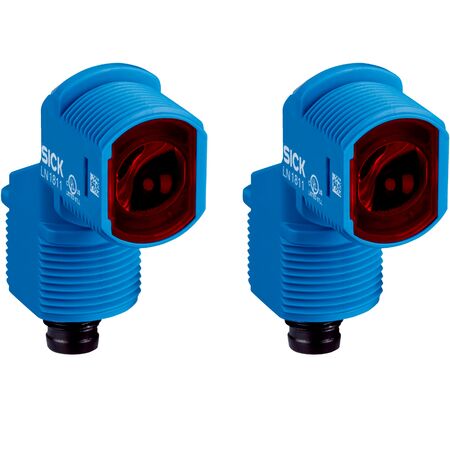

Through-beam Photoelectric Sensor | 20m Sensing Range | IP67 Rated | Fast Response Time | by SICK
The Through-beam Photoelectric Sensor ZSE18-4AB3A8 is designed for industrial automation, offering a sensing range of up to 20 meters with a visible red LED light source. With a robust IP67 rated housing and a fast response time of ≤ 500 µs, it's perfect for precise object detection in manufacturing and safety systems. Ideal for harsh environments, this sensor ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 20 m
- Light source: Visible red LED, wavelength 625 nm
- Light spot size: Ø 125 mm at 1000 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN, light and dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Male M8, 4-pin connector
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 40.8mm x 33.3mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red LED light source
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter for flexible mounting
- Push-pull PNP/NPN switching outputs with light and dark switching modes
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- Robust plastic ABS housing with IP67 enclosure rating for harsh environments
- Wide ambient operating temperature range from -40 °C to +55 °C
- Male M8 4-pin connector for easy electrical connection
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems requiring precise sensing
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste by extending product lifespan
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZSE18-4AB3A8 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
