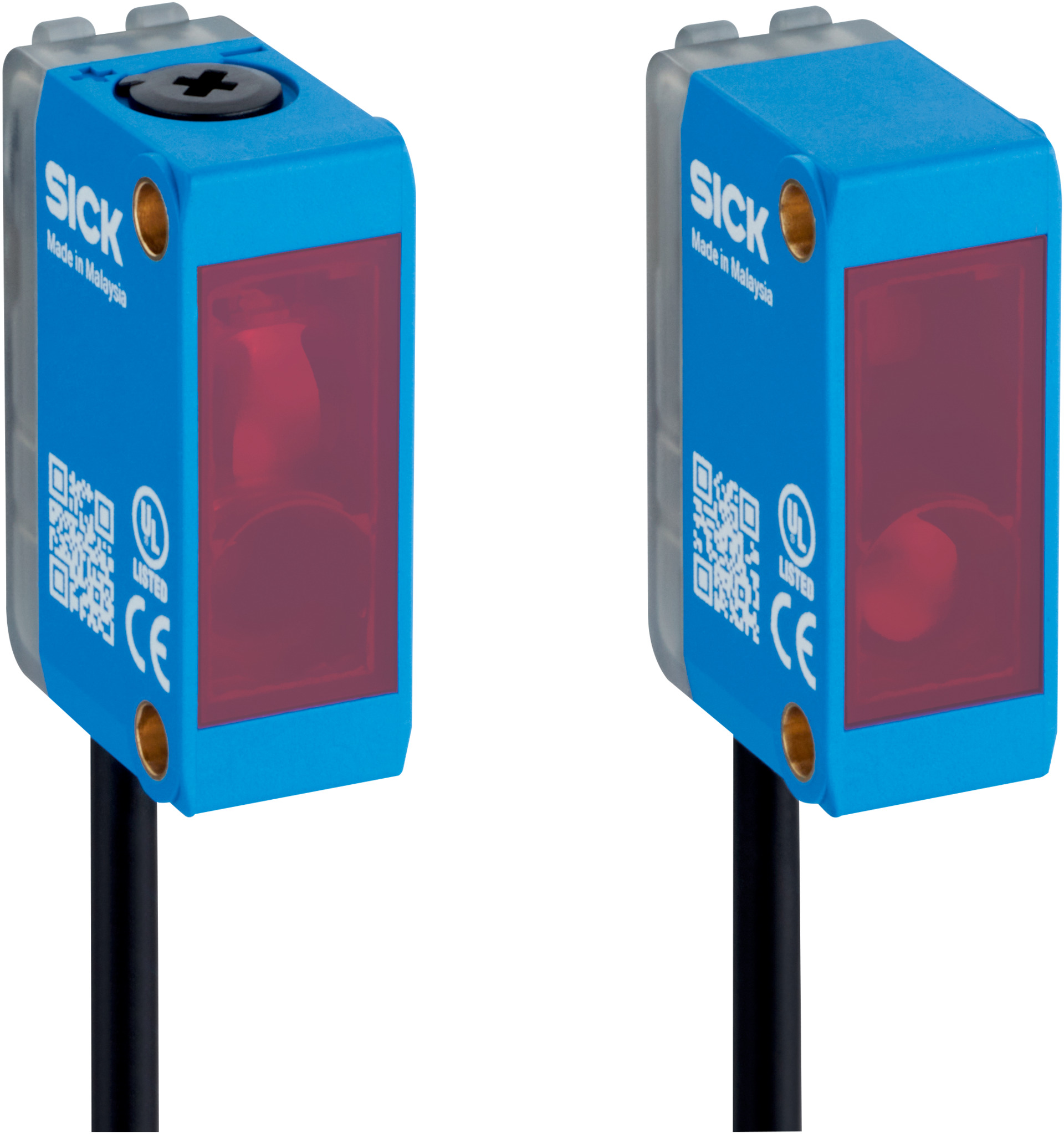

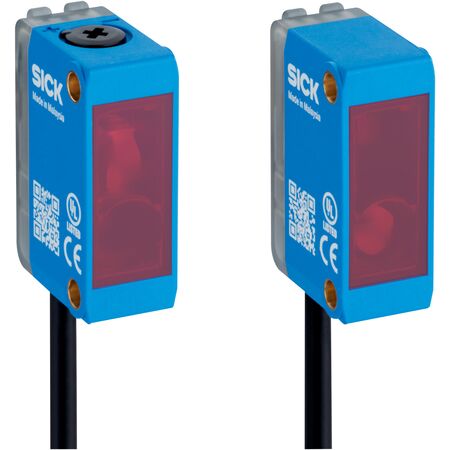

Through-Beam Photoelectric Sensor GSE6SI-1GE1217EZZZ | 20m Sensing Range | IP67 Rated | Fast Response Time | by SICK
The GSE6SI-1GE1217EZZZ Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 20 meters and a fast response time of ≤ 625 µs. With an IP67 rating and robust ABS housing, it’s perfect for harsh environments, ensuring reliable object detection in material handling and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 20 m (recommended 0 m to 16 m)
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 329 mm at 10 m
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Output type: 1 x NPN open collector, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Plastic ABS
- Front screen: Plastic PMMA
- Cable: 3-wire, 2 m length, PVC
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with sensing range up to 20 m
- Infrared LED light source with rectangular light spot
- Adjustable sensing range via 270° potentiometer
- Operating mode switch for light/dark switching inversion
- LED indicators for power and object detection status
- High switching frequency of 1000 Hz and fast response time ≤ 625 µs
- Robust plastic ABS housing with IP67 rating for harsh environments
- Wide ambient operating temperature range from -30 °C to +55 °C
- Protection against reverse polarity, overcurrent, and short-circuit
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GSE6SI-1GE1217EZZZ Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
