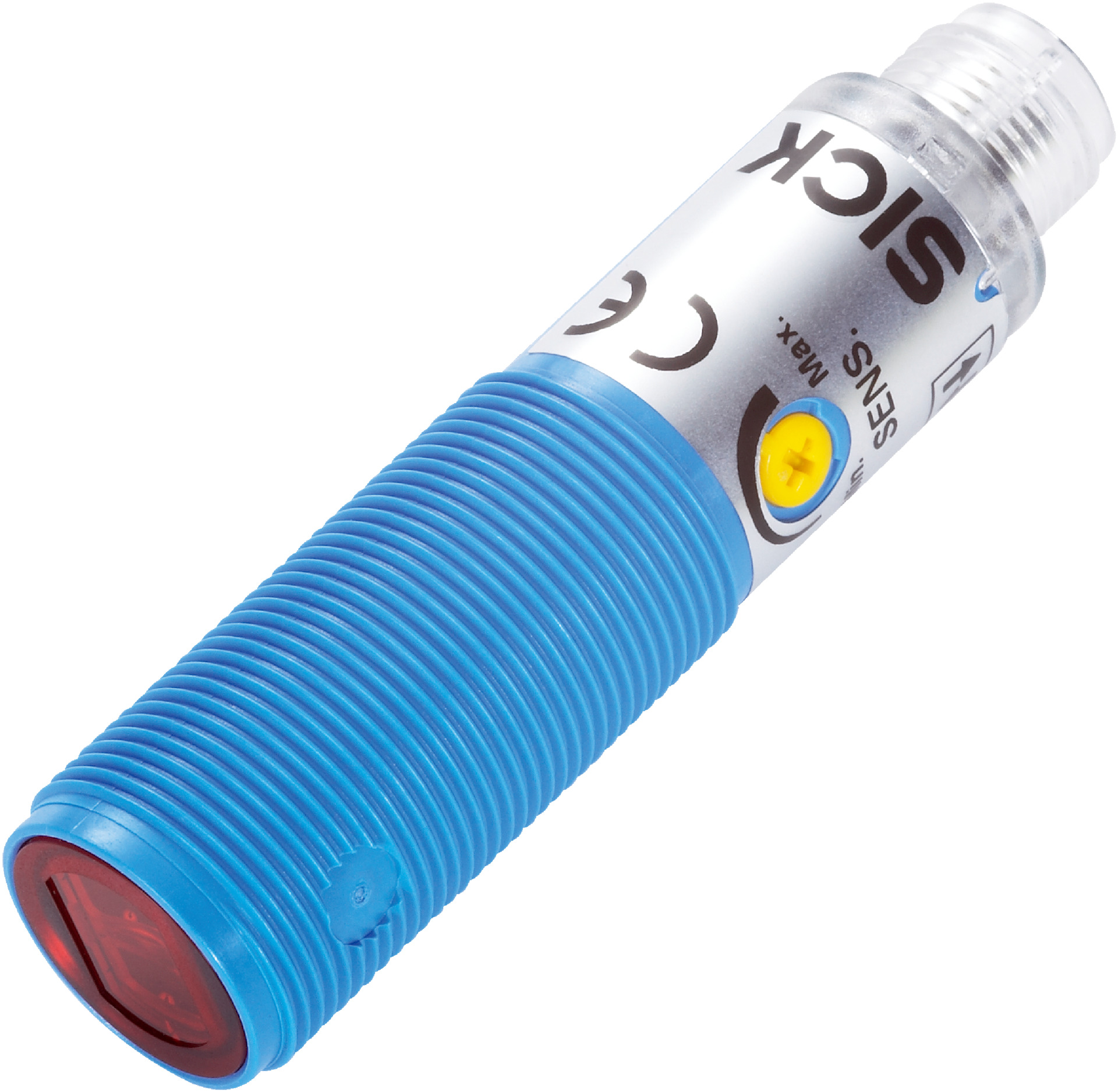

Through-beam Photoelectric Sensor VSE180-2P32437 | 20m Sensing Range | IP67 Rated | Fast Response Time | by SICK
The Through-beam Photoelectric Sensor VSE180-2P32437 is designed for industrial automation, featuring a sensing range of up to 20 meters and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 20 m (max 28 m)
- Light source: Visible red LED, wavelength 645 nm
- Adjustment: Potentiometer, 270° sensitivity
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: 20 mA, receiver: 15 mA
- Switching output: PNP, dark switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: M12 connector, 3-pin
- Protection class: III
- Housing material: Plastic PBT/PC, optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Dimensions (H x L x W): 18mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light LED
- Sensing range up to 20 meters, max 28 meters
- Cylindrical housing design with M18 x 1 thread diameter
- Potentiometer adjustment with 270° sensitivity control
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK VSE180-2P32437 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
