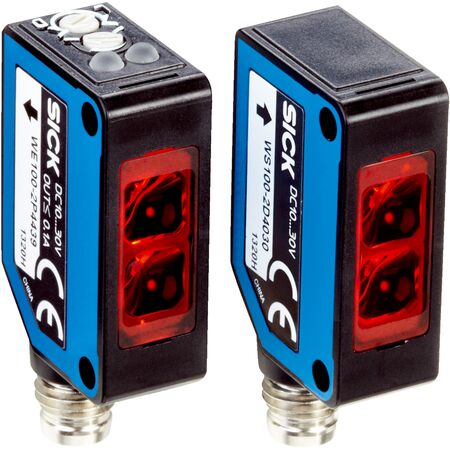

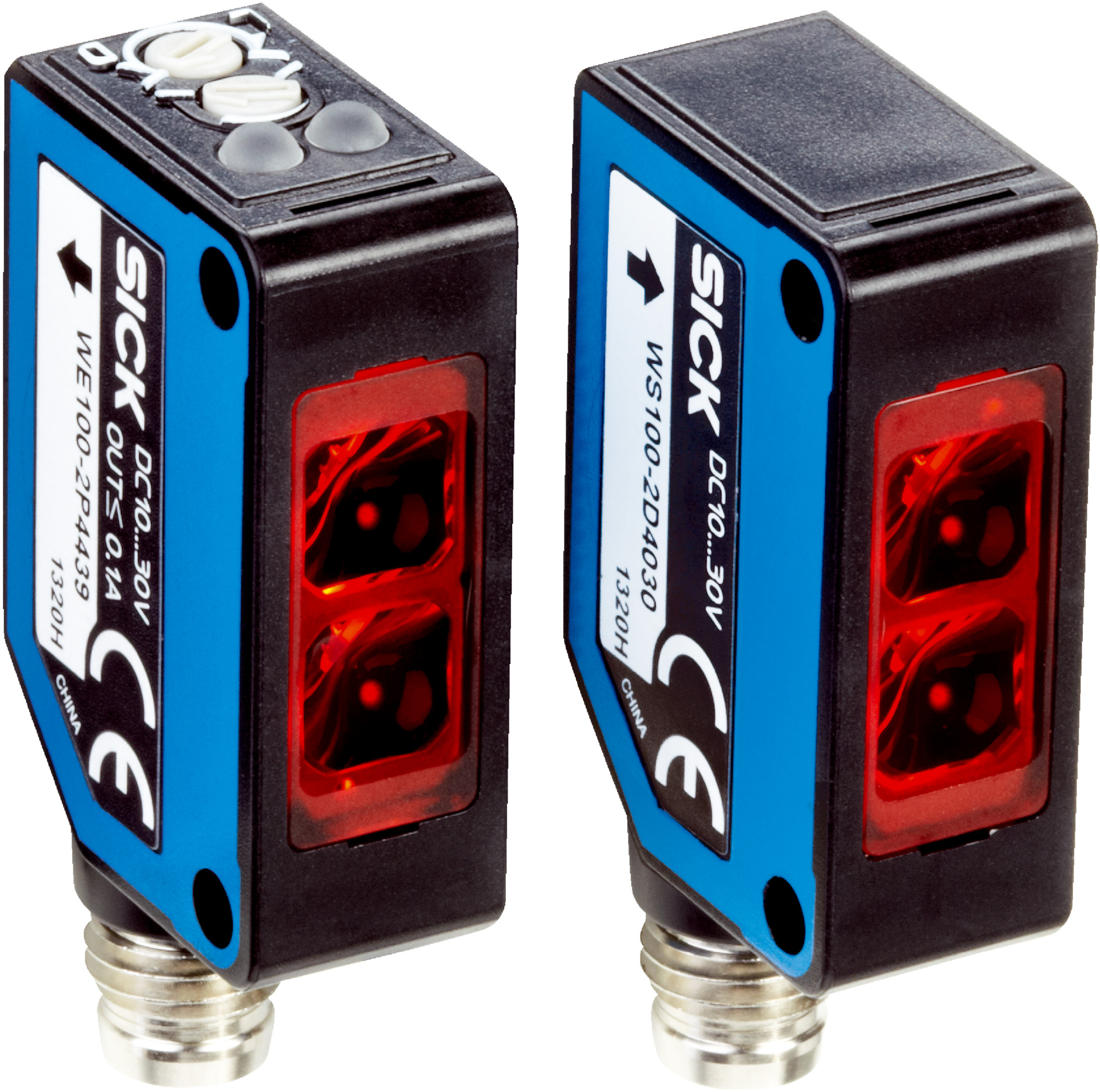

Through-Beam Photoelectric Sensor WS/WE100-2N3439 | 20m Sensing Range | IP67 Rated | Fast Response Time | by SICK
The WS/WE100-2N3439 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 20 meters and a fast response time of ≤ 0.5 ms. With an IP67 enclosure rating and robust plastic housing, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 20 m (max 33 m)
- Light source: Visible red LED, wavelength 632 nm
- Light spot size: Ø 850 mm at 12 m
- Supply voltage: 10 V DC to 30 V DC
- Switching output: NPN, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: M8, 3-pin connector
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 20 m, max 33 m
- Potentiometer adjustment with 270° sensitivity control
- NPN switching output with selectable light/dark switching mode
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Robust plastic housing with IP67 enclosure rating
- Includes stainless steel mounting brackets
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with ≤ 15 mA sender and ≤ 20 mA receiver
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WS/WE100-2N3439 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
