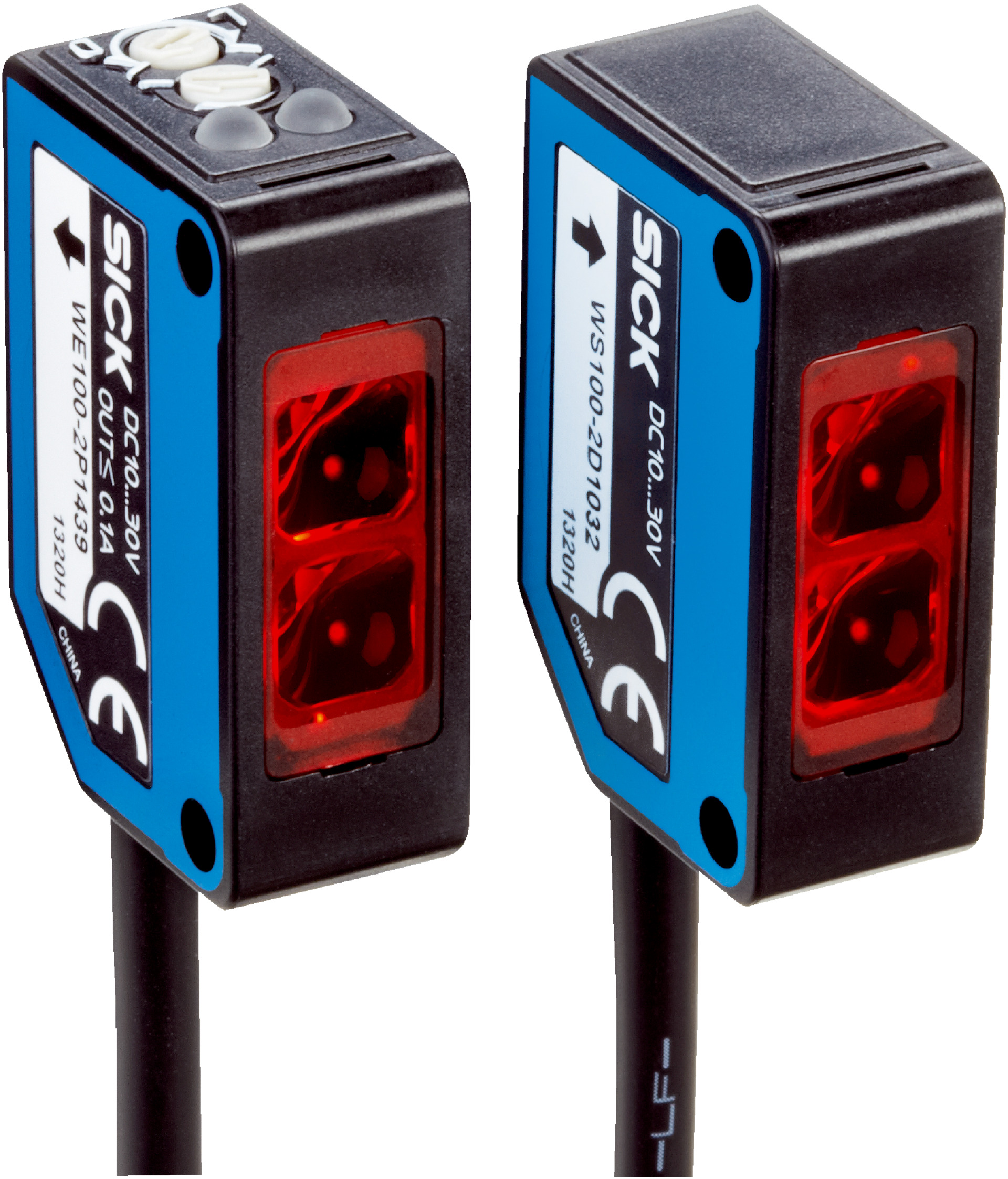

Through-beam Photoelectric Sensor | 20m Sensing Range | IP67 Enclosure | Fast Response Time | by SICK
The Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 20 meters and a fast response time of ≤ 0.5 ms. With its robust IP67 enclosure and visible red light, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 33 m
- Sensing range: 0 m to 20 m
- Type of light: Visible red light (632 nm wavelength)
- Light source: LED
- Light spot size at 12 m: Ø 850 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ± 10%
- Power consumption sender: ≤ 15 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: PNP
- Switching mode: Dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 3-wire cable, 5 m length
- Cable material: Plastic, PVC
- Conductor cross section: 0.18 mm²
- Circuit protection: A, B, D
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Ambient operating temperature: –25 °C to +55 °C
- Ambient storage temperature: –40 °C to +70 °C
- Includes 2 stainless steel mounting brackets (1.4301/304)
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 20 meters
- Rectangular housing design with IP67 enclosure rating
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- PNP switching output with dark switching mode
- Robust plastic housing with stainless steel mounting brackets included
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with ≤ 15 mA sender and ≤ 20 mA receiver
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

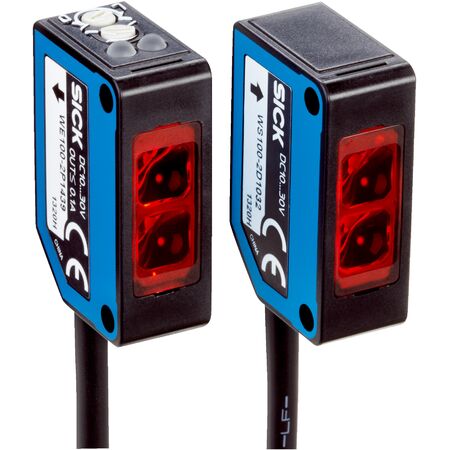

The SICK WS/WE100-2P1239S01 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
