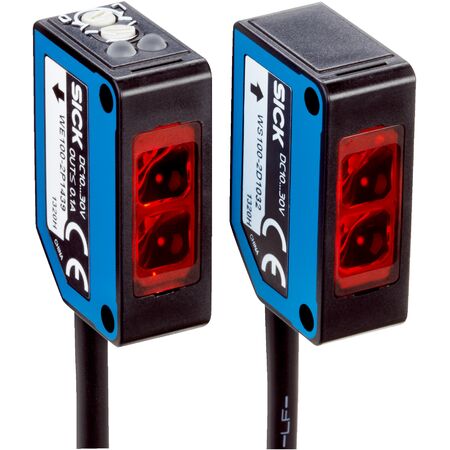

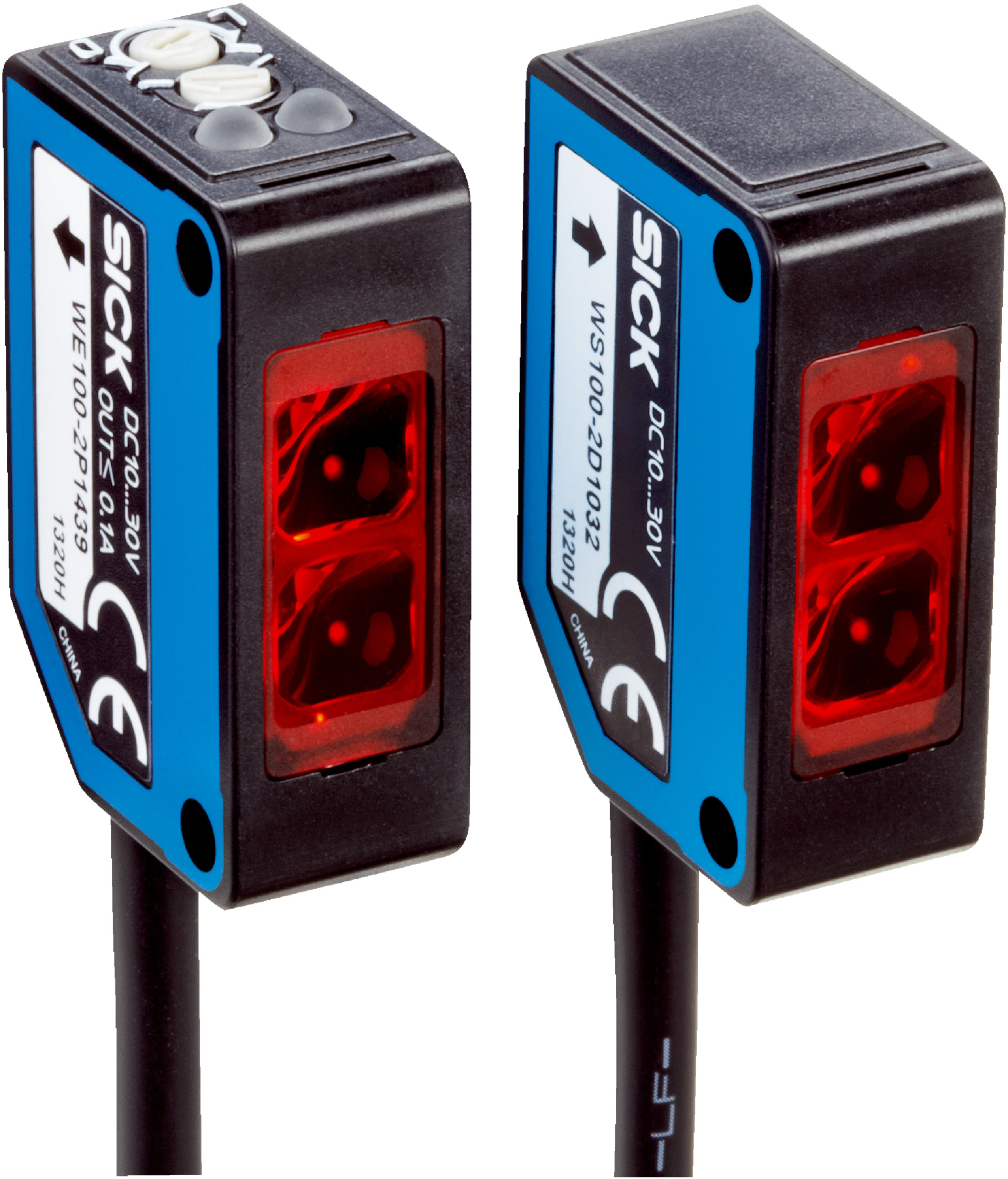

Through-Beam Photoelectric Sensor WS/WE100-2P1409S06 | 20m Sensing Range | IP67 Rated | Fast Response Time | by SICK
The Through-Beam Photoelectric Sensor WS/WE100-2P1409S06 is designed for industrial automation, offering a sensing range of up to 20 meters and a fast response time of ≤ 0.5 ms. With an IP67 enclosure rating and durable plastic housing, it's perfect for safety monitoring and object detection in manufacturing processes. This sensor features a visible red LED light source and includes stainless steel mounting brackets for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 20 m (max 33 m)
- Light source: Visible red LED, wavelength 632 nm
- Light spot size: Ø 850 mm at 12 m
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Power consumption: ≤ 15 mA (sender), ≤ 20 mA (receiver)
- Switching output: PNP with light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with M8, 3-pin connector, 200 mm length
- Housing material: Plastic ABS/PC/POM, optics plastic PMMA
- Protection class: III, Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Includes 2 stainless steel mounting brackets
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 20 meters, max 33 meters
- Rectangular housing design with IP67 enclosure rating
- Adjustable sensitivity via 270° potentiometer
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Durable plastic housing with stainless steel mounting brackets
- Cable with M8, 3-pin connector for easy installation
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 15 mA sender and ≤ 20 mA receiver
- Durable materials and long service life reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WS/WE100-2P1409S06 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
