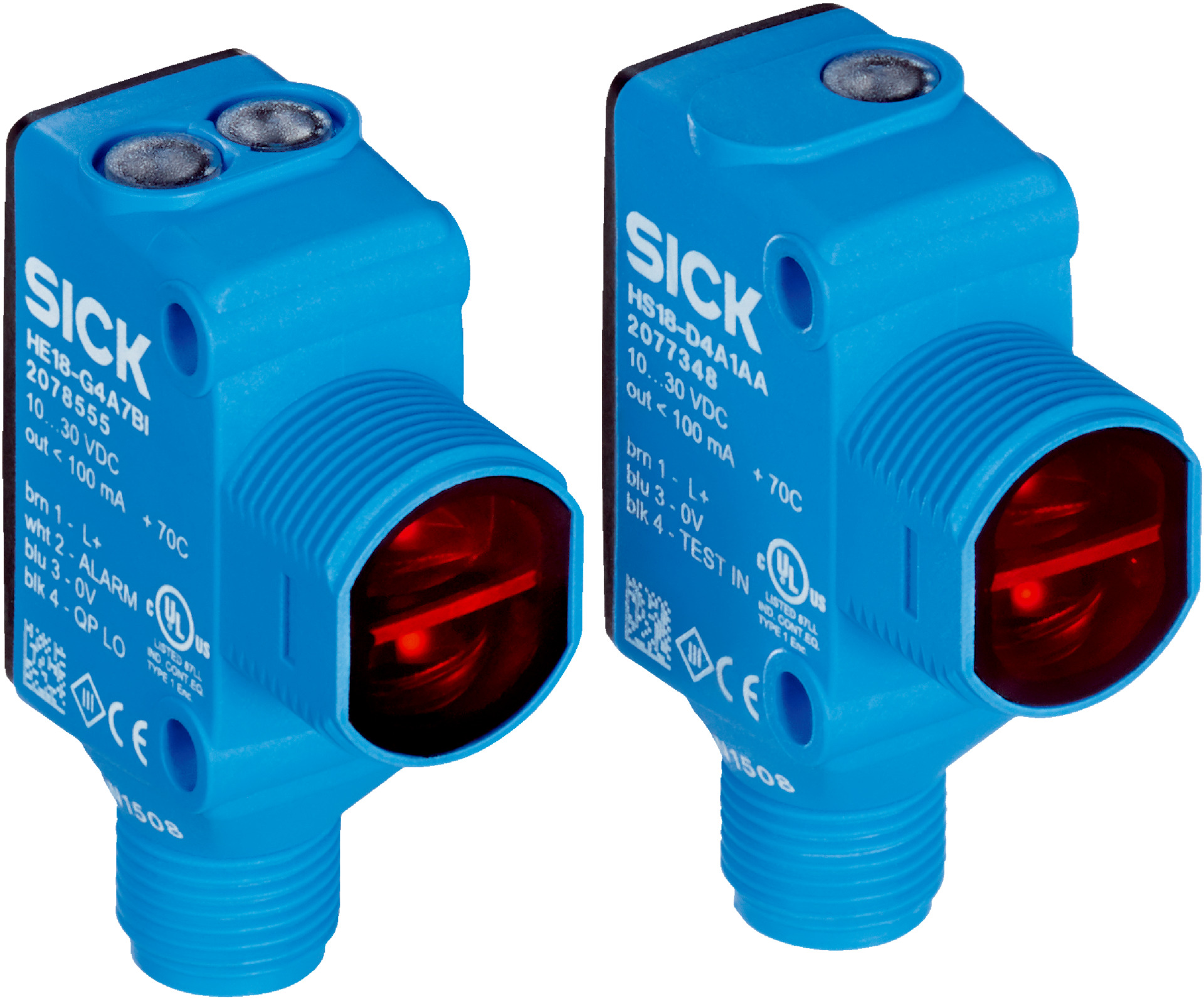

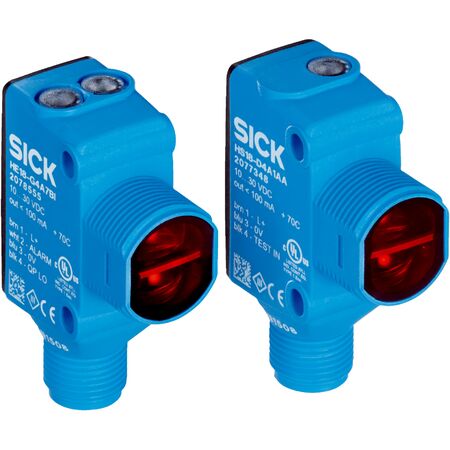

Through-beam Photoelectric Sensor HSE18-A4A2BH | 20m Sensing Range | IP67 & IP69K Rated | Fast Response Time | by SICK
The HSE18-A4A2BH Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 20 meters with a fast response time of ≤ 0.5 ms. Ideal for object detection and safety monitoring in manufacturing processes, this sensor features a durable IP67/IP69K housing and dual switching outputs (PNP and NPN) for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 20 m
- Light source: PinPoint LED, visible red light at 631 nm wavelength
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP and NPN, dark switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Enclosure rating: IP67, IP69K
- Operating temperature range: -40 °C to +70 °C
- Storage temperature range: -40 °C to +75 °C
- Circuit protection: A, B, D
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 49mm x 32mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter
- Signal strength light bar for easy adjustment
- IP67 and IP69K rated for robust protection
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Dual switching outputs: PNP and NPN with dark switching mode
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67/IP69K housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK HSE18-A4A2BH Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
