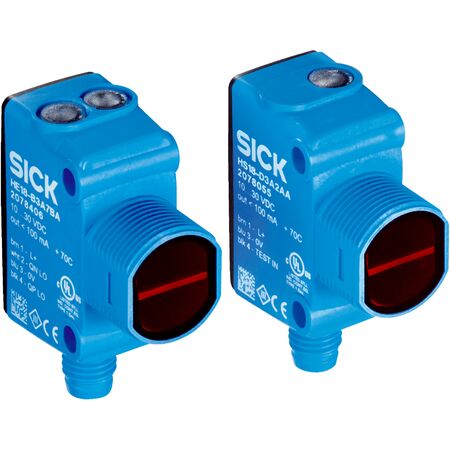

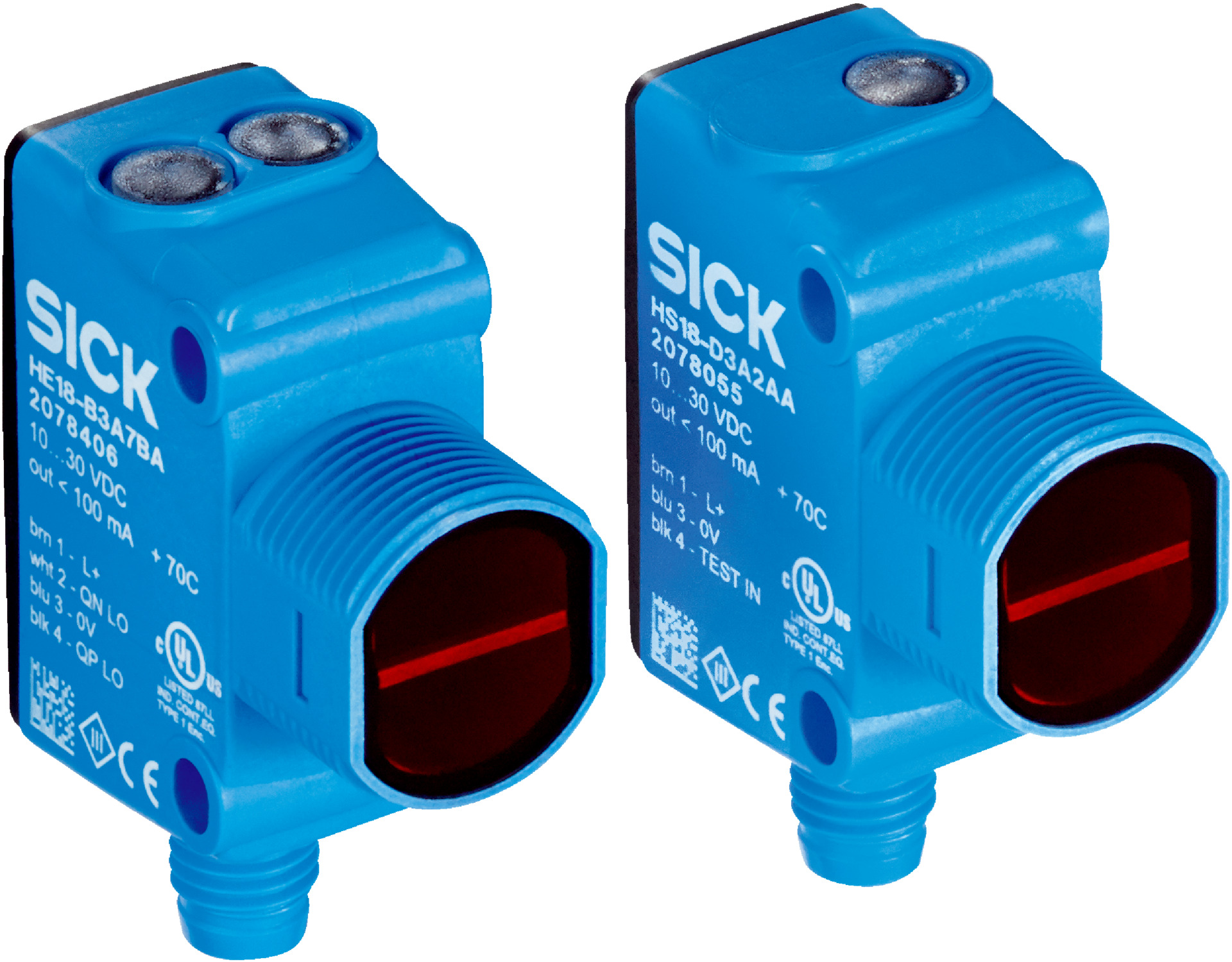

Through-Beam Photoelectric Sensor HSE18-P3A2BA | 20m Sensing Range | IP67 & IP69K Rated | Fast Response Time | by SICK
The HSE18-P3A2BA Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 20 meters with visible red light. Its hybrid housing with M18 thread ensures easy installation, while the IP67 and IP69K ratings make it suitable for harsh environments. With a fast response time of ≤ 0.5 ms, this sensor is perfect for safety and monitoring applications in manufacturing and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Housing design: Hybrid with M18 thread diameter
- Sensing range max.: 0 m to 25 m, typical 0 m to 20 m
- Light source: PinPoint LED, visible red light at 631 nm wavelength
- Light spot size at 10 m: 400 mm x 200 mm
- Supply voltage: 10 V DC to 30 V DC with ripple < 5 V pp
- Current consumption: ≤ 20 mA
- Switching output: PNP complementary with light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M8, 4-pin
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP67, IP69K
- Operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +75 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 45mm x 32mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter
- Signal strength light bar for easy alignment
- IP67 and IP69K rated for harsh environments
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Complementary PNP switching outputs with light/dark switching modes
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and secure mounting using the M18 threaded housing and supplied fastening nut.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable IP67/IP69K rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK HSE18-P3A2BA Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
