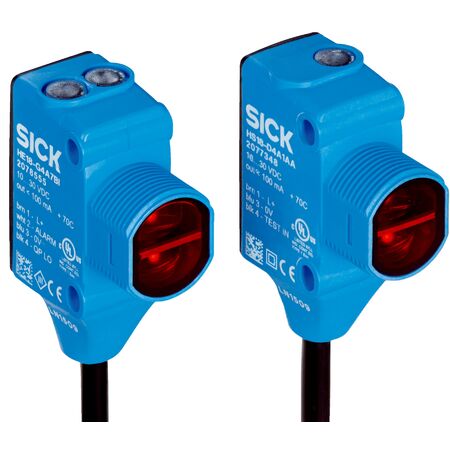

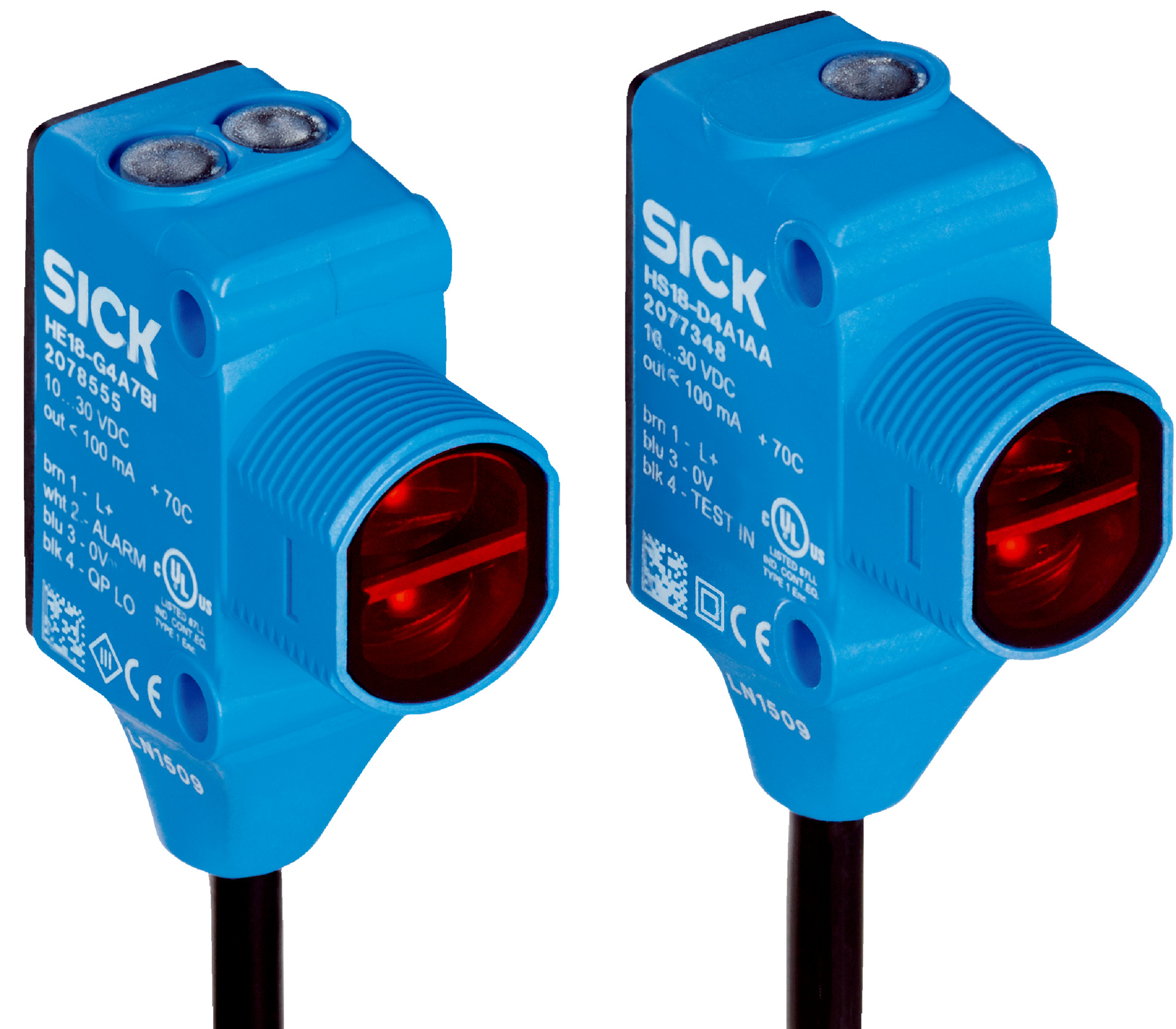

Through-beam Photoelectric Sensor HSE18-A1G2BA | 20m Sensing Range | IP67 & IP69K Rated | by SICK
The HSE18-A1G2BA Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 20 meters with a visible red light source. Built for robust performance, it features a high switching frequency of 1000 Hz and operates in extreme temperatures from -40°C to +70°C. Ideal for safety monitoring and object detection in manufacturing processes, this sensor ensures reliable operation in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 20 m
- Light source: PinPoint LED, 631 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP and NPN, dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Cable open end, 2 m, PVC
- Protection class: III
- Enclosure rating: IP67, IP69K
- Operating temperature: -40 °C to +70 °C
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Dimensions (H x L x W): 46mm x 32mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red light with PinPoint LED light source
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter
- Signal strength light bar for easy alignment
- High switching frequency of 1000 Hz
- Dark switching mode with PNP and NPN outputs
- Robust plastic VISTAL® housing with IP67 and IP69K protection
- Wide ambient operating temperature range from -40°C to +70°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper alignment and secure mounting.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67/IP69K rated housing reduces waste from replacements
- Long operational life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK HSE18-A1G2BA Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
