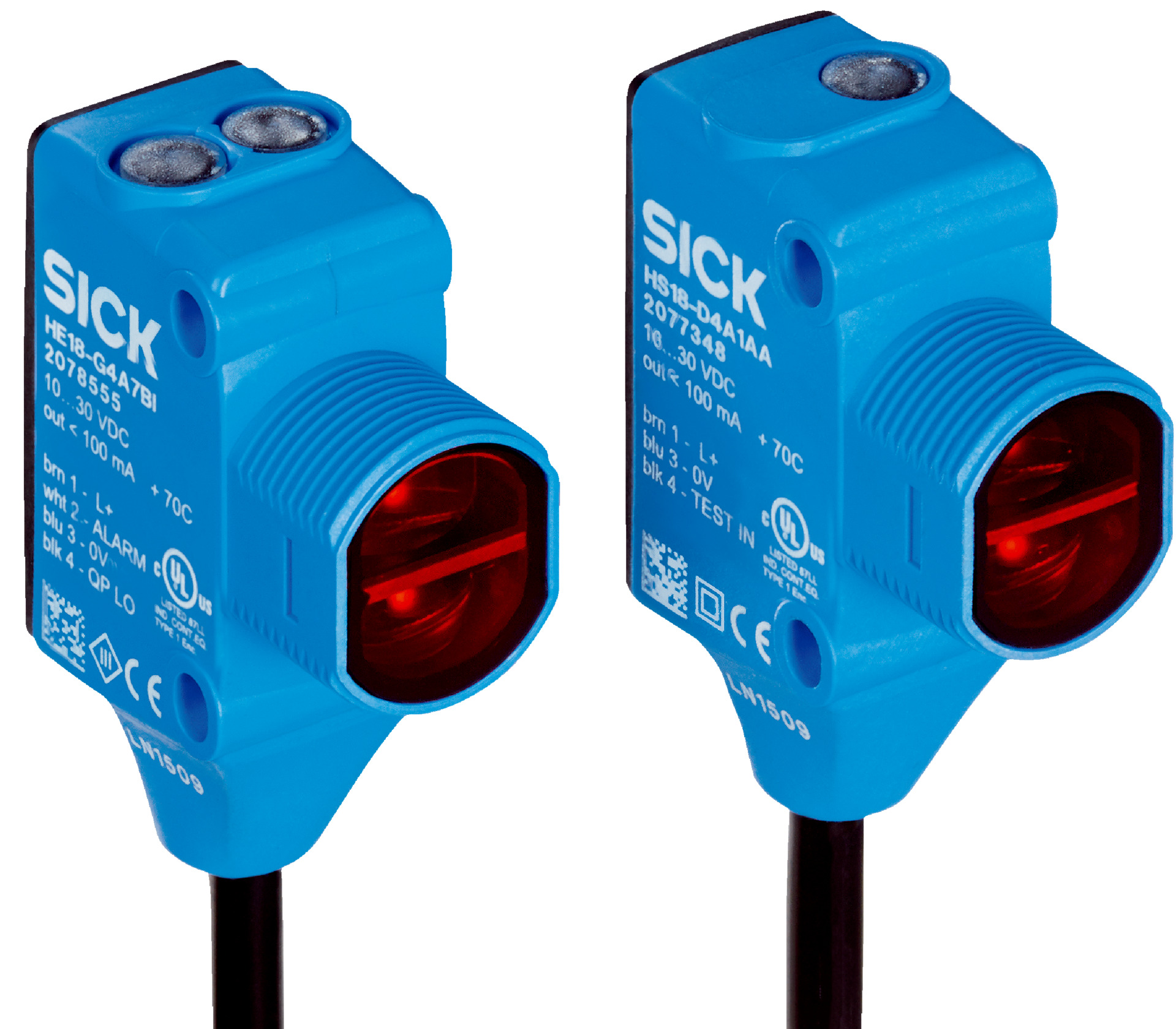

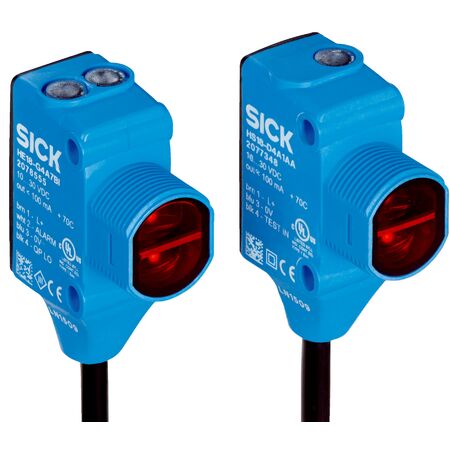

Through-beam Photoelectric Sensor HSE18-B1G2BA | 20m Sensing Range | IP67 & IP69K Rated | by SICK
The HSE18-B1G2BA Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 20 meters with a visible red light. With a high switching frequency of 1,000 Hz and robust IP67/IP69K ratings, it excels in harsh environments, making it ideal for manufacturing process control and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 20 m
- Light source: PinPoint LED, 631 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP and NPN light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Cable open end, 2 m, PVC
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP67, IP69K
- Operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +75 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 46mm x 32mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter
- Signal strength light bar for easy alignment
- High switching frequency of 1,000 Hz
- IP67 and IP69K rated for harsh environments
- Wide operating temperature range from -40°C to +70°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK HSE18-B1G2BA Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
