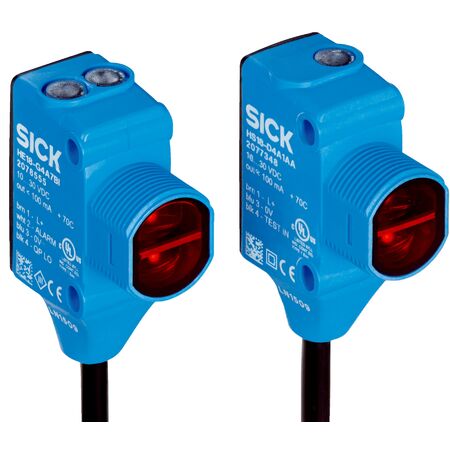

Through-beam Photoelectric Sensor HSE18-P3B2BA | 20m Sensing Range | IP67 & IP69K Rated | by SICK
The HSE18-P3B2BA Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 20 meters and a high switching frequency of 1,000 Hz. With its durable IP67 and IP69K rated housing, it operates effectively in harsh environments, making it ideal for manufacturing process control and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 25 m, typical sensing range: 20 m
- Light source: PinPoint LED, wavelength 631 nm
- Switching output: PNP complementary with light/dark switching
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Output current max: ≤ 100 mA
- Connection type: Cable with M8 male connector, 4-pin, 150 mm
- Housing material: Plastic VISTAL®, optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67, IP69K
- Operating temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 46mm x 32mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter
- Signal strength light bar for easy alignment
- High switching frequency of 1,000 Hz
- IP67 and IP69K rated for harsh environments
- Operating temperature range from -40°C to +70°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper alignment and secure mounting according to industrial safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable IP67/IP69K rated housing reduces waste by extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK HSE18-P3B2BA Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
