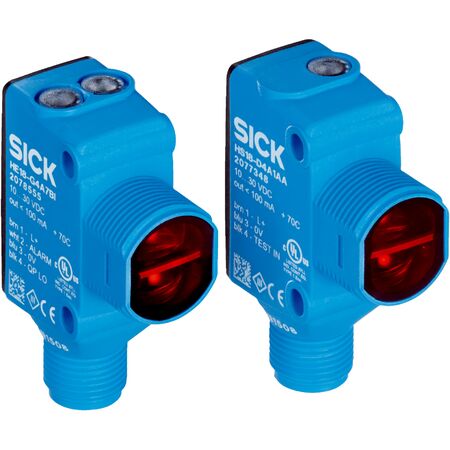

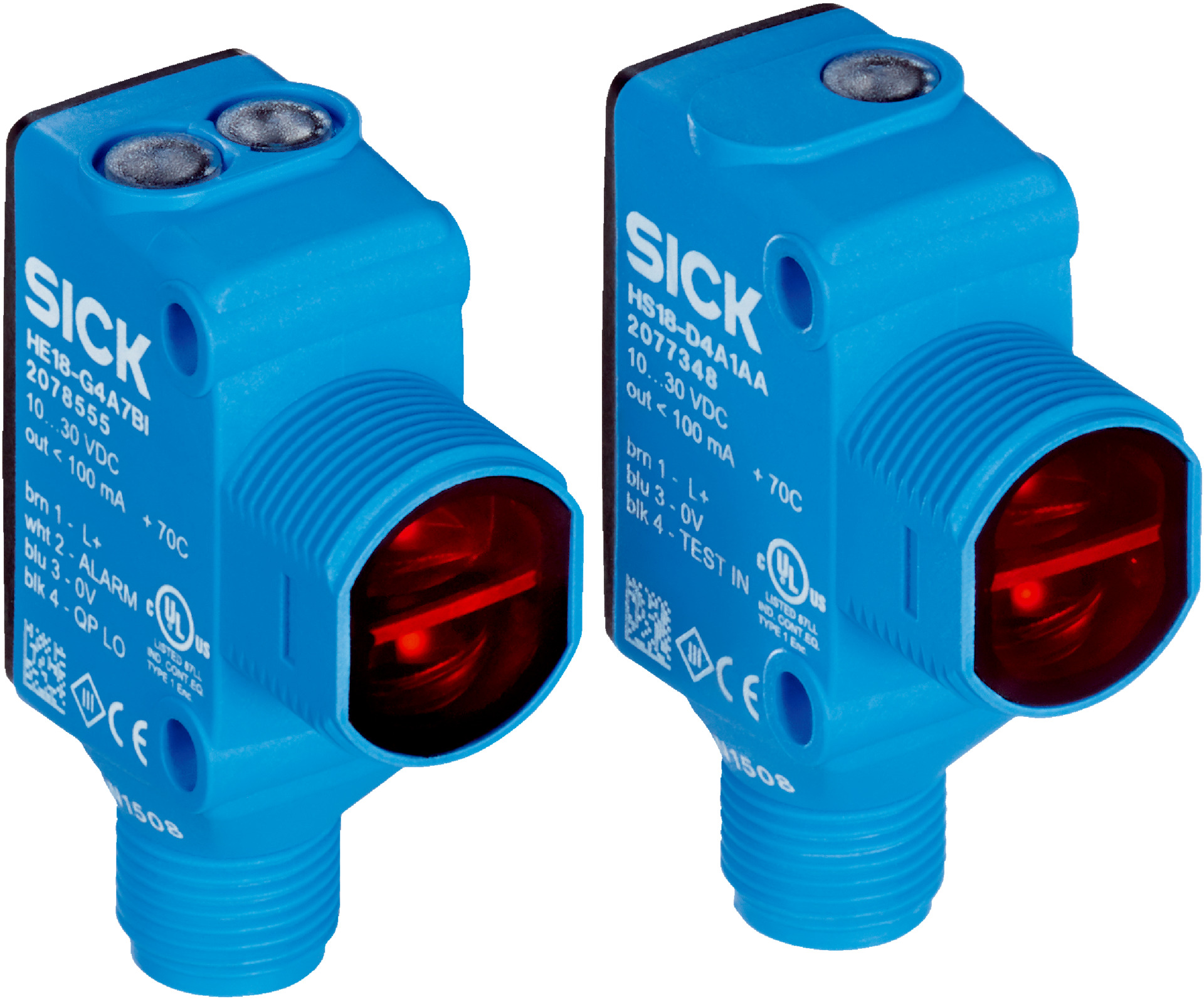

Through-Beam Photoelectric Sensor HSE18-A4A2BD | 20m Sensing Range | IP67 & IP69K Rated | by SICK
The HSE18-A4A2BD Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 20 meters with a visible red light. Built for reliability, it features a high switching frequency of 1,000 Hz and is IP67/IP69K rated for dust and water protection. Ideal for object detection and safety monitoring in manufacturing processes, this sensor ensures efficient operation in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 20 m
- Light source: PinPoint LED, wavelength 631 nm
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP and NPN, dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Enclosure rating: IP67, IP69K
- Operating temperature: -40°C to +70°C
- Storage temperature: -40°C to +75°C
- Circuit protection: A, B, D types
- Dimensions (H x L x W): 49mm x 32mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter
- Signal strength light bar for easy alignment
- Adjustable off delay potentiometer (0 to 2 seconds)
- High switching frequency of 1,000 Hz
- IP67 and IP69K rated for dust and water protection
- Operating temperature range from -40°C to +70°C
- Male connector M12, 4-pin connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67/IP69K rated housing reduces waste from replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK HSE18-A4A2BD Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
