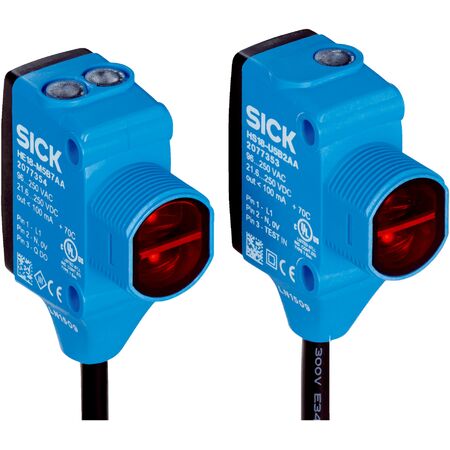

Through-Beam Photoelectric Sensor HSE18-M5B2AB | 20m Sensing Range | IP67 & IP69K Rated | by SICK
The HSE18-M5B2AB Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 20 meters with a visible red light. With a robust IP67 and IP69K rating, it ensures reliable performance in harsh environments. Ideal for object detection and safety monitoring in manufacturing processes, this sensor features a high switching frequency of 1,000 Hz and low power consumption, making it perfect for material handling and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 20 m
- Light source: PinPoint LED, wavelength 631 nm
- Supply voltage: 21.6 V DC to 250 V DC, 96 V AC to 250 V AC
- Current consumption: ≤10 mA
- Switching output: MOSFET, dark switching
- Output current max: ≤100 mA
- Response time: ≤0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Cable with male micro connector, 4-pin, 150 mm
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP67, IP69K
- Operating temperature: -40°C to +70°C
- Storage temperature: -40°C to +75°C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 46mm x 34mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter
- MOSFET switching output with dark switching mode
- High switching frequency of 1,000 Hz
- IP67 and IP69K rated for robust protection
- Wide ambient operating temperature range from -40°C to +70°C
- Cable with male micro connector, 4-pin, 150 mm length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and secure mounting according to industrial safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤10 mA current draw
- Durable housing reduces waste through extended product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK HSE18-M5B2AB Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
