Through-Beam Photoelectric Sensor | 20m Sensing Range | IP67 Rated | LED Light Source | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 20 meters and a robust IP67 rated enclosure for dust and water protection. With a high switching frequency of 1,000 Hz and an adjustable sensitivity potentiometer, this sensor is perfect for object detection in manufacturing and safety systems, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 20 m (max 33 m)
- Light source: LED, visible red light, wavelength 632 nm
- Light spot size at 12 m: Ø 850 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: ≤ 15 mA, receiver: ≤ 20 mA
- Switching output: NPN, light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 3-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic (ABS/PC/POM), optics: PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Includes 2 stainless steel mounting brackets
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 20 meters, max 33 meters
- Rectangular housing design with LED light source
- Adjustable sensitivity via 270° potentiometer
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Robust plastic housing with stainless steel mounting brackets
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

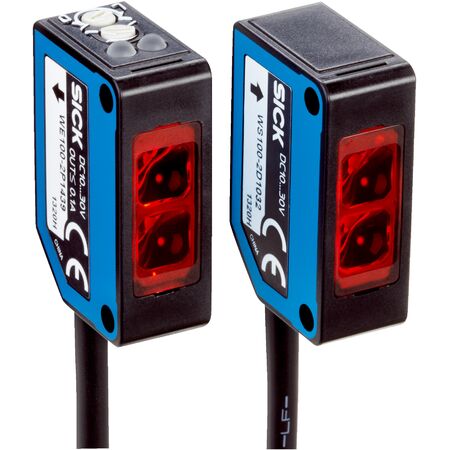

The SICK WS/WE100-2N1439S07 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
