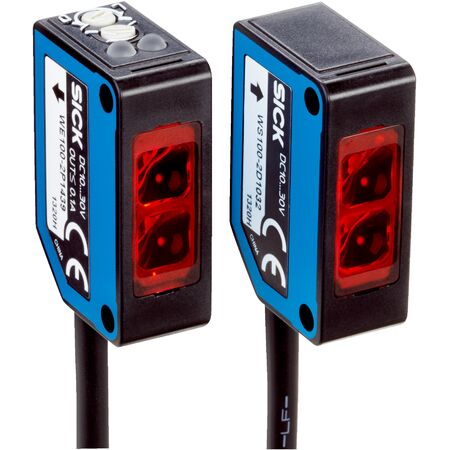

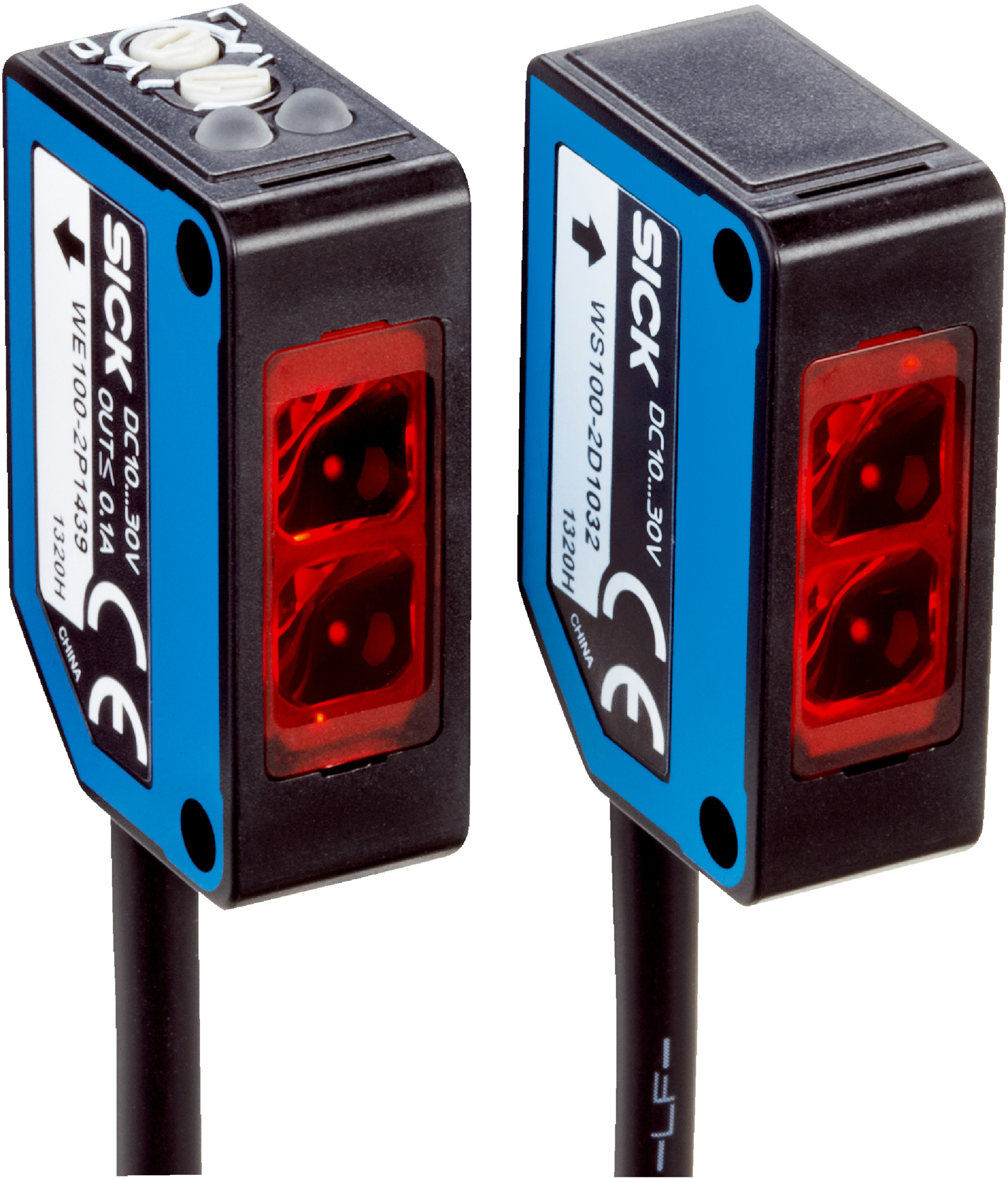

Through-Beam Photoelectric Sensor WS/WE100-2P1439 | 20m Sensing Range | IP67 Enclosure | by SICK
The Through-Beam Photoelectric Sensor WS/WE100-2P1439 is designed for industrial automation, featuring a sensing range of up to 20 meters and a fast response time of ≤ 0.5 ms. With its durable IP67-rated housing and visible red LED light source, this sensor is perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 20 m (max 33 m)
- Light source: Visible red LED, wavelength 632 nm
- Light spot size: Ø 850 mm at 12 m
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 15 mA (sender), ≤ 20 mA (receiver)
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 3-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Includes 2 stainless steel mounting brackets
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 20 m, max 33 m
- Rectangular housing design with IP67 enclosure rating
- Adjustable sensitivity via 270° potentiometer
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Durable plastic housing (ABS/PC/POM) and optics (PMMA)
- Includes stainless steel mounting brackets
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 15 mA sender and ≤ 20 mA receiver
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WS/WE100-2P1439 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
