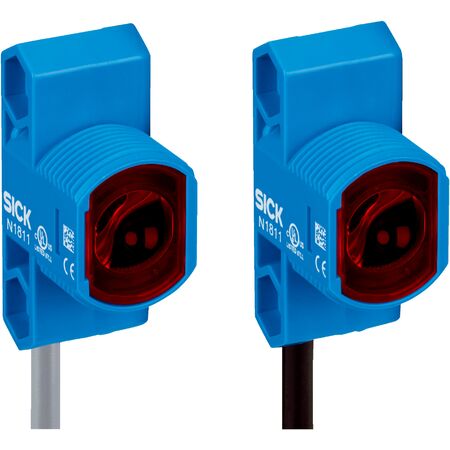

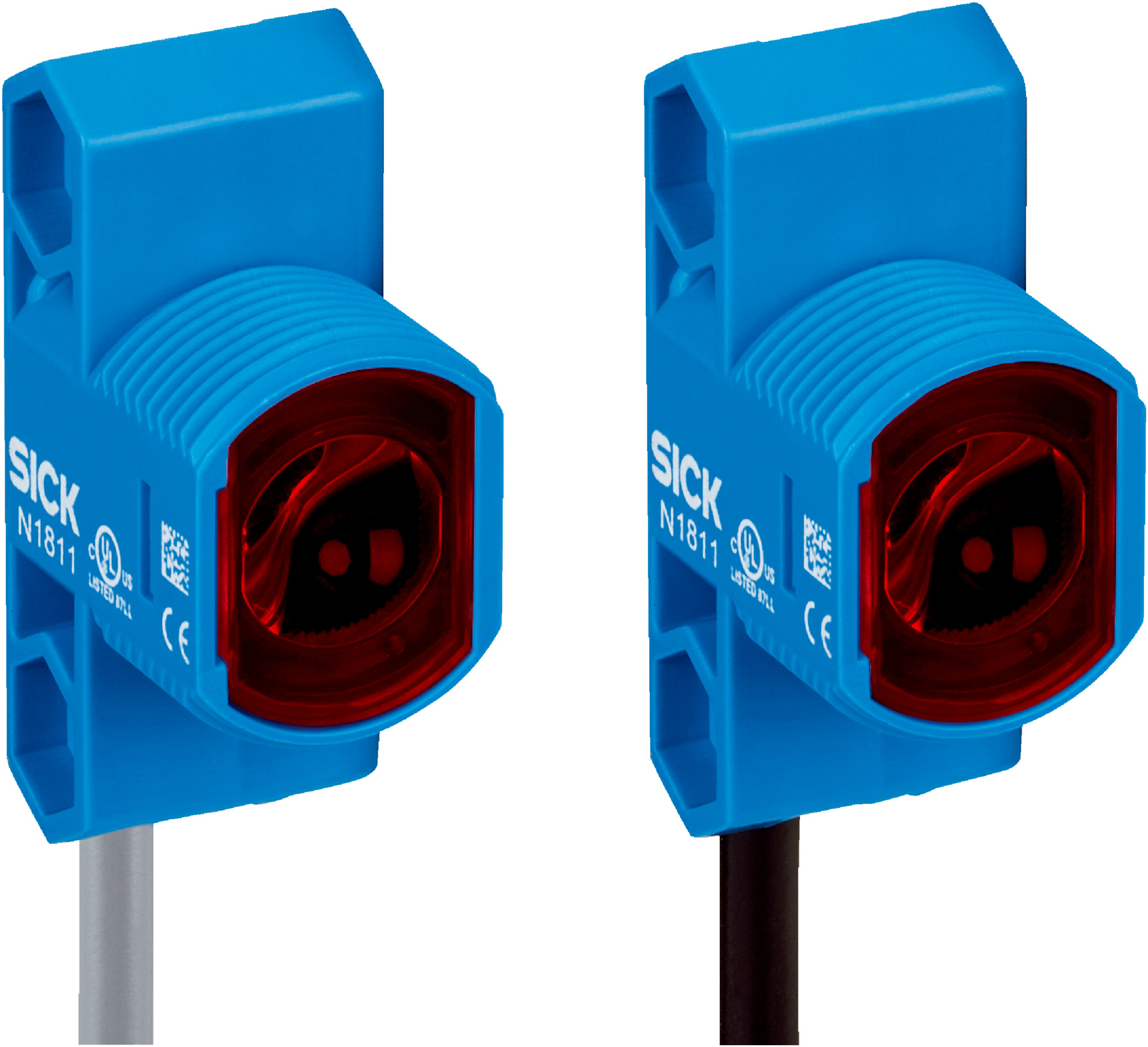

Through-Beam Photoelectric Sensor ZSE18-2AB5B8 | 22m Sensing Range | IP67 Rated | Fast Response Time | by SICK
The ZSE18-2AB5B8 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 22 meters with a visible red LED light source. With a high switching frequency of 1,000 kHz and a fast response time of ≤ 500 µs, it ensures reliable object detection in various applications, including manufacturing process control and safety systems. Its durable IP67 rated housing provides excellent protection against dust and water, making it ideal for challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 22 m
- Light source: Visible red LED, wavelength 625 nm
- Housing design: Hybrid with M18 thread diameter
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN, light and dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Cable with male M8 4-pin connector, 150 mm length
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Dimensions (H x L x W): 34.8mm x 21.9mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red LED light source
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter
- Push-pull PNP/NPN switching outputs with light and dark switching modes
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product lifespan
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZSE18-2AB5B8 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
