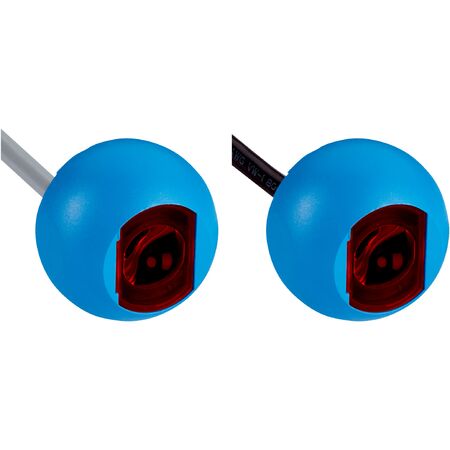

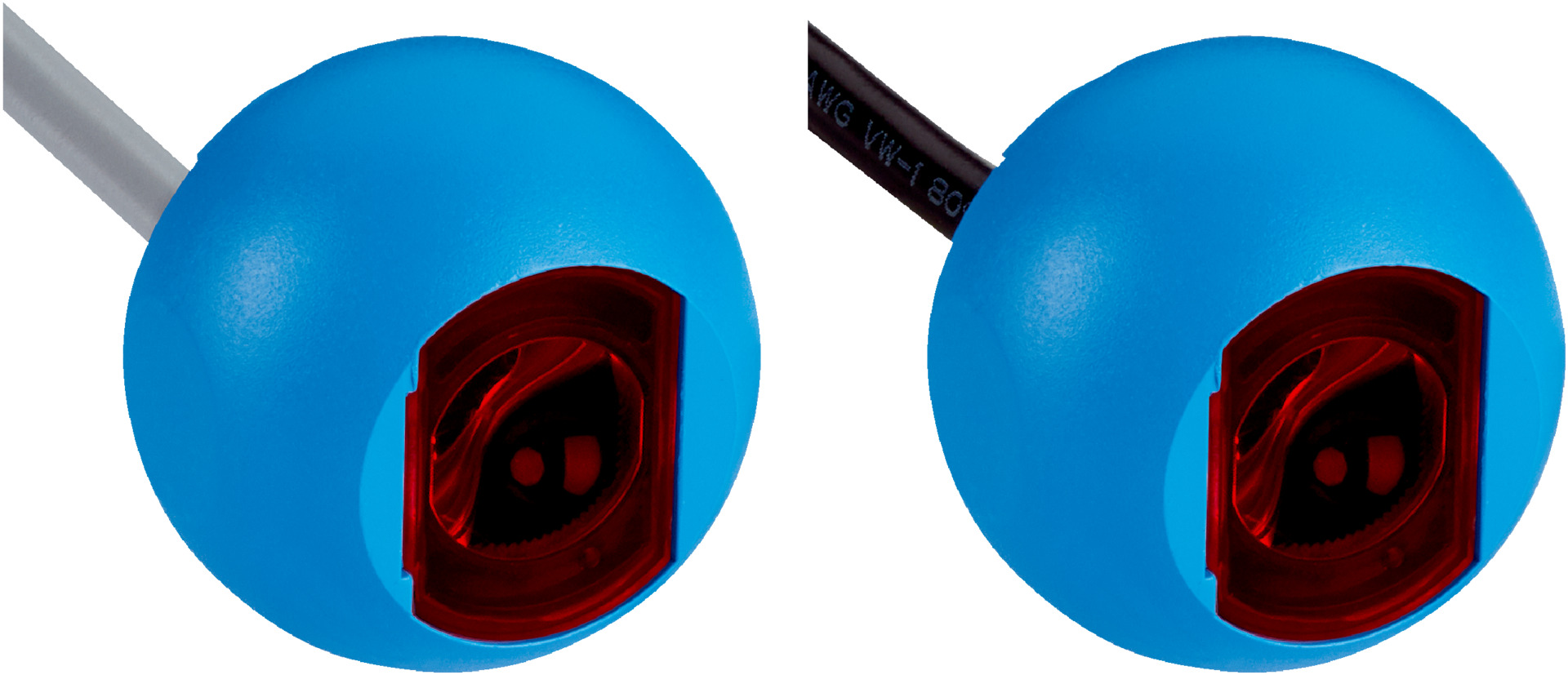

Through-Beam Photoelectric Sensor ZSE18-8AB4B8 | 22m Sensing Range | IP67 Rated | Fast Response Time | by SICK
The ZSE18-8AB4B8 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 22 meters with a visible red LED light source. With a high switching frequency of 1,000 kHz and a fast response time of ≤ 500 µs, it ensures reliable object detection and safety monitoring in manufacturing processes. Its durable IP67 rated housing provides excellent protection against dust and water, making it ideal for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 22 m
- Light source: LED, visible red light at 625 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN with light and dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Cable with M12 male connector, 4-pin, 150 mm
- Housing material: Plastic ABS, Optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 24mm x 26mm x 23mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red LED light source
- Sensing range up to 20 meters
- Hybrid housing design in blue color
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from -40°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZSE18-8AB4B8 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
