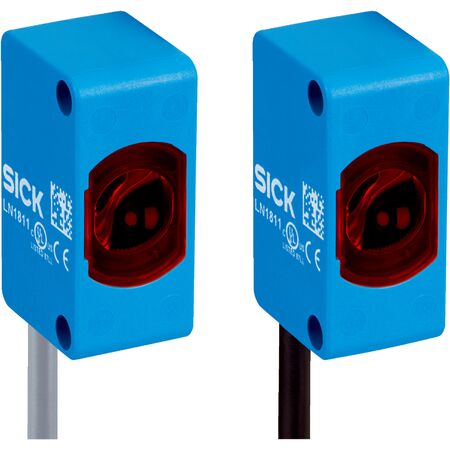

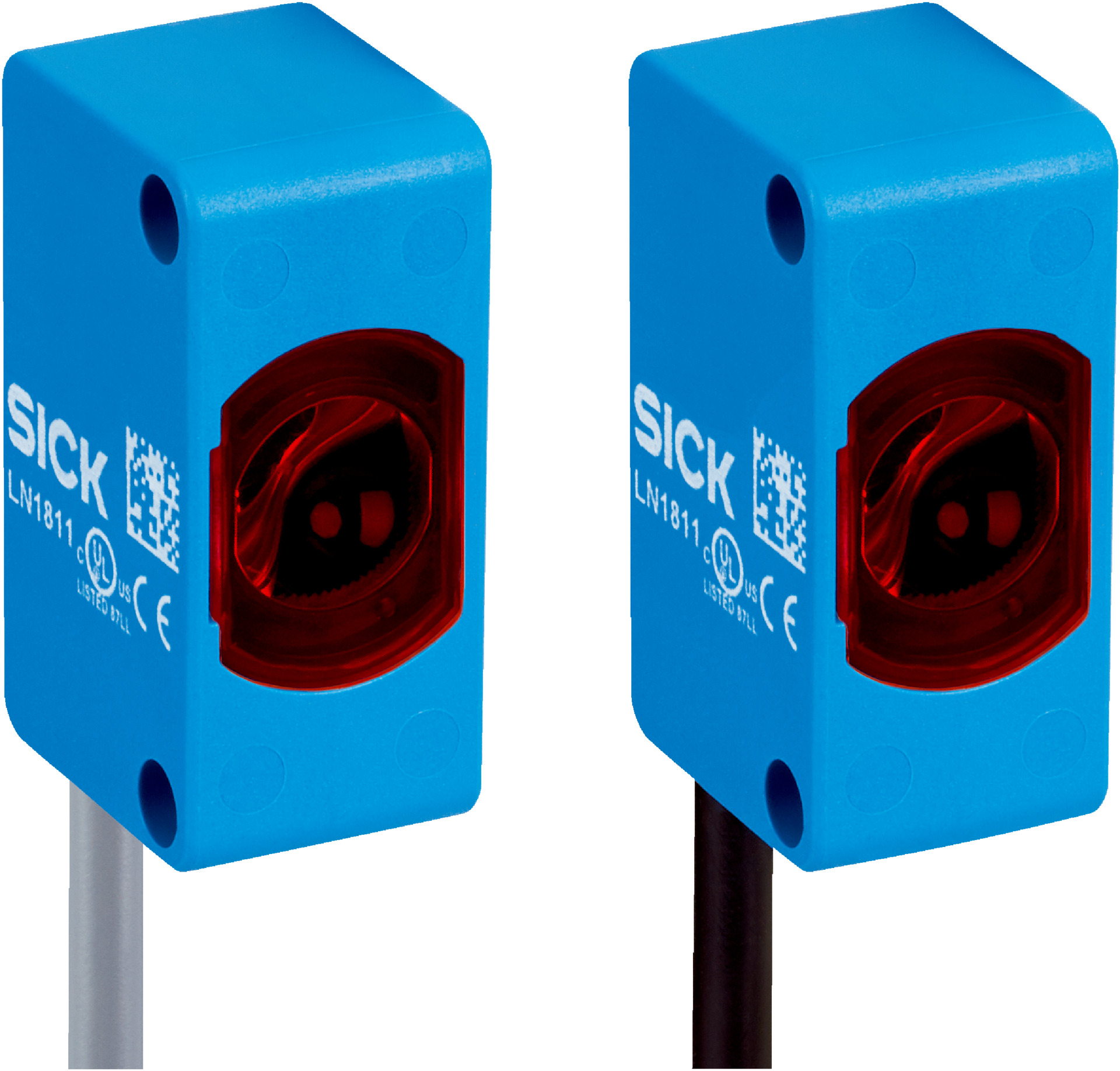

Through-Beam Photoelectric Sensor ZSE18-7AB3B8 | 22m Sensing Range | IP67 Rated | Fast Response Time | by SICK
The ZSE18-7AB3B8 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 22 meters with a visible red LED light source. With a high switching frequency of 1000 kHz and an IP67 rated enclosure, it ensures reliable performance in demanding environments. Ideal for object detection and safety monitoring in manufacturing lines, this sensor is built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 22 m
- Type of light: Visible red light (625 nm wavelength)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN with light and dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 kHz
- Connection type: Cable with M8 male connector, 4-pin, 150 mm
- Cable material: Plastic, PVC
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31mm x 22.4mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red LED light source
- Sensing range up to 20 meters
- Hybrid housing design in blue color
- Side mounting system for easy installation
- Push-pull PNP/NPN switching outputs with light and dark switching modes
- High switching frequency of 1000 kHz and fast response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from -40°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZSE18-7AB3B8 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
