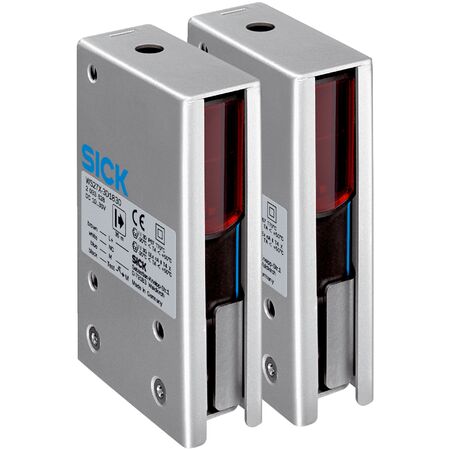

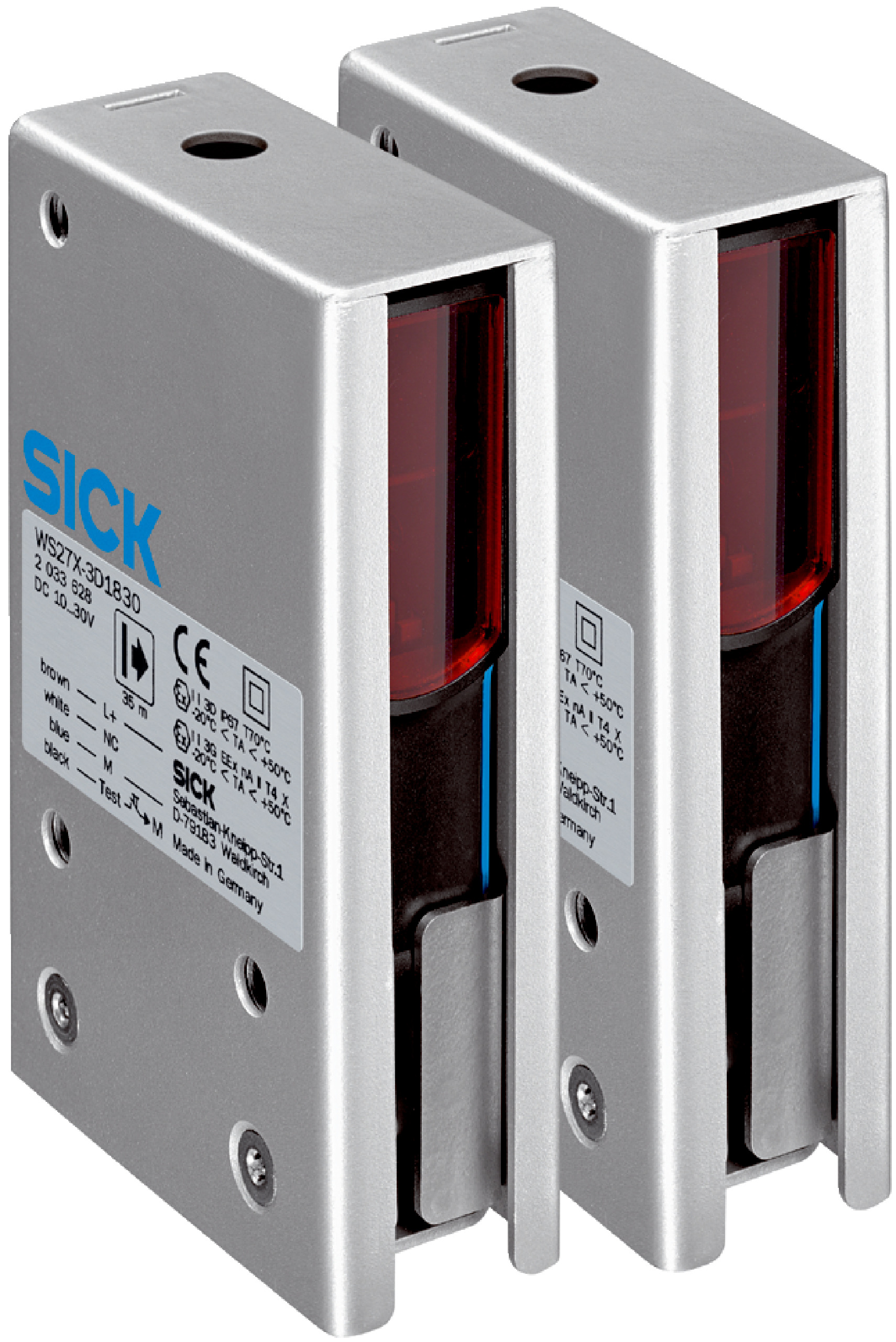

Through-Beam Photoelectric Sensor WSE27X-3P1830S01 | 25m Sensing Range | IP64 Rated | by SICK
The WSE27X-3P1830S01 through-beam photoelectric sensor is designed for industrial automation, offering a sensing range of up to 25 meters and a high switching frequency of 1,000 Hz. With its robust stainless steel housing and IP64 rating, it's perfect for safety monitoring in explosive environments, ensuring reliable performance in material handling and packaging systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 25 m (max 35 m)
- Light source: Visible red LED, wavelength 645 nm
- Focus and angle of dispersion: Approx. 1.5°
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: 35 mA, receiver: 20 mA
- Switching output: PNP, complementary, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 10 m, PVC
- Protection class: II, enclosure rating IP64
- Housing material: Stainless steel V2A and ABS plastic
- Operating temperature: -20 °C to +50 °C
- Certifications: ATEX II 3G Ex nA op is IIB T4 Gc X, IECEx, CCC, cULus
- Dimensions (H x L x W): 112.3mm x 70.4mm x 31.4mm
- Weight: 1.5 kg
Key Features
- Through-beam photoelectric sensor with visible red light LED
- Sensing range up to 25 m, max 35 m
- Rectangular metal and ABS housing with IP64 enclosure rating
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- Certified for use in explosive atmospheres (ATEX and IECEx certified)
- Robust stainless steel V2A housing and plastic optics
- Cable connection with 4-wire, 10 m PVC cable
- Protection class II with circuit protection
- Operating temperature range from -20 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards, especially for use in explosive atmospheres.
Applications
- Industrial automation for object detection
- Safety monitoring in explosive areas
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable stainless steel housing reduces replacement frequency and waste
- Certified compliance with environmental and safety standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WSE27X-3P1830S01 through-beam photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety applications in hazardous environments.
