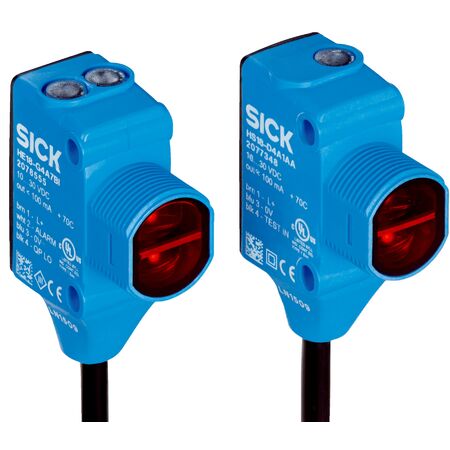

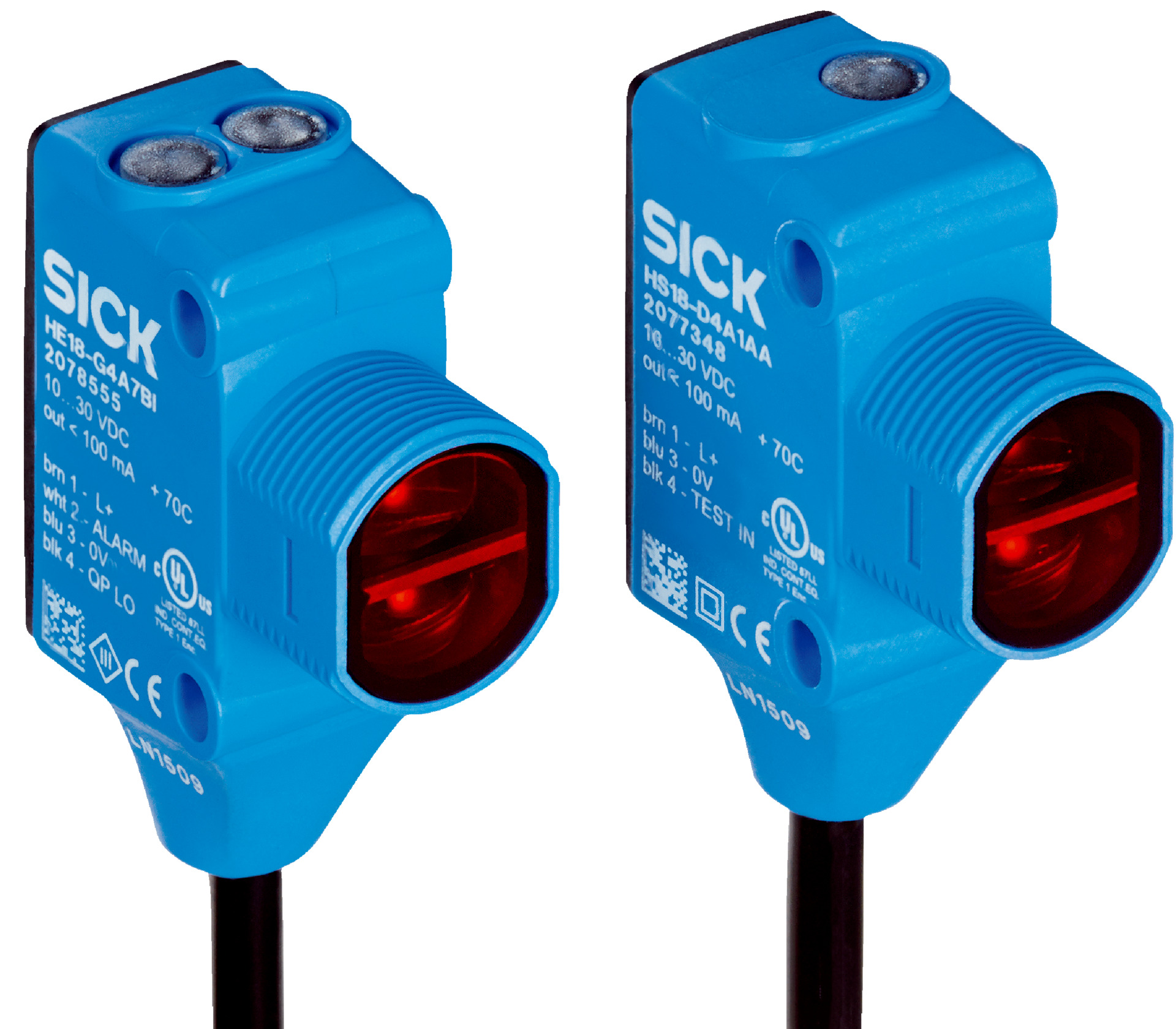

Through-Beam Photoelectric Sensor HSE18-P1G2BA | 25m Sensing Range | IP67 & IP69K Rated | by SICK
The HSE18-P1G2BA Through-beam Photoelectric Sensor is designed for industrial automation, offering a maximum sensing range of 25 meters and a high switching frequency of 1000 Hz. With its durable IP67 and IP69K rated housing, this sensor ensures reliable performance in harsh environments, making it ideal for safety and monitoring applications in manufacturing and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 25 m
- Light source: PinPoint LED, wavelength 631 nm
- Switching output: PNP complementary with light/dark switching
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Current consumption: ≤ 20 mA
- Output current max: ≤ 100 mA
- Connection type: Cable open end, 2 m, PVC
- Protection class: III
- Enclosure rating: IP67, IP69K
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Operating temperature: -40°C to +70°C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 45.5mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter
- Signal strength light bar for easy alignment
- High switching frequency of 1000 Hz
- IP67 and IP69K rated for dust and water protection
- Operating temperature range from -40°C to +70°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable housing reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK HSE18-P1G2BA Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
