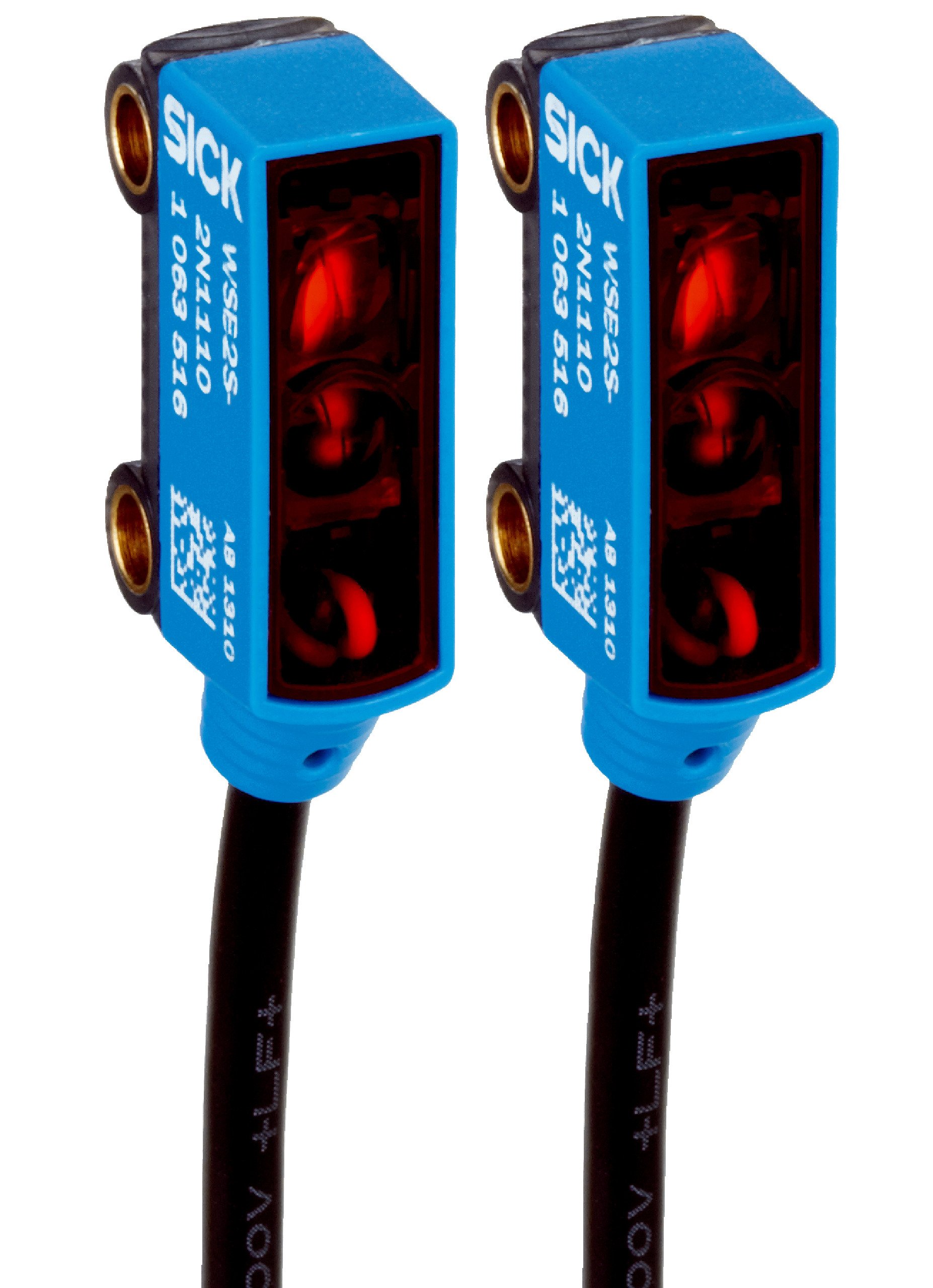

Through-Beam Photoelectric Sensor | 2.5m Sensing Range | IP67 Rated | PNP Output | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 2.5 meters and a visible red light source. With a robust IP67 rated housing and a high switching frequency of 1,200 Hz, this sensor is perfect for object detection and safety monitoring in manufacturing processes. Built for reliability, it operates efficiently in temperatures ranging from -25°C to +50°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 2.5 m
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size at 1500 mm: Ø 65 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Dark switching
- Output current max: ≤ 50 mA
- Response time: < 0.4 ms
- Switching frequency: 1,200 Hz
- Connection type: Cable with M8 connector, 3-pin, 700 mm
- Cable material: Plastic, PVC
- Circuit protection: A, B, D
- Housing material: Plastic, ABS/PC
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- UL File No.: NRKH.E181493
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 2.5 meters
- PinPoint LED light source with 640 nm wavelength
- Dark switching mode with PNP output
- High switching frequency of 1,200 Hz
- Robust plastic housing with IP67 rating
- Operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE2S-2F3030S01 Through-beam Photoelectric Sensor is available for immediate purchase. Ideal for industrial automation and safety applications.
