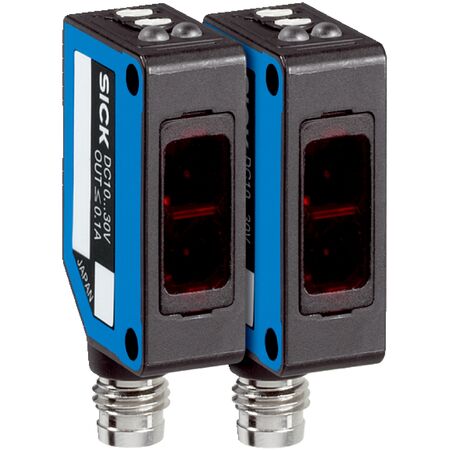

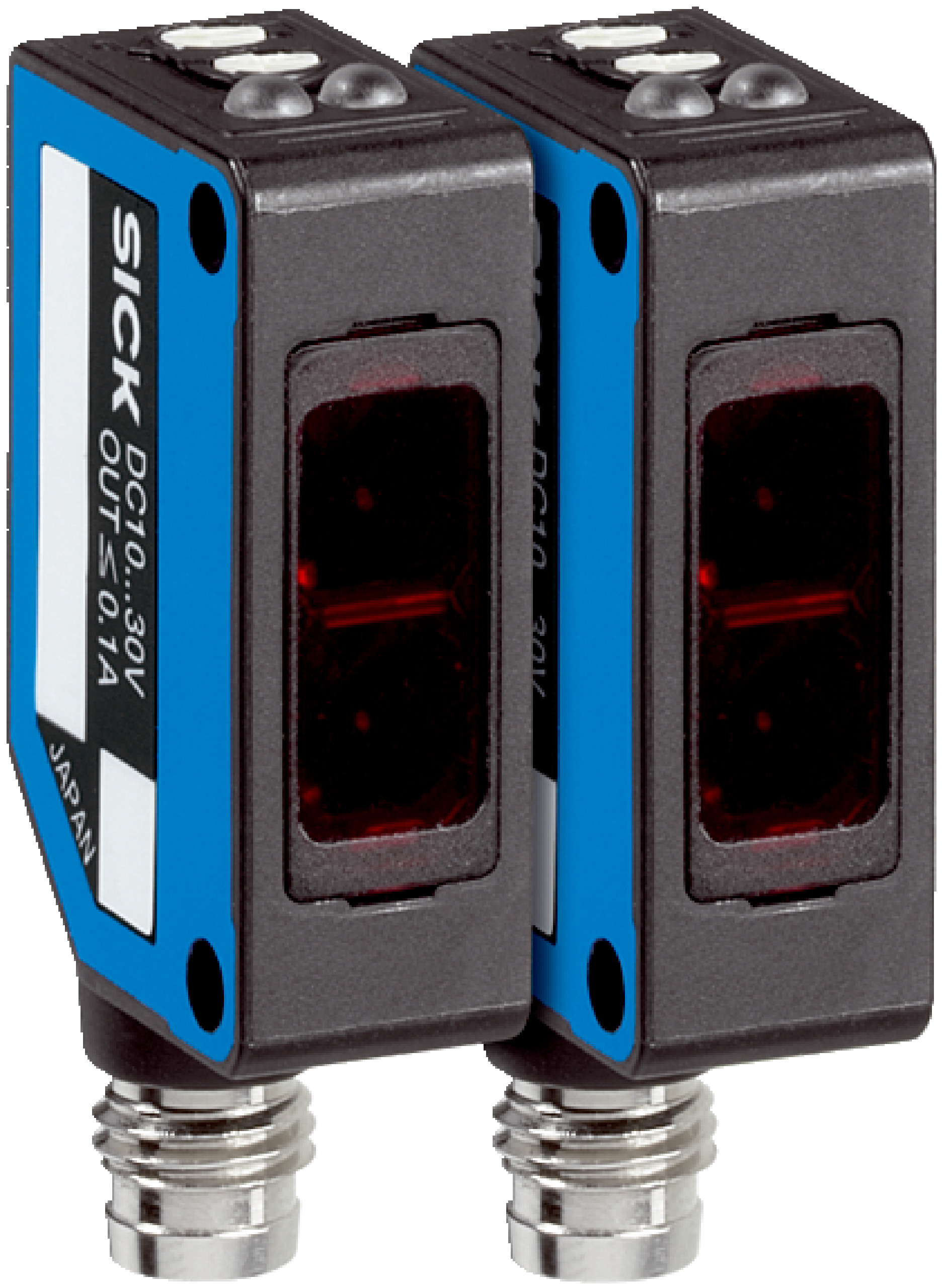

Through-beam Photoelectric Sensor WS/WE100L-E2131 | 35m Sensing Range | IP65 Rated | Adjustable Potentiometer | by SICK
The WS/WE100L-E2131 Through-beam Photoelectric Sensor is designed for high-speed object detection in industrial automation. With a sensing range of up to 35 meters and a robust IP65 enclosure, it ensures reliable performance in various environments. Featuring a visible red laser light and adjustable potentiometer, this sensor is perfect for detecting small objects in manufacturing processes, making it an essential tool for efficiency and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 35 m
- Type of light: Visible red light
- Light source: Laser, wavelength 650 nm, Laser class 1
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: ≤ 15 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: NPN
- Switching mode: Light/dark switching selectable
- Response time: < 0.25 ms
- Switching frequency: 2000 Hz
- Connection type: Connector M8, 3-pin
- Circuit protection: Types A, B, D
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP65
- Operating temperature: –10 °C to +50 °C
- Storage temperature: –40 °C to +70 °C
- Weight: 10 g
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 30 meters
- Rectangular housing design with IP65 enclosure rating
- Adjustable potentiometer with 270° rotation
- High switching frequency of 2000 Hz
- Light/dark switching mode selectable via rotary switch
- Robust plastic housing with stainless steel mounting brackets included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper alignment and electrical connections.
Applications
- Industrial automation for object detection
- High-speed object detection
- Small object detection in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient laser light source
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WS/WE100L-E2131 Through-beam Photoelectric Sensor is available now for immediate purchase. Ideal for industrial automation and object detection applications.
