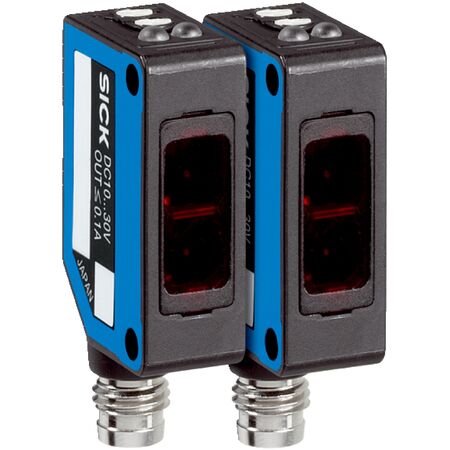

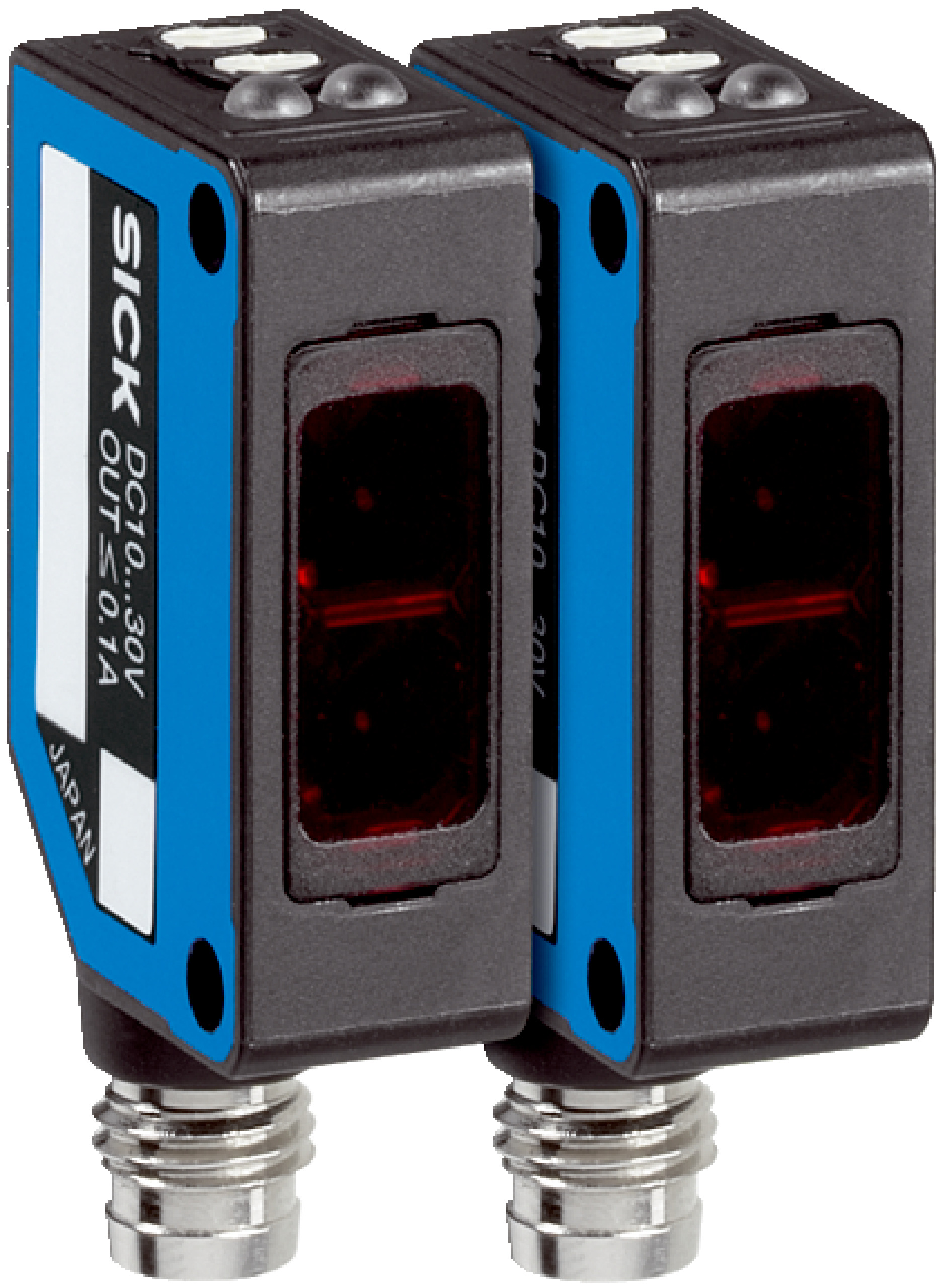

Through-beam Photoelectric Sensor WS/WE100L-F1131 | 35m Sensing Range | IP65 Rated | Fast Response Time | by SICK
The WS/WE100L-F1131 Through-beam Photoelectric Sensor is designed for high-speed object detection in industrial automation. With a sensing range of up to 35 meters and a fast response time of under 0.25 ms, it ensures reliable performance. Featuring a durable IP65-rated housing and adjustable potentiometer, this sensor is perfect for various manufacturing processes and applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 35 m
- Type of light: Visible red light, wavelength 650 nm
- Laser class: 1
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: ≤ 15 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: < 0.25 ms
- Switching frequency: 2000 Hz
- Connection type: 3-wire cable, 2 m length
- Housing material: Plastic ABS/PC/POM
- Optics material: Plastic PMMA
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 30 meters
- Rectangular housing design with IP65 rating
- Adjustable potentiometer with 270° rotation
- Fast response time under 0.25 ms
- Selectable light/dark switching mode
- Durable plastic housing with stainless steel mounting brackets
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection.
Applications
- Industrial automation for object detection
- High-speed object detection
- Small object detection in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient laser light source
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK WS/WE100L-F1131 Through-beam Photoelectric Sensor is available now for immediate purchase. Ideal for industrial automation and object detection applications.
