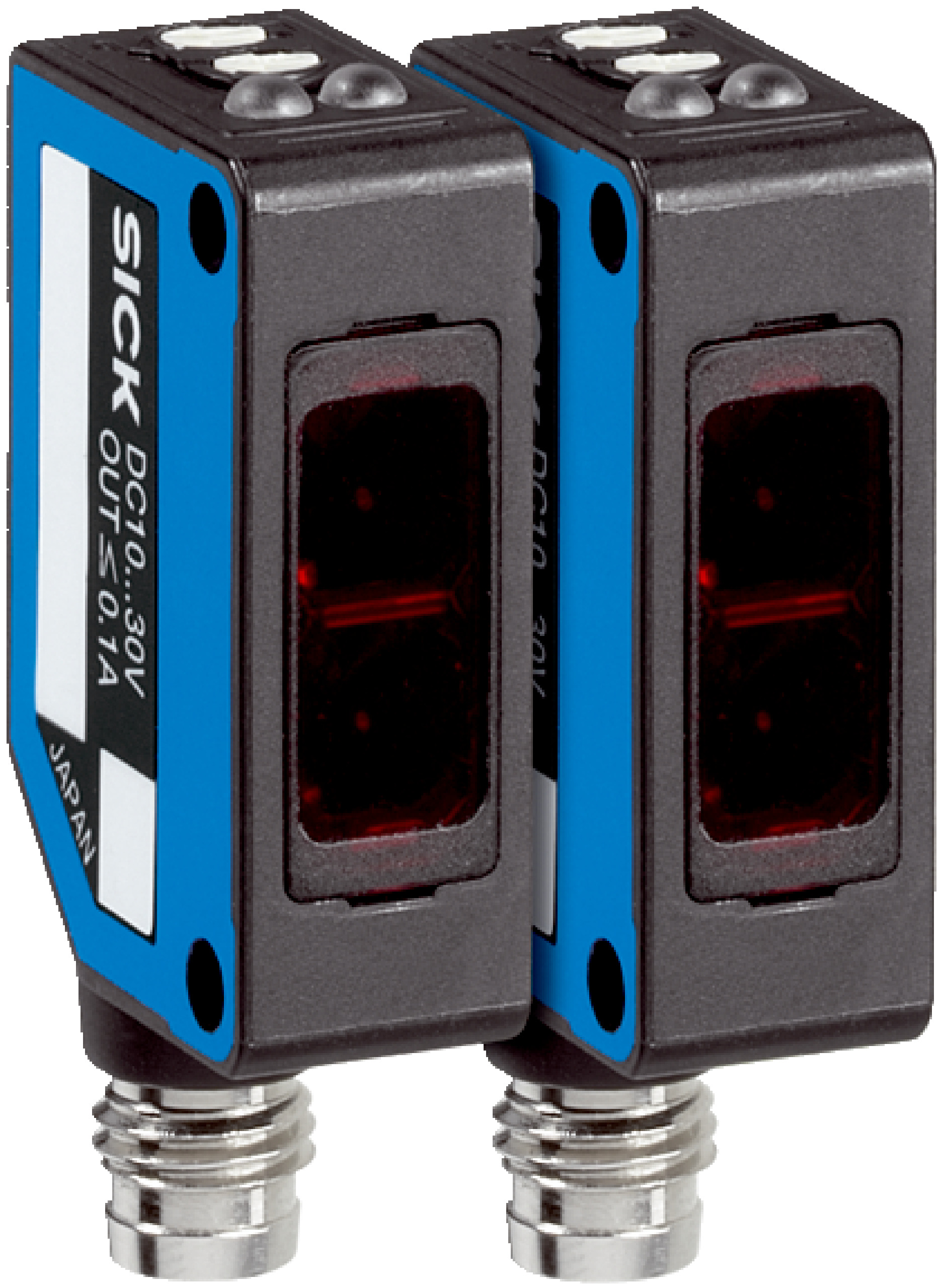

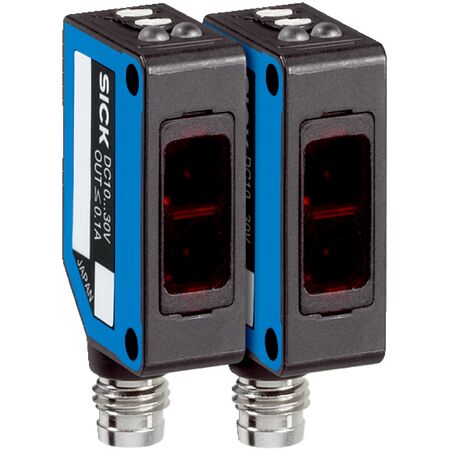

Through-Beam Photoelectric Sensor WS/WE100L-F2231 | 35m Sensing Range | IP65 Enclosure | by SICK
The WS/WE100L-F2231 Through-beam Photoelectric Sensor is designed for high-speed object detection in industrial automation. With a sensing range of up to 35 meters and a robust IP65 enclosure, it ensures reliable performance in various environments. Ideal for manufacturing processes, this sensor features a visible red laser light and a high switching frequency of 2000 Hz, making it perfect for small object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 35 m
- Type of light: Visible red light, Laser class 1
- Light spot size at 30 m: Ø 30 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: ≤ 15 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Response time: < 0.25 ms
- Switching frequency: 2000 Hz
- Connection type: Male connector M8, 4-pin
- Circuit protection: A, B, D
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 30 meters
- Rectangular housing design with IP65 enclosure rating
- Adjustable potentiometer with 270° rotation
- High switching frequency of 2000 Hz
- Light/dark switching mode selectable via rotary switch
- Robust plastic housing (ABS/PC) and optics (PMMA)
- Includes stainless steel mounting brackets
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- High-speed object detection
- Small object detection in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with ≤15 mA sender and ≤20 mA receiver
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WS/WE100L-F2231 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
