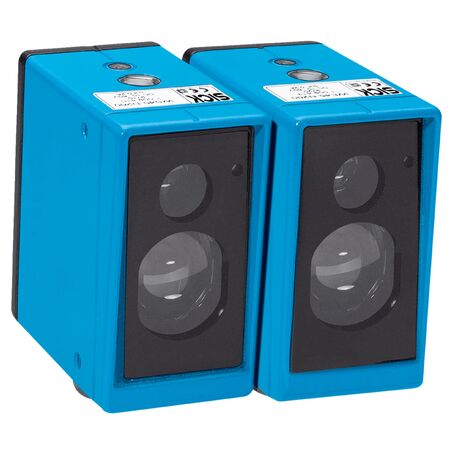

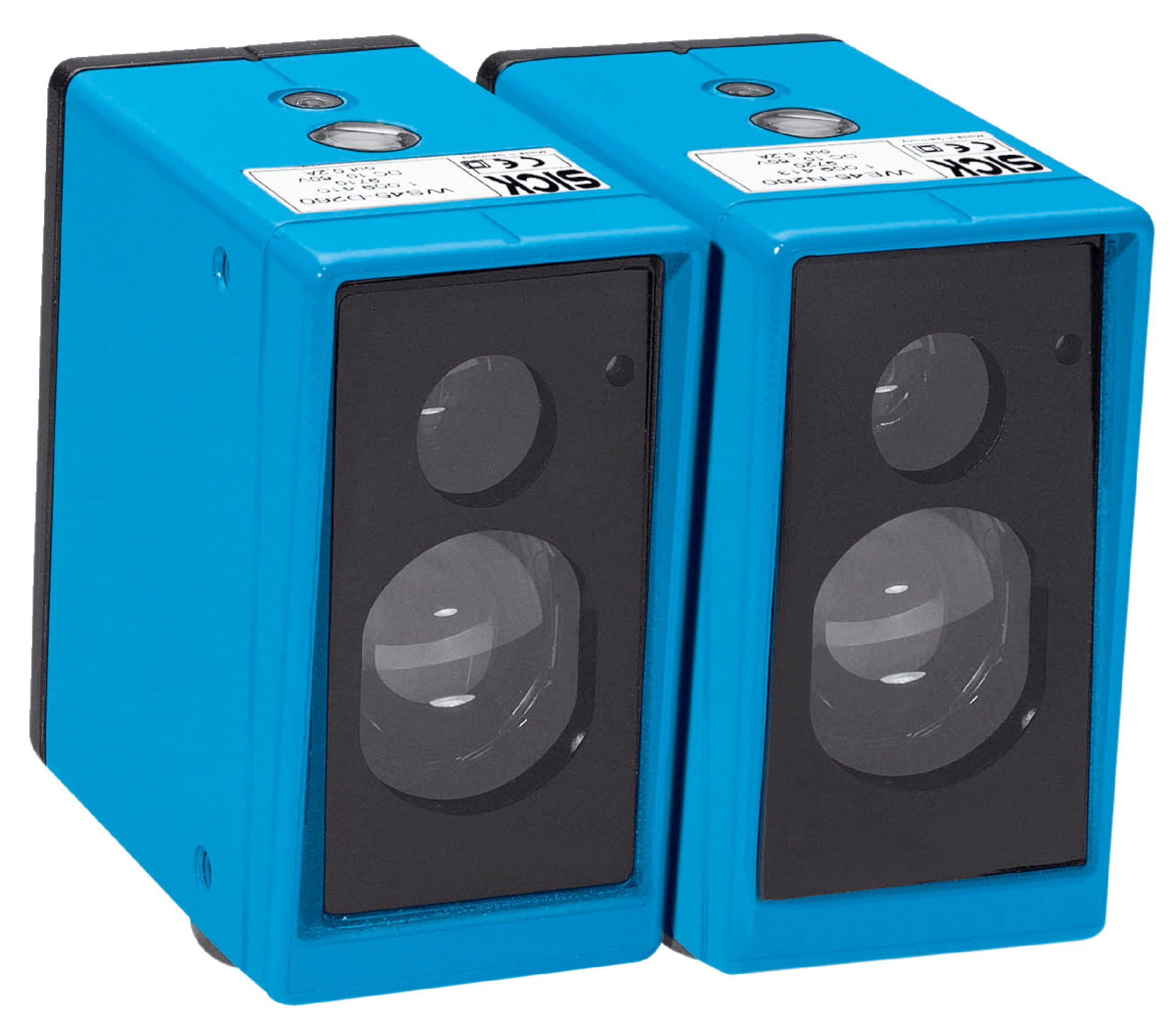

Through-Beam Photoelectric Sensor WS/WE45-P260S01 | 35m Sensing Range | IP67 Enclosure | by SICK
The Through-Beam Photoelectric Sensor WS/WE45-P260S01 is designed for industrial automation, featuring a sensing range of up to 35 meters and a visible red LED light source. With an IP67 enclosure rating and adjustable potentiometer for sensitivity, it’s perfect for detecting hot objects and ensuring safety in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WS/WE45-P260S01 | 35m Sensing Range | IP67 Enclosure | by SICK
Brand: SICK
SKU: 1016031
Alternatively Known As: Through-beam photoelectric sensor, SICK WS45 sensor, WS/WE45-P260S01 sensor, industrial photoelectric sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 35 m
- Type of light: Visible red light
- Light source: LED
- Light spot size at 35 m: Ø 560 mm
- Adjustment: Potentiometer
- Supply voltage: 10 V DC to 60 V DC
- Power consumption sender: 50 mA
- Power consumption receiver: 50 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 200 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Time functions: Switch-on delay, off delay, ON and OFF delay
- Delay time: Adjustable 0.015 s to 12 s
- Connection type: Terminal connection with PG13.5, 6-pin
- Circuit protection: Types A, C, D
- Protection class: I
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Ambient storage temperature: -40 °C to +70 °C
- Weight: 1.6 kg
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 1.6 kg
Key Features
- Through-beam photoelectric sensor with visible red LED light source
- Sensing range up to 35 meters
- Rectangular metal housing with IP67 enclosure rating
- Adjustable potentiometer for sensitivity and delay time
- Light/dark switching mode with complementary PNP output
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- Special feature for detecting hot objects > 800 °C surface temperature
- Protection class I and circuit protection options
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detection of hot objects with surface temperatures above 800 °C
- Material handling and processing lines
- Safety and monitoring in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable metal housing reduces waste and extends product life
- Energy-efficient LED light source minimizes power consumption
- High reliability reduces downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WS/WE45-P260S01 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring reliable object detection.
