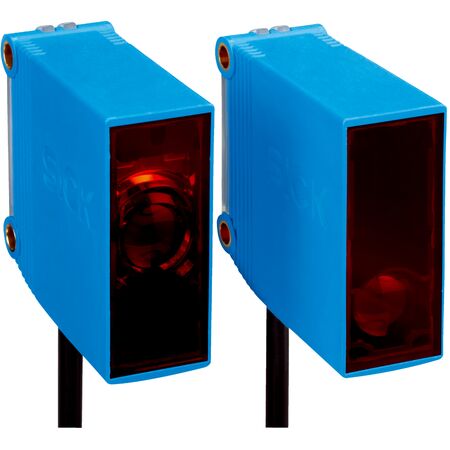

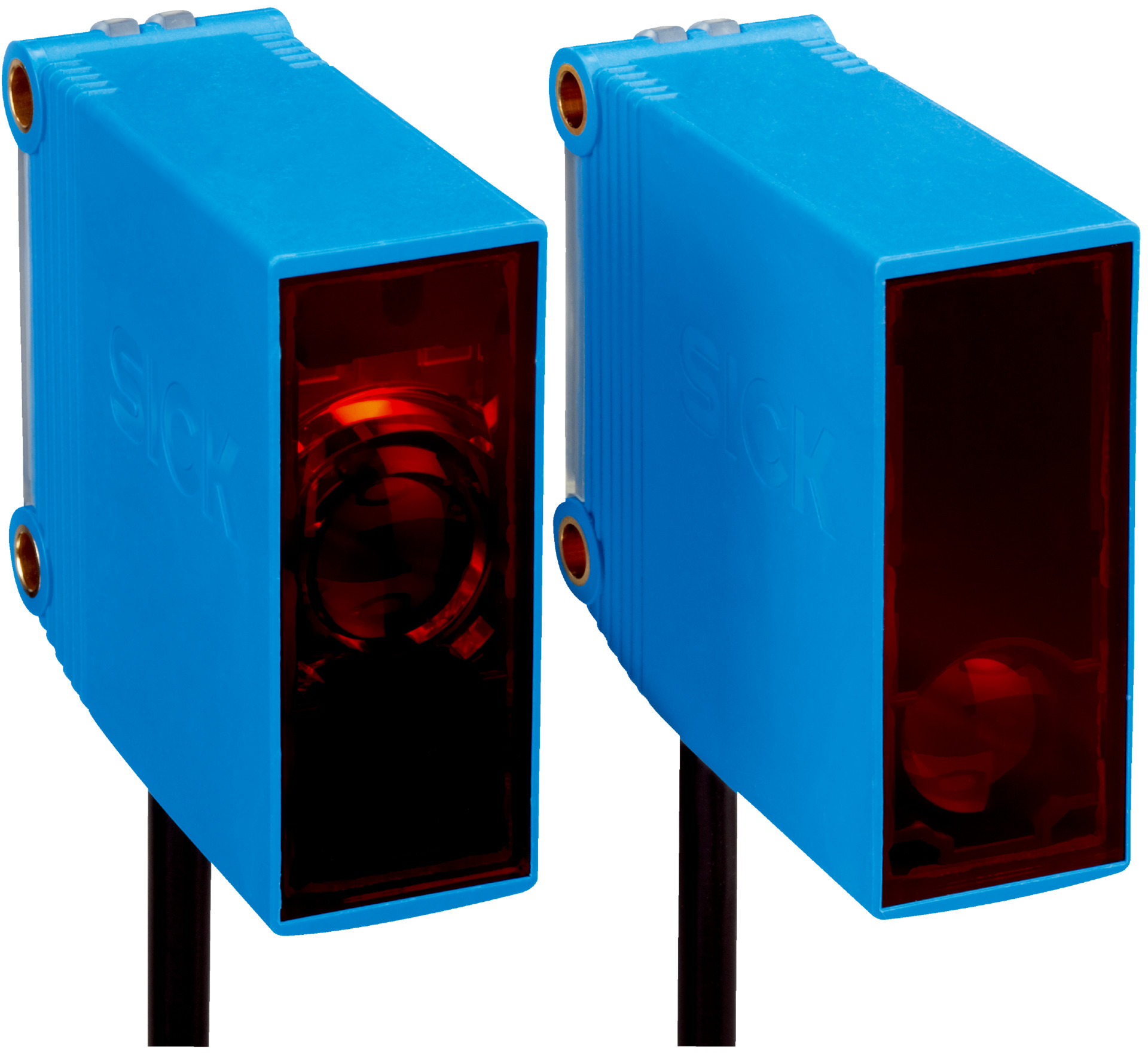

Through-beam Photoelectric Sensor GSE10-R3712 | 35m Sensing Range | IP67 Rated | by SICK
The GSE10-R3712 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 35 meters and a visible red light source. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 40 m
- Sensing range: 0 m to 35 m
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size at 15 m: Ø 180 mm
- Wave length: 625 nm
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Power consumption sender: ≤ 2 VA
- Power consumption receiver: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Switching load max.: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: Cable, 5-wire, 2 m
- Cable material: Plastic, PVC
- Conductor cross section: 0.25 mm²
- Circuit protection: C
- Protection class: II
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Relay switching cycles min.: 100,000 cycles (3 A)
- Usage category: DC-13 and AC-15 according to EN 60947-1
- Electromagnetic compatibility: EN 60947-5-2, EN 61000-6-3
- Ambient operating temperature: -30 °C to +60 °C
- Ambient temperature storage: -40 °C to +70 °C
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.23 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 35 meters
- PinPoint LED light source with 625 nm wavelength
- Relay, SPDT electrically isolated switching output
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +60°C
- Mounting bracket included
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable housing reduces waste through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GSE10-R3712 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
